User Manual for Revo 23" Camera Track Slider with Adjustable Feet Click to enlarge the picture
Contents of the user manual for the Revo 23" Camera Track Slider with
- Product category: Camera Sliders Revo
- Brand: Revo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Revo Camera Sliders
 |
User manual for the Revo 23" Camera Track Slider with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Revo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Revo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Revo product will considerably shorten its lifespan!
|

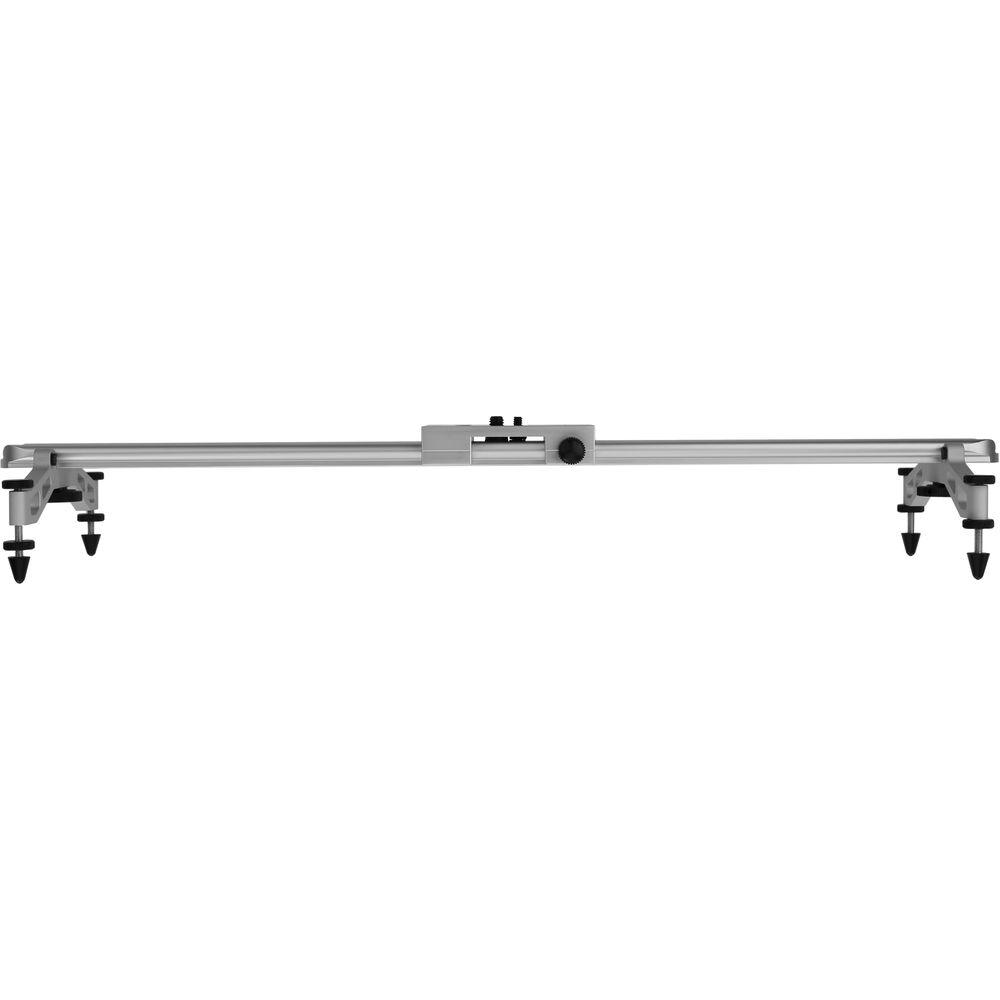

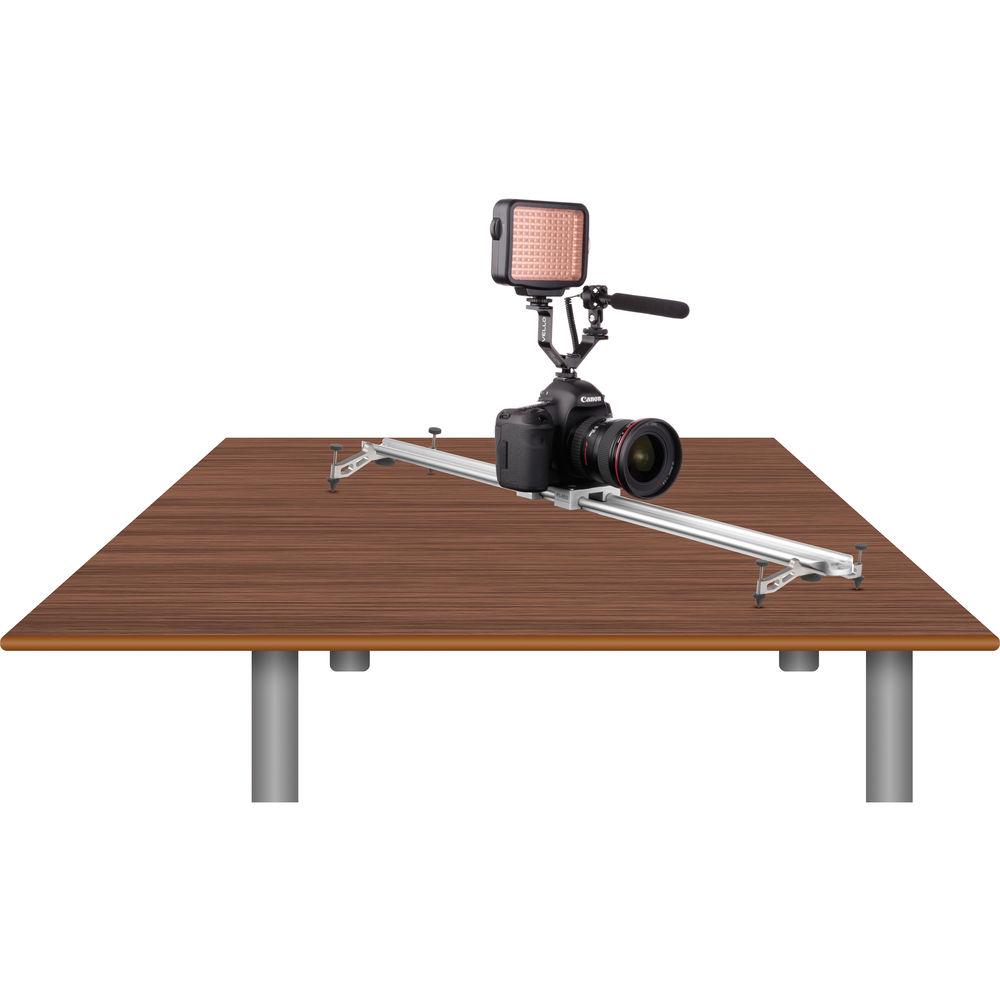

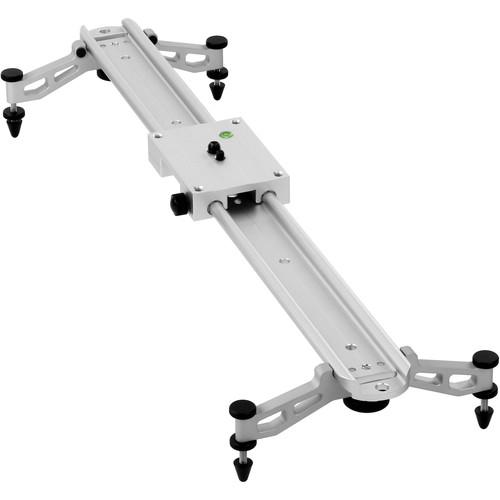

Product description The Revo 23" Camera Track Slider with Adjustable Feet is a sturdy, lightweight, and portable camera slider that lets you to add smooth, short-run tracking- and dolly-type shots to your video productions. It features an aluminum construction and precision-engineered rails that provide smooth and quiet travel across the entire length, supporting rigs up to 21 pounds. The slider comes with a pair of removable legs for ground or table-top mounting, with height-adjustable rubber feet. The legs attach via thumbscrews for tool-less assembly. Combined with an integrated bull's-eye bubble level, the slider is easy to level even on flat or slightly uneven surfaces.

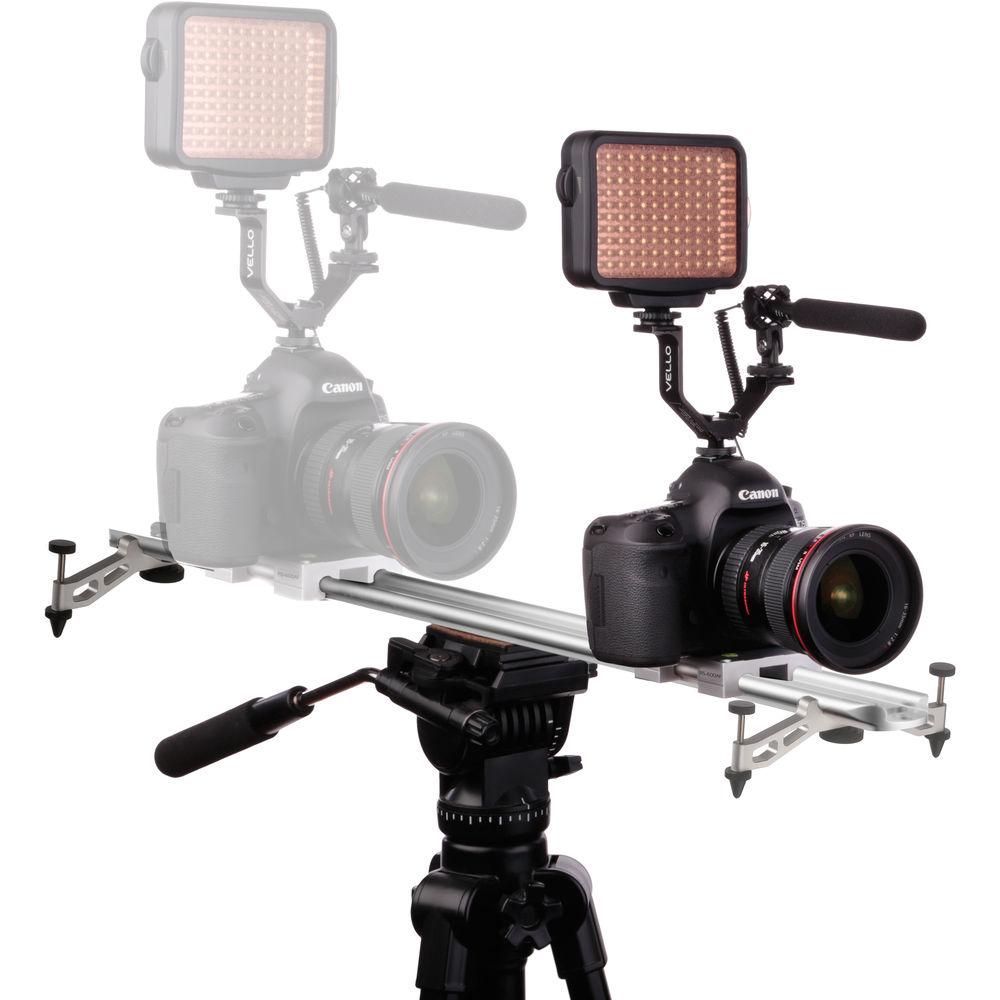

1/4"-20 and 3/8"-16 threaded screw-holes are positioned along the bottom, letting you center-mount the slider on a single tripod. The carriage has removable 1/4"-20 and 3/8"-16 screws for attaching a camera or fluid head, and is itself removable so that you can comfortably attach a camera or tripod head. It also has one 1/4"-20 thread on each top corner so that in addition to a camera you can mount articulating arms with lights and other accessories. A knob on the side of the carriage tightens to keep the carriage locked in place in-between shots. - Key Features
-
- 23" lightweight camera slider for smooth left, right, forward, backward, and slanted slides
- Supports rigs of up to 21 lb
- 1/4"-20 and 3/8"-16 threads along the bottom for tripod mounting
- Removable sliding carriage with 1/4"-20 and 3/8"-16 screws for attaching a camera or tripod head
- Four 1/4"-20 threads on the top of the sliding carriage for mounting articulating arms

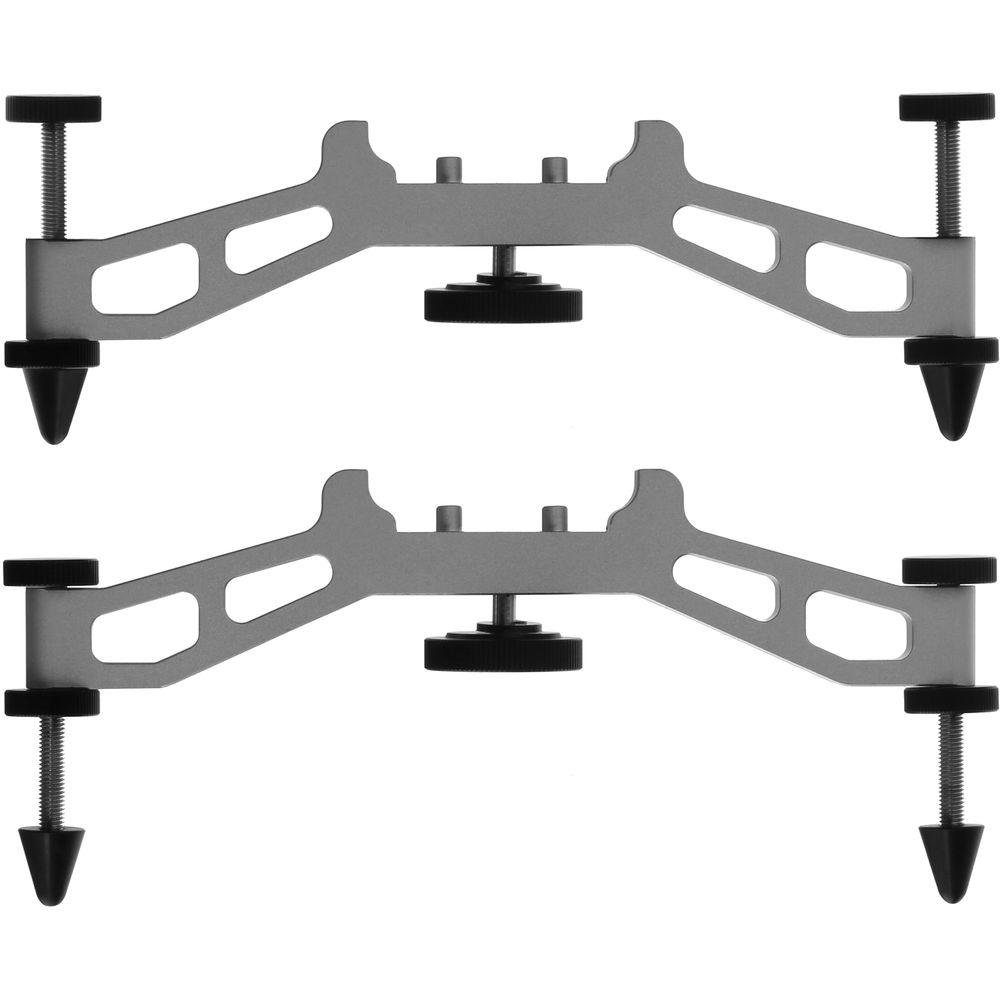

- Removable legs with rubber feet
- Feet individually height-adjustable up to 1/2" for use on lightly uneven surfaces
- Integrated bull's-eye bubble level
UPC: 847628586840 In the Box Revo 23" Camera Track Slider with Adjustable Feet 2 x Legs with Adjustable Feet 1/4"-20 Screw 3/8"-16 Screw Instruction Manual Limited 1-Year Warranty User Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Revo 23" Camera Track Slider with Adjustable Feet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRevo RS-600 Specs | | | Load Capacity | 22 lb / 10 kg | | | | Camera Mounting Screw | 1/4"-20 Male, 3/8"-16 Male | | Accessory Mounting | 4 x 1/4"-20 Female | | Tripod Mounting | 1 x 1/4"-20 Female Thread
1 x 3/8"-16 Female Thread | | | | Body Material | Aluminum | | Track Length | 23" / 58.4 cm | | Track Width | 7.5" / 19.1 cm | | Track Height | 3" / 7.6 cm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 25.9 x 4.6 x 2.7" |
Rating56% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
