User Manual for Revo Camera Track Slider V2 with Adjustable Feet Click to enlarge the picture
Contents of the user manual for the Revo Camera Track Slider V2 with
- Product category: Camera Sliders Revo
- Brand: Revo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Revo Camera Sliders
 |
User manual for the Revo Camera Track Slider V2 with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Revo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Revo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Revo product will considerably shorten its lifespan!
|

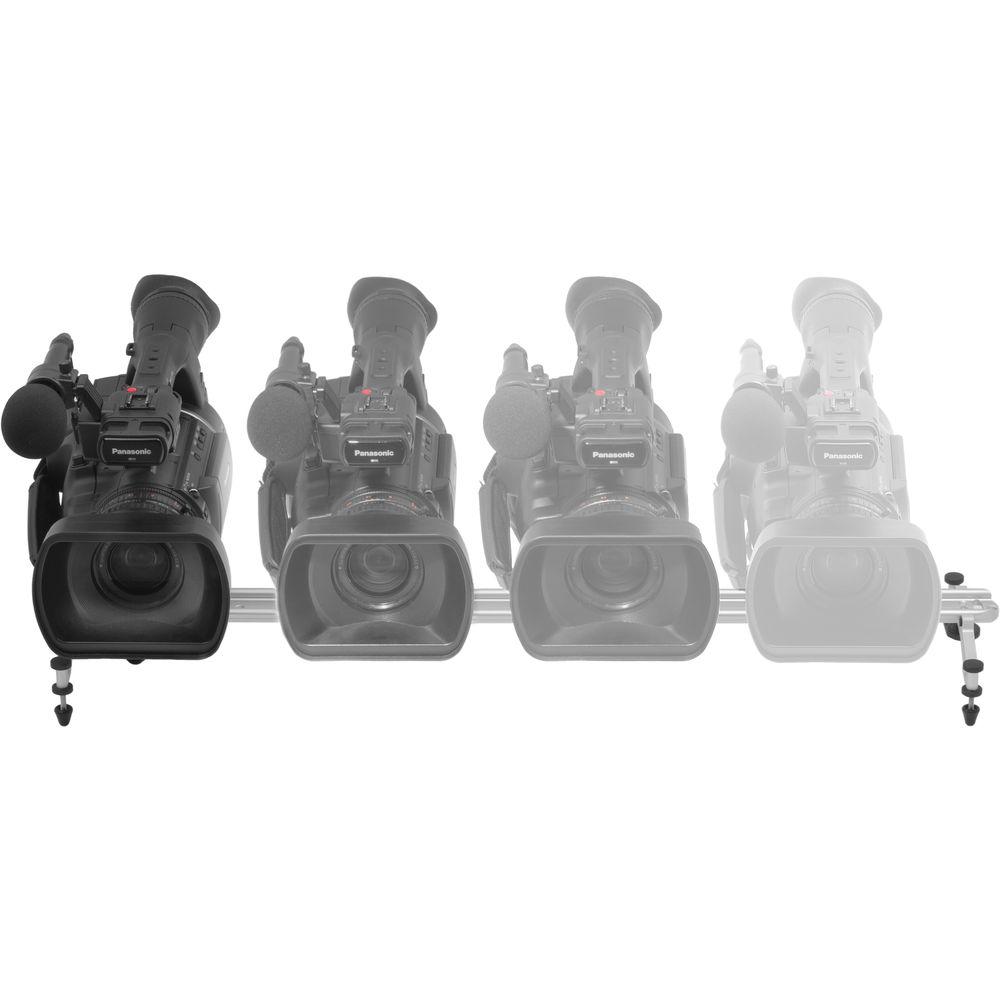

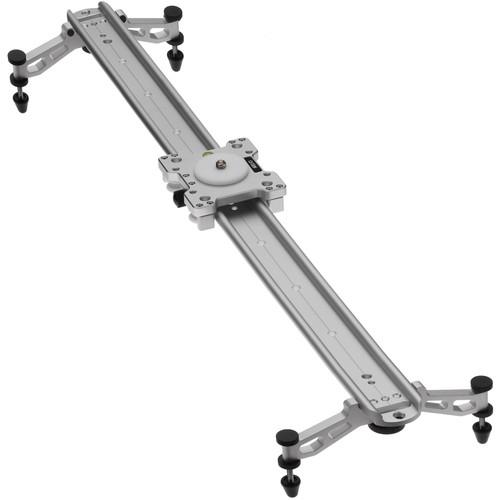

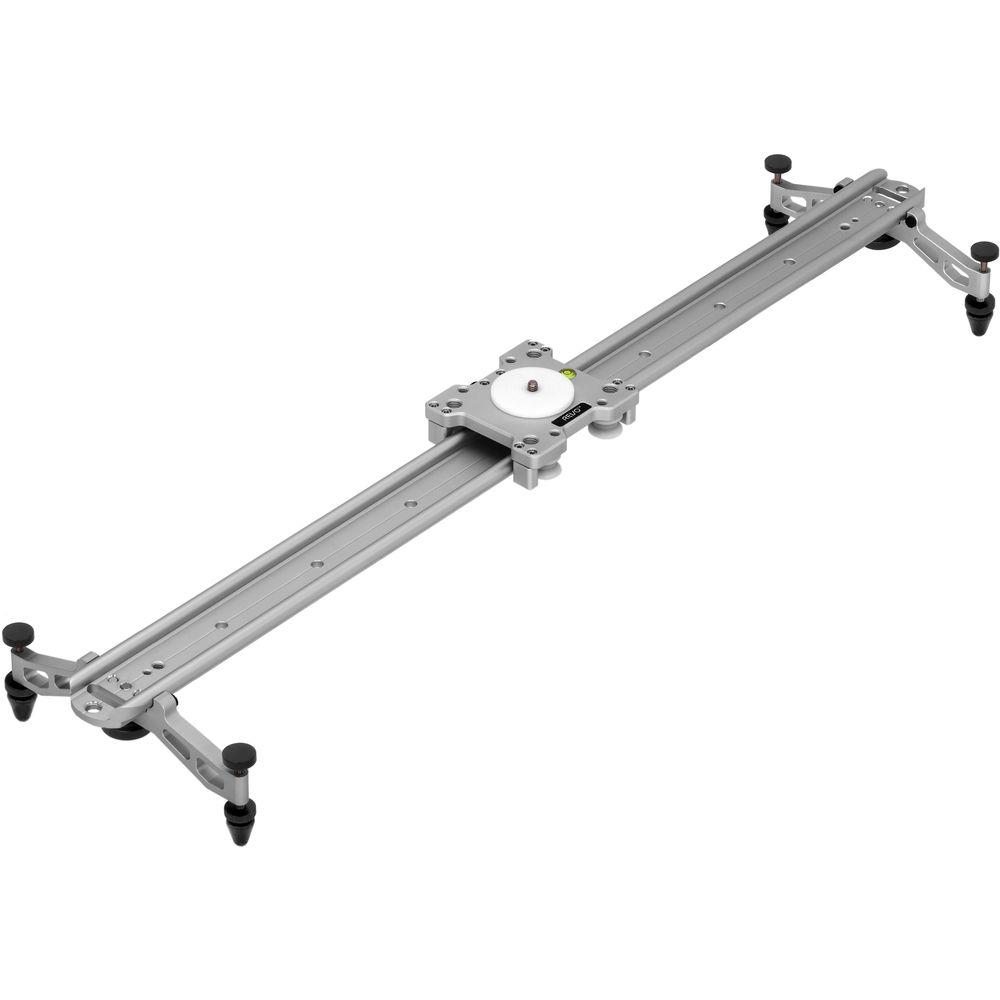

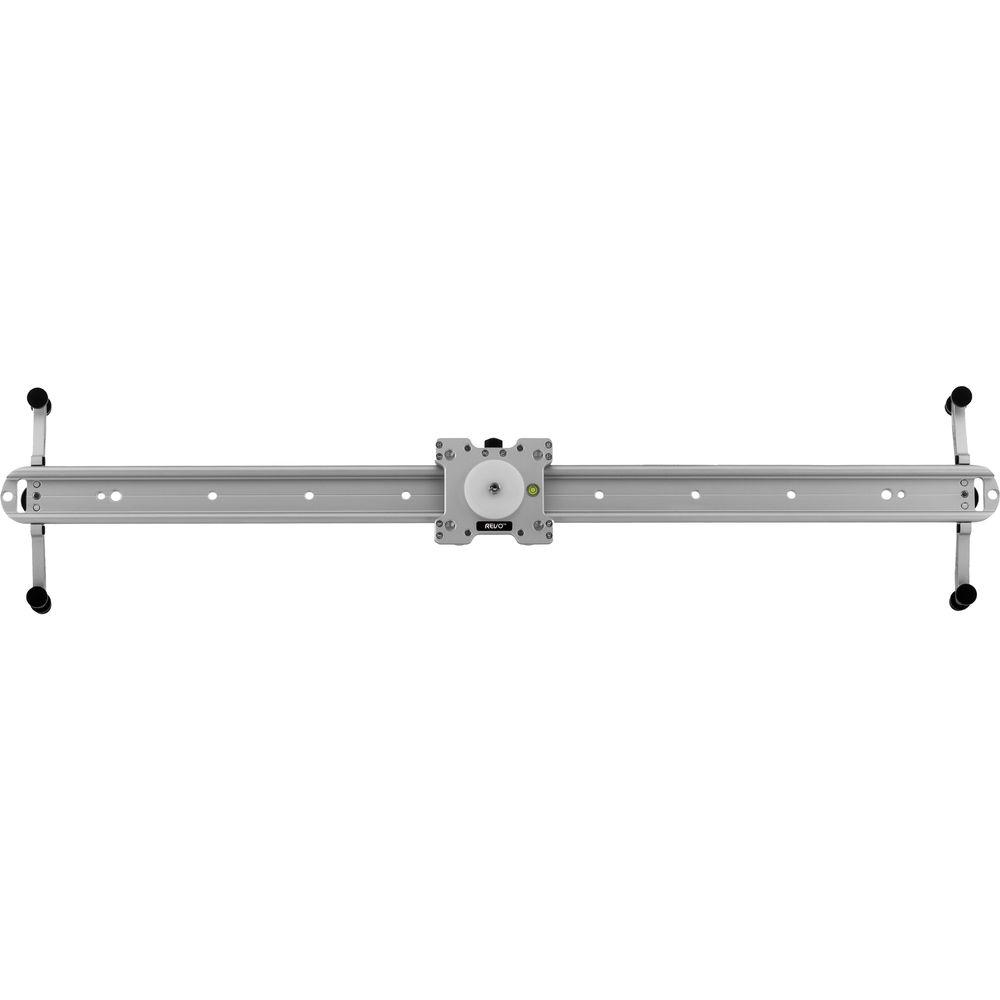

Product description The 33" Revo Camera Track Slider with Adjustable Feet is a sturdy, lightweight, and portable camera slider that lets you to capture smooth, short-run tracking- and dolly-type shots with loads weighing up to 15.4 lb. It features an aluminum construction, precision-engineered rails, and ball bearings that provide smooth and quiet travel across the entire length. The slider comes with a pair of removable legs for ground or tabletop mounting, with height-adjustable rubber feet. The legs attach via thumbscrews for tool-less assembly. Combined with an integrated bull's-eye bubble level, the slider is easy to level even on flat or slightly uneven surfaces.

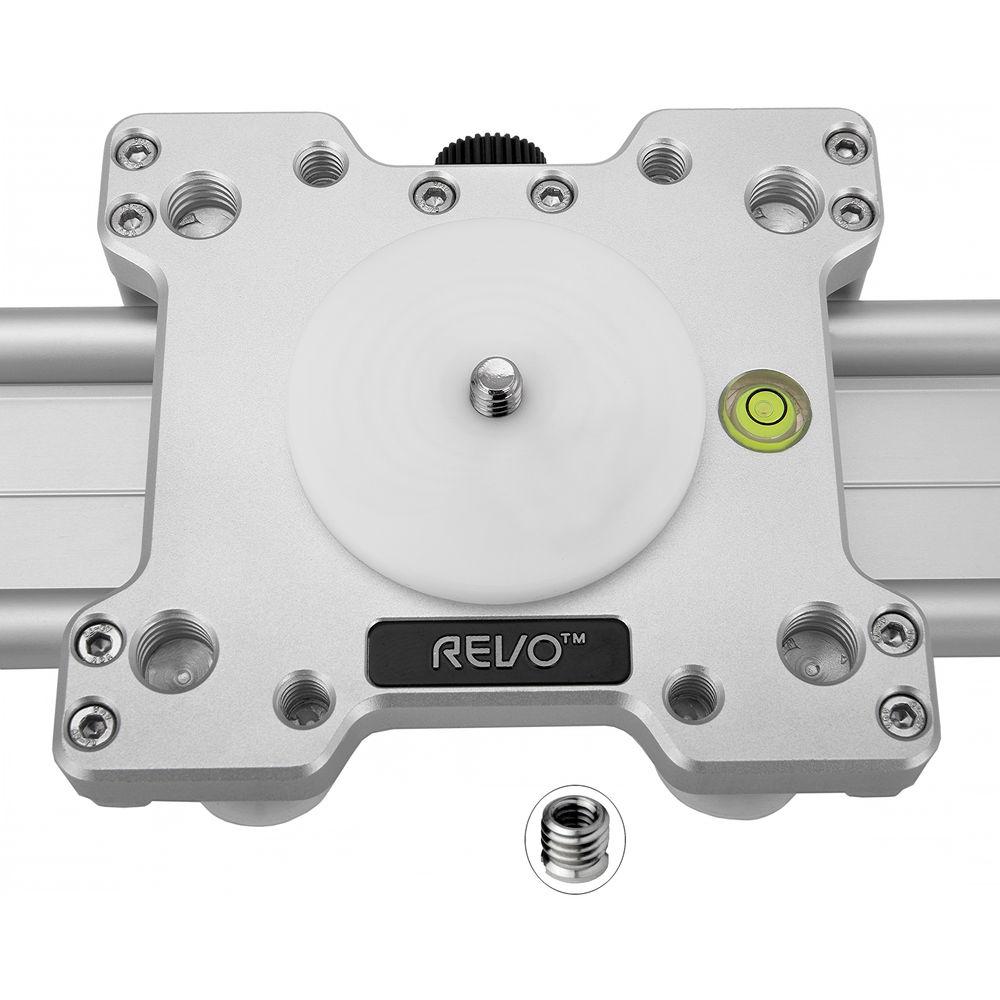

The slider carriage features a 1/4"-20 screw for camera attachment, with an included 1/4"-20 to 3/8"-16 bushing useful for attaching a fluid head or larger camcorder. The carriage also has 1/4"-20 and 3/8"-16 threaded holes on each corner so that, in addition to a camera, you can also mount articulating arms with lights and other accessories. A knob on the side of the carriage tightens to keep the carriage locked in place in-between shots. For mounting the slider on a tripod, there are 1/4"-20 and 3/8"-16 threaded holes at the center of the track. Mounting threads are also provided at either end of the track, letting you support the slider using two tripods/stands for increased stability. - Key Features
-
- 33" lightweight camera slider for smooth left, right, forward, backward, and slanted slides
- Supports rigs of up to 15.4 lb
- Ball bearings for smooth and quiet movement

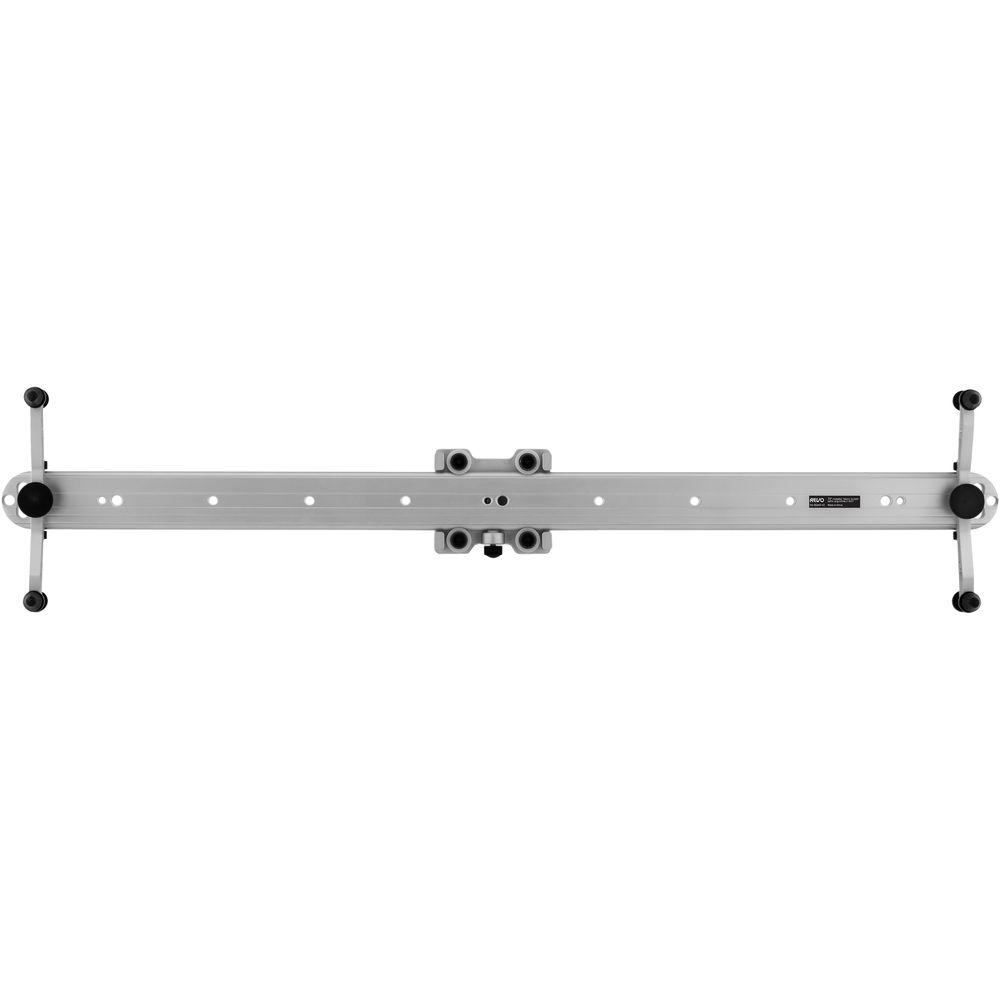

- Three 1/4"-20 and 3/8"-16 threads along the bottom for tripod mounting
- Carriage has 1/4"-20 camera mounting screw (3/8"-16 bushing included)
- Four 1/4"-20 threads on the top of the sliding carriage for mounting articulating arms

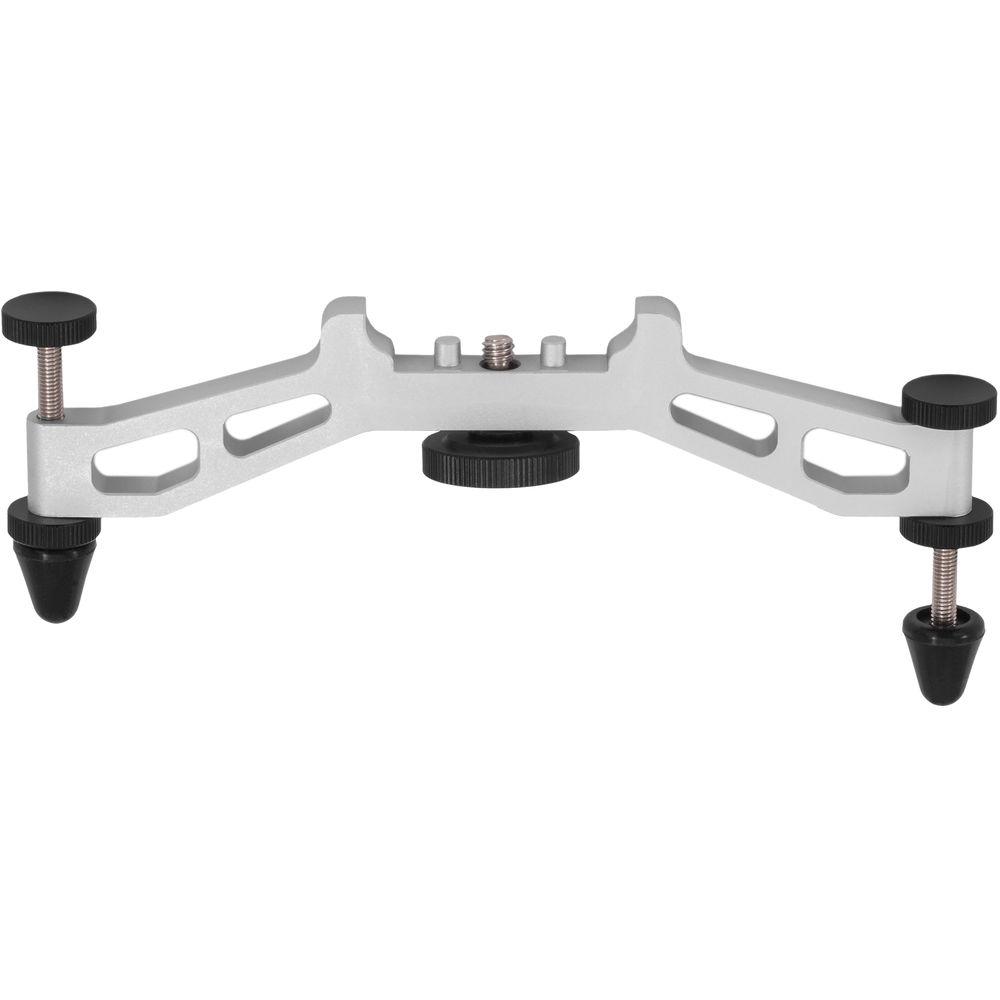

- Removable legs with rubber feet
- Feet individually height-adjustable up to 1/2" for use on lightly uneven surfaces
- Integrated bull's-eye bubble level

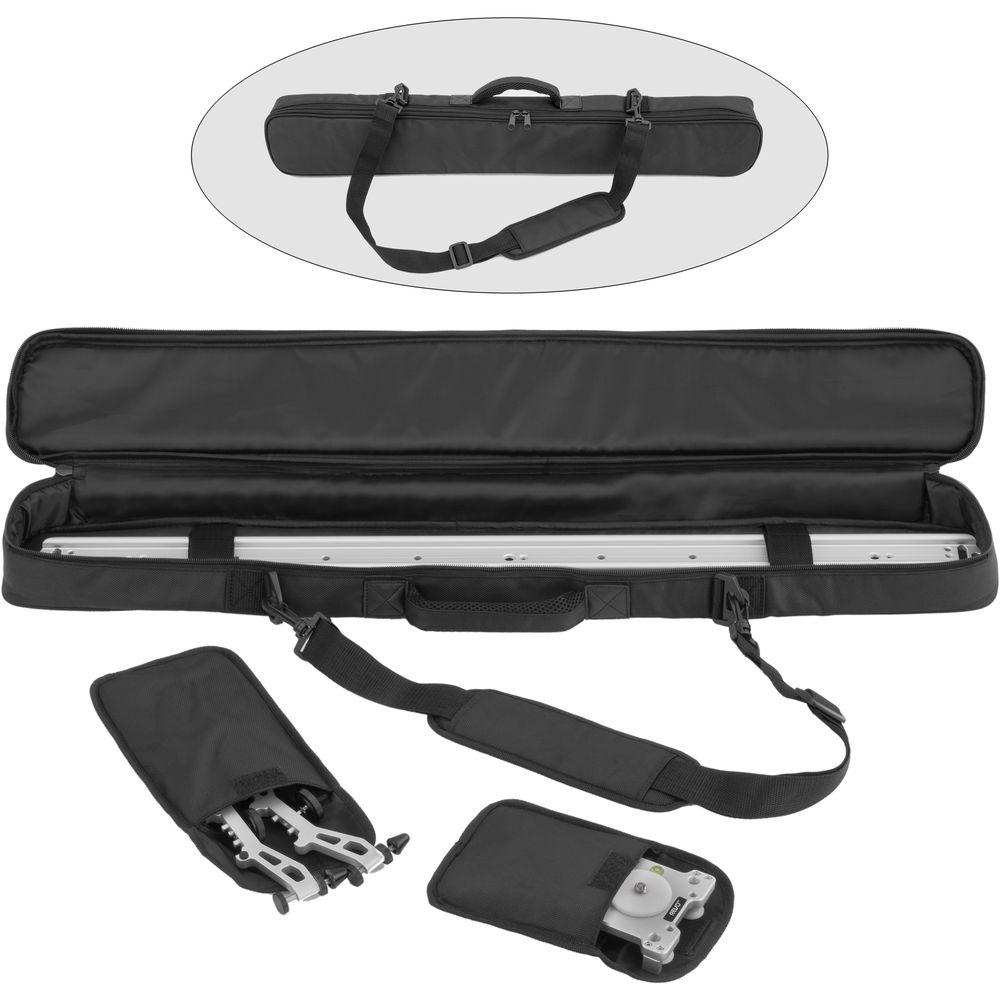

UPC: 847628595613 In the Box Revo Camera Track Slider V2 with Adjustable Feet (33") 2 x Legs with Adjustable Feet 1/4"-20 to 3/8"-16 Bushing Carrying Bag Shoulder Strap Limited 1-Year Warranty User Manual PDF 983.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Revo Camera Track Slider V2 with Adjustable Feet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRevo RS-850AF-V2 Specs | | | Load Capacity | 15.4 lb / 7 kg | | | | Camera Mounting Screw | 1/4"-20 Male & 3/8"-16 with Bushing | | Accessory Mounting | 4 x 1/4"-20 Female
4 x 3/8"-16 Female | | Tripod Mounting | 3 x 1/4"-20 Female Thread
3 x 3/8"-16 Female Thread | | | | Body Material | Aluminum | | Track Length | 33.5" / 84.3 cm | | Track Width | 3.5" / 9 cm | | Track Height | 2.75" / 7 cm | | Weight | 2.95 lb / 1.33 kg | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 35.5 x 3.0 x 3.0" |
