Product description - Take Smooth Pano Shots with Revo's Pano Head

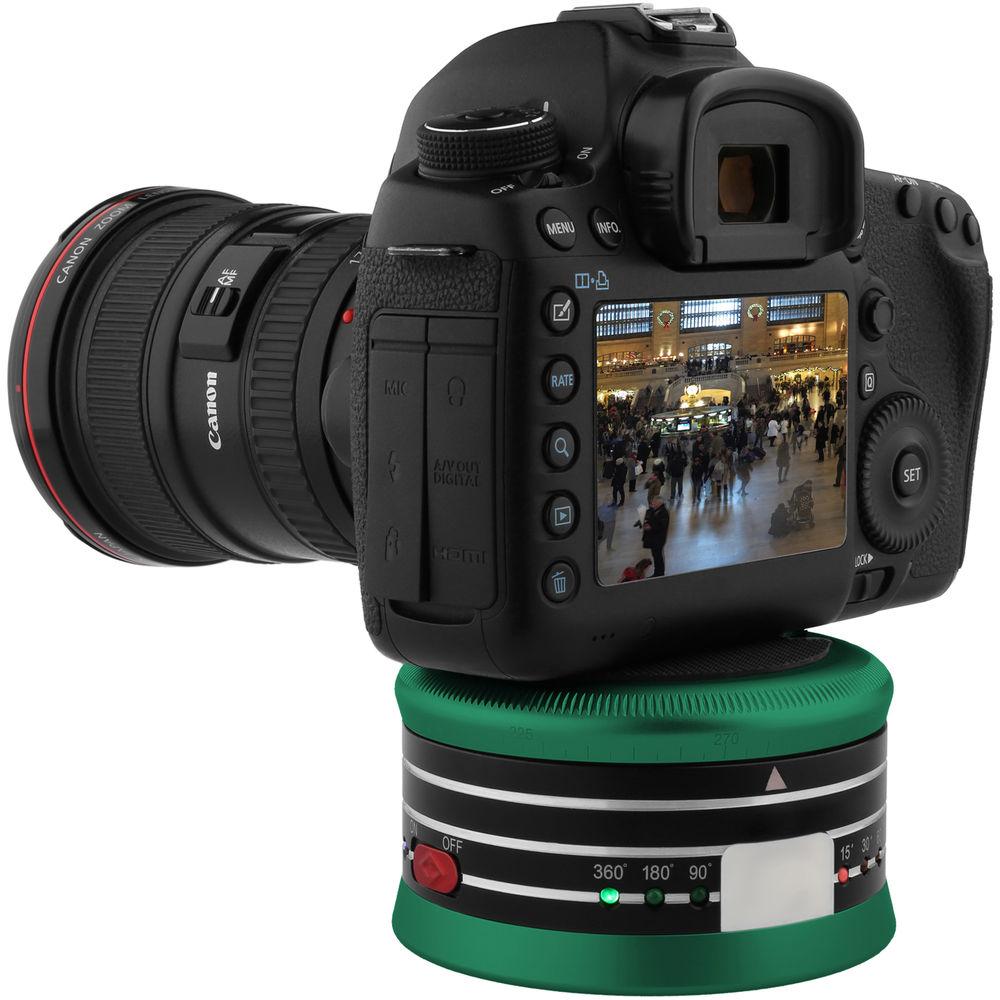

The EPH-6 Electronic Panoramic Head from Revo is a wirelessly controlled and Bluetooth enabled motorized panoramic head ideal for use by both photographers and videographers.
Capable of full 360° rotation at a number of speed settings, the EPH-6 has been designed to add continuous panning to your video or time-lapse photography. The head's movement may be controlled using a combination of directional, speed, and rotation settings, which are controlled by the included wireless remote. Panning may be set to either 90°, 180°, or 360° intervals while rotation speed may be set to either 15, 30, or 60 minutes per revolution. The user may also select whether they wish the head to pan in either the left or right direction.

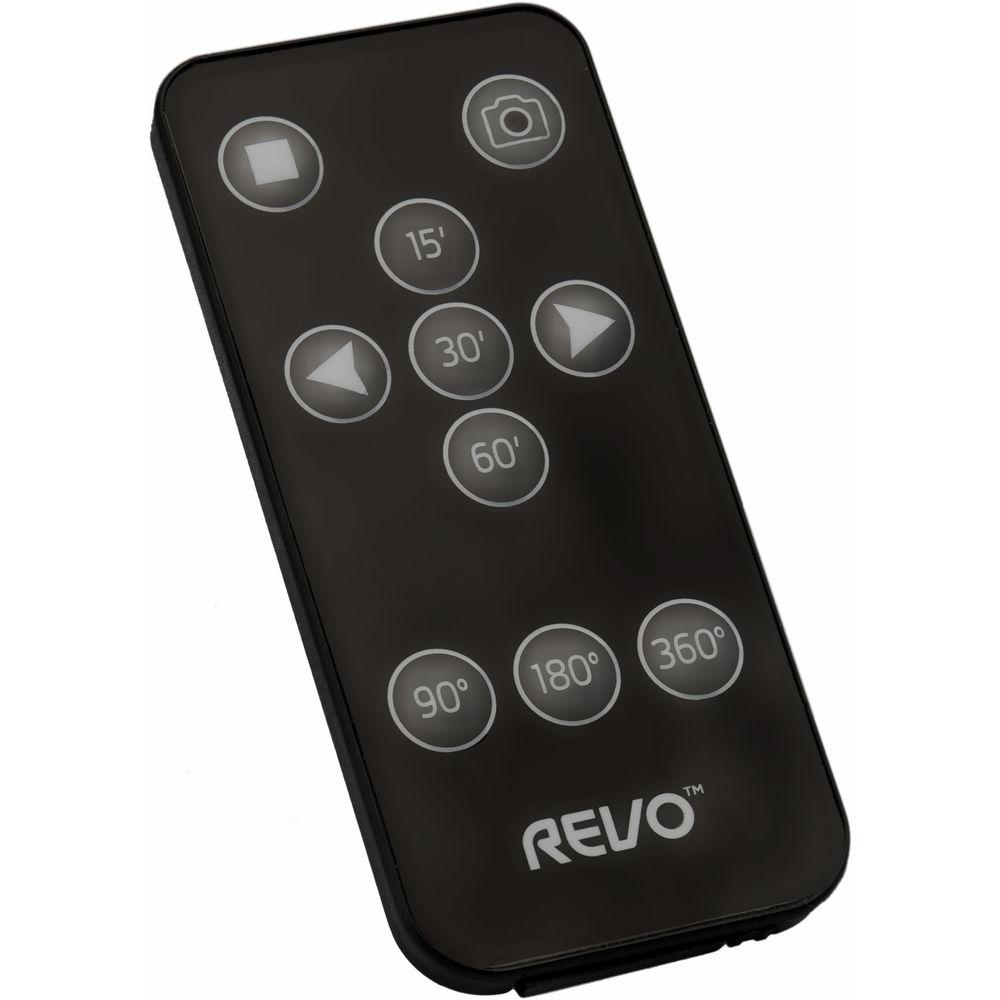

The included wireless remote features dedicated buttons for each of the head's control options and is capable of controlling the head from up to 30' away. Additionally, integrated Bluetooth connectivity allows the user to wirelessly trigger their smartphone camera's shutter via the remote.

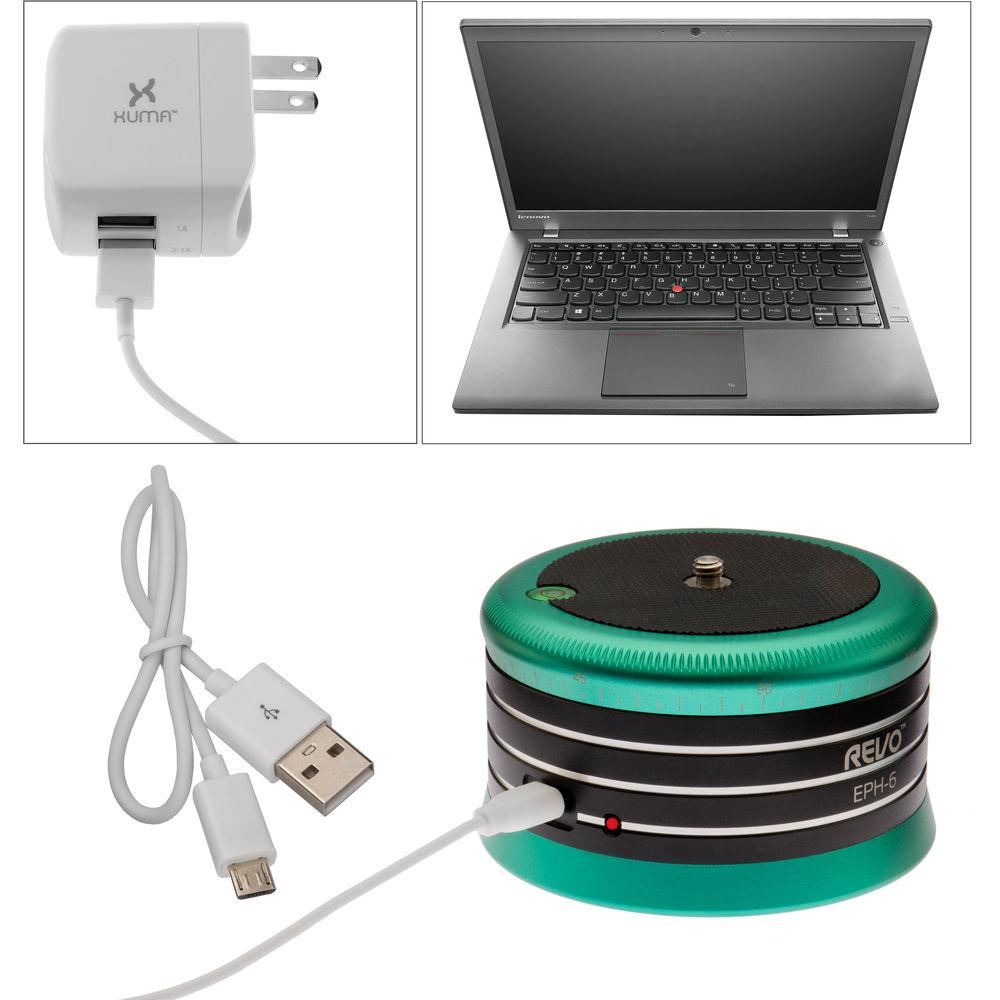

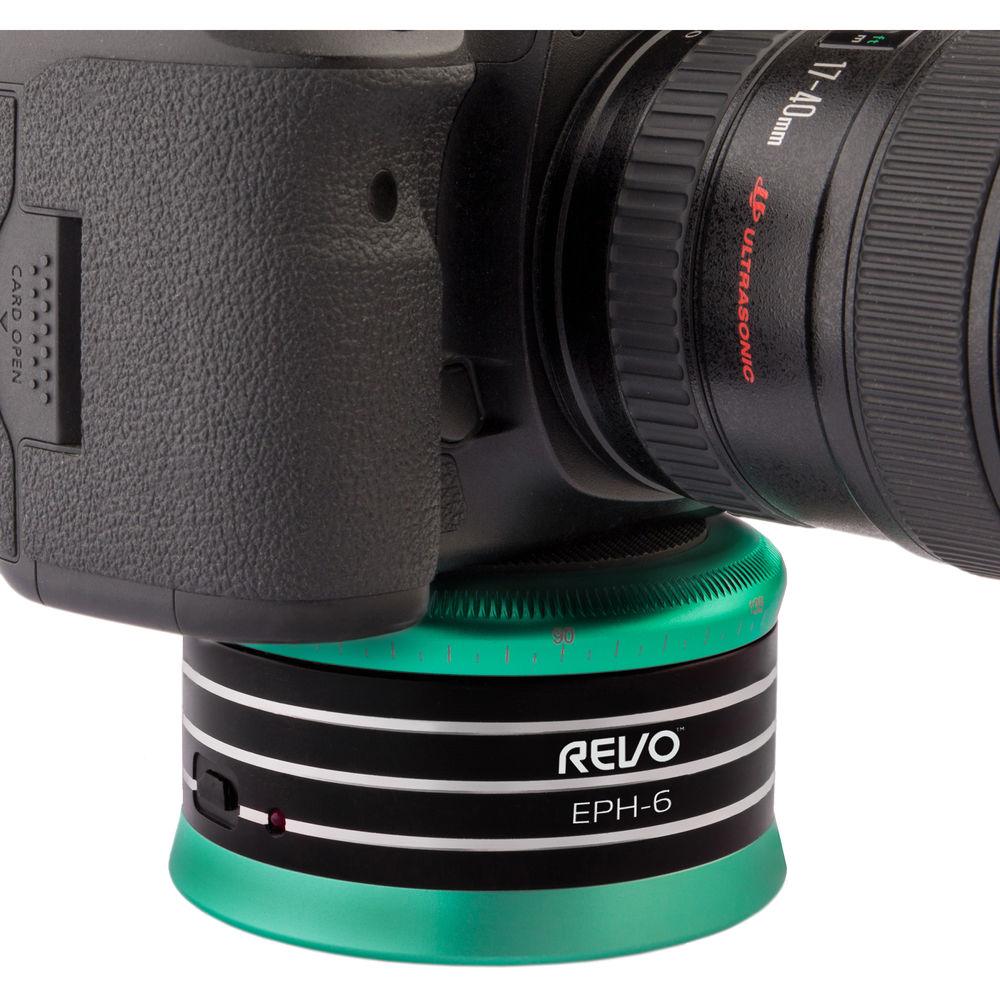

Physically, the EPH-6 is constructed of durable aluminum alloy, stands 2.3" tall, and features a base diameter of 3.7". It's top plate is equipped with a 1/4"-20 mounting screw—adaptable to 3/8"-16 if required—and features a rubber anti-friction and anti-scratch surface to prevent your equipment from damage or unwanted movement. With a load capacity of 6 lb, the EPH-6 can only function properly with a moderate amount of weight and is not recommended for use with large, heavy cameras. In terms of power, the EPH-6 uses an integrated lithium-ion rechargeable battery which provides up to 4 hours of continuous use per charge. The battery may be charged in 2 hours via the built-in USB port and includes a charging cable for this purpose. - Three Rotation Settings
- Rotates in 90°, 180°, and 360° intervals
- Controlled Speed Settings
- Each rotation pattern may be traversed in either 15, 30, or 60 minutes
- Wireless Control
- Adjust the head using the included wireless remote
- Integrated Rechargeable Battery
- A built-in USB rechargeable battery provides up to 4 hours of continuous use
UPC: 847628597396 In the Box Revo EPH-6 Electronic Panoramic Head Remote Control USB Cable Limited 1-Year Warranty User Manual PDF 3.4mbwuffzuxxaeufftvuzfwbrre Table of Contents
|
Upload User Manual
Have you got an user manual for the Revo EPH-6 Electronic Panoramic Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRevo EPH-6 Specs | Load Capacity | Pan: 6 lb (2.7 kg)
Tilt: 3 lb (1.4 kg)
Vertical: 3 lb (1.4 kg)
Inverted: 3 lb (1.4 kg) | | Height | 2.3" (5.8 cm) | | Base Diameter | 3.7" (9.4 cm) | | USB Charging | Yes | | Battery Type | Lithium-ion | | Power Settings | Charge time: 2 h
Operation time: 4 h
Standby mode: 8 h | | Bluetooth Compatibility | Android 3.0 or later
iOS 4.0 or later | | Weight | 1 lb (0.45 kg) | | | | Battery | CR2025 3 V | | Operating Range | 30' (9.1 m) | | Dimensions | 3.3 × 1.5 × 0.2" (8.4 × 3.8 × 0.5 cm) | | Weight | 0.5 oz (14.2 g) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 7.953 x 5.669 x 3.386" |
