User Manual for Revo Quad Skate Tabletop Dolly & Articulating Arm Kit

• Product category: Cine Dollies Revo
• Brand: Revo
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Revo Cine Dollies

Product description

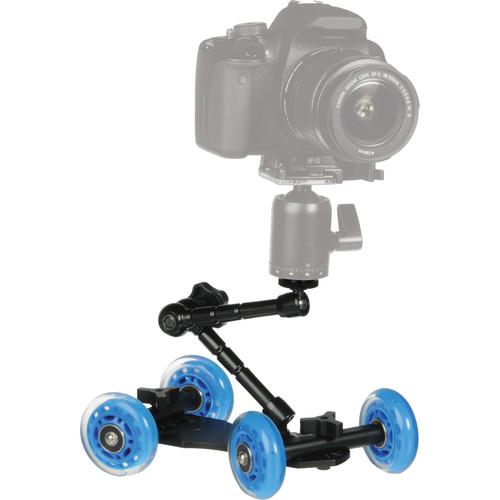

• Revo Quad Skate Tabletop Dolly with Scale Marks The Revo Quad Skate Tabletop Dolly with Scale Marks is a 4-wheel mini dolly that you can use to achieve fluid motion shots in straight lines, curves, and wide circles. You can use the dolly tabletop or on any other flat surface with a rig weighing up to 25 lb.

  Stainless steel ball bearings inside the wheels enable smooth motion. The wheels are mounted on axles that can be set and tightened into desired matching positions according to scale markings on the top surface of the dolly. A 1/4"-20 cap screw is included for attaching a camera or ball head to any of three 1/4"-20 threads along the center of the dolly. The unused threads can be used for mounting articulating arms with lights, mics, and other accessories.
  Key Features
  • • 4-wheel mini dolly for fluid motion shots in straight lines, curves, and wide circles
    • Can be used as tabletop or on any flat surface with a rig weighing up to 25 lb
    • Stainless steel ball bearings encased in 2.3" solid rubber gel wheels enable smooth motion
    • Scale markings allow aligning of the wheel axels to desired matching positions
    • A 1/4"-20 screw is included for attaching a camera or ball head
    • 1/4"-20 threads allow for mounting articulating arms with lights and mics
  UPC: 847628563377
• Pearstone 7.5" Articulating Arm The Pearstone 7.5" Articulating Arm is an arm used to mount small displays on prosumer and professional camcorders. The arm's unique design features a single-point locking mechanism, which gives the user maximum flexibility. Moving the display on multiple axes is quick and easy, allowing users to find the best possible viewing angle. In addition, the bottom verticle spacer piece is removeable to reveal a 1/4"-20 male screw, and the bottom shoe mount is removeable to reveal a 1/4"-20 female thread. The full length of this arm (tip-to-tip) measures 7.5", and the usable extension range (end-joint to end-joint) measures 4.2".
  • Maximum mounting flexibility
  • Single point locking mechanism
  • Fits on any standard shoe mount
  UPC: 847628014992

• Quad Skate Tabletop Dolly with Scale Marks wutrataxavufzyrbbatdyeaxedybuzyaa
• 1/4"-20 Camera Screw
• Limited 1-Year Warranty

• Pearstone - 7.5" Articulating Arm

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Revo Quad Skate Tabletop Dolly with Scale Marks

  Load Capacity	25 lb / 11 kg
  Mount Type	3 x 1/4"-20 Threads 1 x 1/4"-20 Screw Included for Attaching Camera or Ball Head
  Material	High-Grade Aluminum Body; Solid Rubber Gel Wheels
  Dimensions	2.5 x 7.7 x 5.3" / 6.3 x 19.5 x 13.5 cm Wheels: 2.36" / 60 mm
  Weight	1.15 lb / .5 kg

  Box Dimensions (LxWxH)	9.0 x 5.9 x 2.6"

• Pearstone 7.5" Articulating Arm

  Load Capacity	5 lb (2.3 kg)
  Length, Fully Extended	7.5" (19 cm)
  Arm Length	4.2" (10.7 cm) (joint-to-joint length)
  Mount Compatibility	Top: 1/4"-20 male screw Bottom: cold shoe 1/4"-20 female thread (with spacer piece attached) 1/4"-20 male screw (with spacer removed)

  Box Dimensions (LxWxH)	5.65 x 3.1 x 1.7"
