User Manual for Revo SR-1500 Dual Grip Shoulder Support Rig Click to enlarge the picture
Contents of the user manual for the Revo SR-1500 Dual Grip Shoulder Support
- Product category: DSLR Video Supports & Rigs Revo
- Brand: Revo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Revo DSLR Video Supports & Rigs
 |
User manual for the Revo SR-1500 Dual Grip Shoulder Support contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Revo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Revo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Revo product will considerably shorten its lifespan!
|

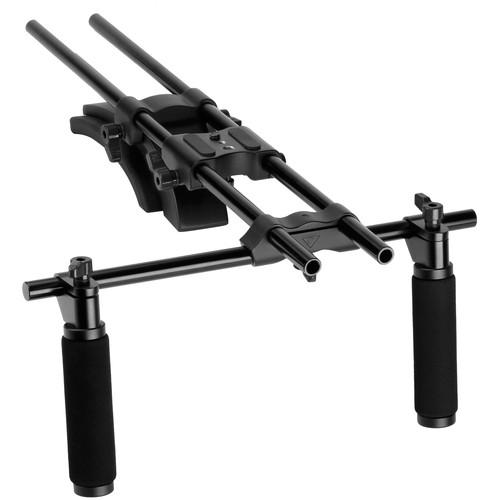

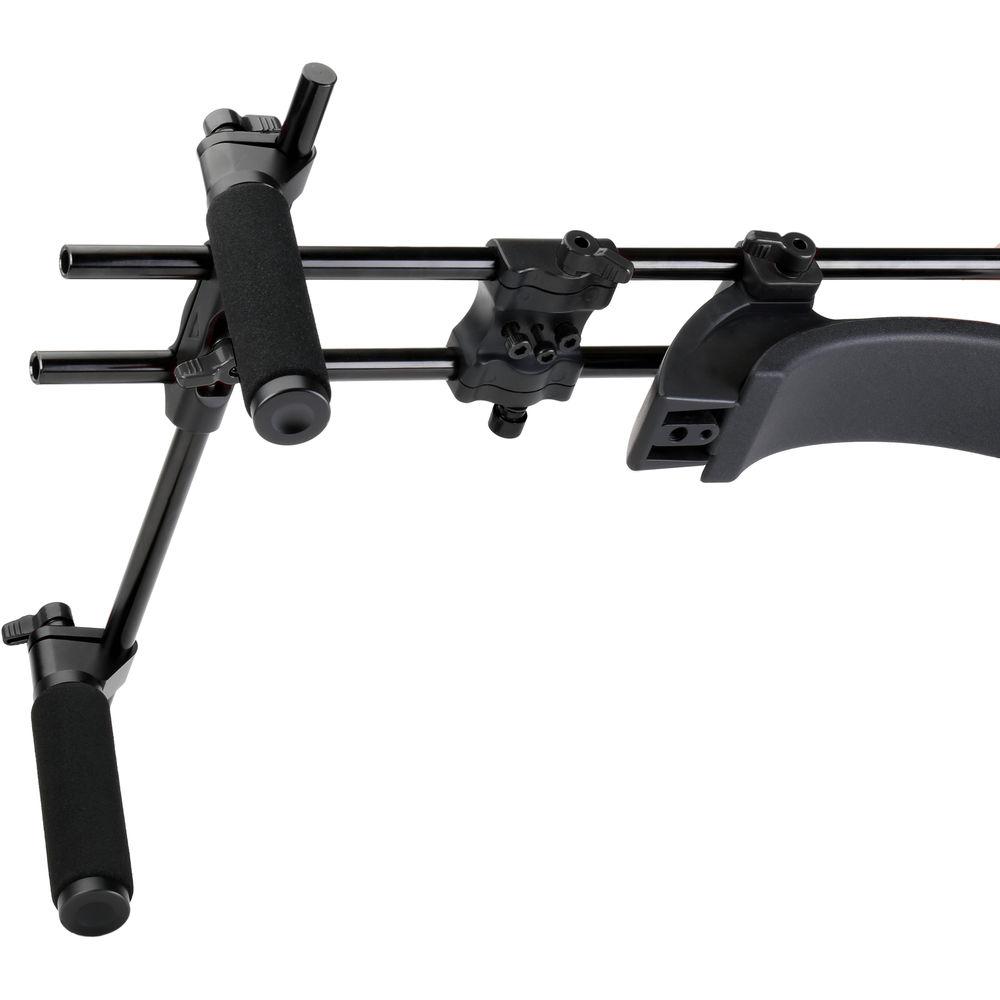

Product description This SR-1500 Dual Grip Shoulder Support Rig from Revo improves the stability of your handheld shots by adding a shoulder pad and handgrips to your camera setup. Whether you're shooting with small HDSLR cameras or larger camcorders, the SR-1500 provides the support and versatility to fit your needs. It features a shoulder pad, handlebar, dual handgrips, and a rod clamp. A pair of 22" 15mm rods come included.
Built to work with 15mm support rods, each component of the SR-1500 rig can be attached and positioned independently of each other, letting you create a solution that is right for you. Choose to use the components with the included 22" 15mm rods or with any existing 15mm rod setup you have. You can also attach any standard 15mm rod accessory mount to add articulating arms, external monitors, batteries, recorders, and other accessories to your rig.
To mount your camera, attach it to the rod clamp via the 1/4"-20 or 3/8"-16 threaded screws and then slide it onto the 15mm rods. The handgrips feature a foam rubber design for added comfort and can be attached to the handlebar or directly to the 15mm rods. The handlebar's off-set design allows for natural hand placement, and it can be flipped to for left or right shouldered configurations. For mounting the rig to a tripod or tripod plate, 1/4"-20 and 3/8"-16 threaded holes are available on the bottom of the shoulder pad. -
- Foam rubber handgrips and padded shoulder mount for increased stability and comfort
- Standard 15mm rod configuration
- 1/4"-20 and 3/8"-16 mounting screws and threads
- Solid aluminum construction
UPC: 847628573277 In the Box Revo SR-1500 Dual Grip Shoulder Support Rig Shoulder Pad 2 x 15mm Rod (22") Rod Clamp Handlebar Clamp with Handlebar Rods 2 x Foam Rubber Grip Allen Key Limited 1-Year Warranty User Manual PDF 6.2mbueyzquxyfddxstvbvswqxqfbte Table of Contents
|
Upload User Manual
Have you got an user manual for the Revo SR-1500 Dual Grip Shoulder Support Rig in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRevo SR-1500 Specs | Material of Construction | Aluminum | | Load Capacity | 30 lb (13.6 kg) | | Camera Mounting Screw | 1 x 1/4"-20
2 x 3/8"-16 | | Tripod Mounting Thread | 1 x 1/4"-20
1 x 3/8"-16 | | Rod Length | 22" (56 cm) | | Weight | 3.9 lb (1.8 kg) | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 26.0 x 6.0 x 5.0" |
