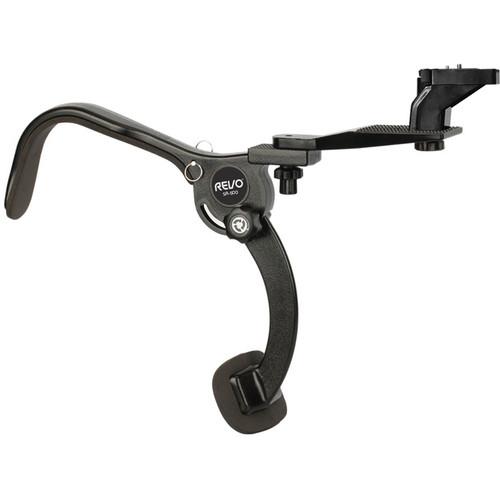

User Manual for Revo Video Shoulder Support Click to enlarge the picture
Contents of the user manual for the Revo Video Shoulder Support
- Product category: Camcorder Supports & Rigs Revo
- Brand: Revo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Revo Camcorder Supports & Rigs
|
User manual for the Revo Video Shoulder Support contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Revo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Revo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Revo product will considerably shorten its lifespan!
|
Product description Revo's Video Shoulder Support allows you to keep your DSLR or camcorder fixed steady on your shoulder and will enable you to steadily maneuver the camera, while keeping it focused on a subject.
The rig is both affordable and highly effective, as it wraps tight around your shoulder and balances against your chest, thus providing fixed steadiness. The shoulder mount and chest brace components (the top and bottom parts) are connected by a strong spring-loaded mechanism that causes the two to firmly press against your body vertically. At the same time, a shoulder strap wraps tightly around you horizontally.
The spring-load tension is adjustable by a knob on the side, and the shoulder strap is length-adjustable, so that both can be loosened, to a point at which hand support will be required. Conversely, the tighter you set these, the more fixed the rig will be on your shoulder -- tight enough that you can operate the rig hands-free. This is ideal if you're shooting an event, because you can rest your hands when there's nothing to shoot. Both the shoulder and chest components are foam padded and are made of high-density plastic.
Integrated at shoulder level is a camera baseplate. Included complimentarily are a long plate that attaches to the baseplate and a riser that can attach to the long plate and bring the camera to eye level. Knobbed 1/4" screws are included for attaching these to one another and for mounting a camera. The long plate will extend your camera out about six inches, while also raising it about an inch. The riser will raise your camera approximately three more inches. The riser features a mini quick-release plate that is removable with the flip of a lever. All the plates have rubber pads on them to better support the camera. The rig folds in half and packs into a supplied soft carrying bag. - Key Features
-
- Wraps tightly around your shoulder and keeps a camera fixed steady (but can also be loosened)
- Enables steady handle of a camera, whether keeping it focused on a subject or panning
- You can remove and rest your hands and the camera will securely sit on your shoulder
- Functionality
-
- The shoulder and chest components are spring-loaded and press firmly against your body vertically
- A shoulder straps wraps tightly around you horizontally
- The spring-load tension can be loosened in various degrees and the shoulder strap is length adjustable
- A camera baseplate is integrated, and a separate long plate and riser are included
- The riser features a quick-release mini camera plate that comes off at the flip of a lever
UPC: 847628565203 In the Box Revo Video Shoulder Support Long Camera Plate Camera Riser with Quick Release Plate Removable Shoulder Strap Soft Carrying Bag with Drawstring Closure Instruction Manual 1-Year Limited Warranty User Manual PDF 314.9kbesrduxafvuwdffwyyzzsvsyuzv Table of Contents
|
Upload User Manual
Have you got an user manual for the Revo Video Shoulder Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRevo SR-500 Specs | Material | High-density plastic
Foam padding | | Load Capacity | 6.6 lb on baseplate or long plate (3 kg)
4.4 lb on riser (2 kg) | | Dimensions | Folds to 21 x 7 x 5" (53 x 18 x 13 cm) | | Weight | 2.25 lb (1 kg) | | | | Package Weight | 2.275 lb | | Box Dimensions (LxWxH) | 15.45 x 6.45 x 4.9" |
Rating76% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
