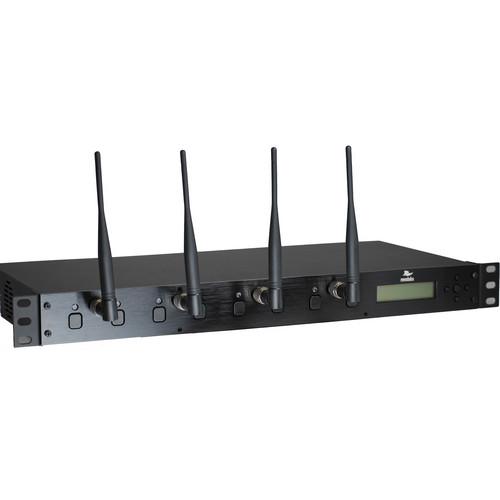

User Manual for Revolabs 4-Channel Executive HD MaxSecure Wireless System Click to enlarge the picture
Contents of the user manual for the Revolabs 4-Channel Executive HD MaxSecure Wireless
- Product category: Audio Conferencing Revolabs
- Brand: Revolabs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Revolabs Audio Conferencing
|
User manual for the Revolabs 4-Channel Executive HD MaxSecure Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Revolabs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Revolabs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Revolabs product will considerably shorten its lifespan!
|
Product description The 4-Channel Executive HD MaxSecure Wireless System from Revolabs provides a fitting solution for executive boardrooms and large conference rooms. This system is designed for environments requiring a large number of wireless microphones. It supports up to 4 microphones (sold separately) per unit and several systems can be linked together to support 32 microphones or more in Maximum Density Mode.This Executive HD MaxSecure system also lets you reduce power, which allows more systems to be used in a given area. It utilizes the ‘Designed for Speech’ technology, which consists of proprietary audio processing algorithms resulting in the accurate reproduction of human speech. This technology provides wideband frequency, which improves the intelligibility and presence of speech. The Executive HD MaxSecure has high definition audio allowing the systems to pick up the entire human voice spectrum.This system can be used as audio input for voice and video calls, voice capture for boardrooms or other meetings, voice reinforcement in large auditoriums or for voice applications that require wireless freedom and flexibility. The HD wireless microphones include the RF Armor technology, which enables the microphone to operate even when in direct contact with other wireless electronic devices known to cause unwanted audio interference, such as GSM mobile phones, Smartphones, etcFail-safe security is also implemented this wireless microphone systems. The system conforms to the AES-256 encryption as defined by FIPS 197 established by the US Government for its agencies. The AES-256 level has been approved by the NSA for use in top secret security environments. In addition, it re-negotiates the encryption key automatically every 60 seconds, ensuring additional security.This system includes an LCD display on the front of the base station for easy access to system information. There is management software available for remotely monitoring, upgrading and controlling the system through the Ethernet connection. The executive base station also has serial (RS-232) connectivity, which allows integration with all room control systems.The Executive HD MaxSecure system is compatible with a wide variety of HD MaxSecure wireless microphones (sold separately). These microphones are sleek in design and come in several styles: wearable, tabletop directional, tabletop omni-directional, XLR adapter for handheld and broadcast quality microphones, and adapters for Countryman microphones.Additional benefits include a field replaceable, rechargeable battery providing up to 8 hours of talk time on a full charge. It takes approximately 2 hours to fully charge the battery. And best of all, the system is wireless. Enterprise users can move about their conference room and still be heard with this Executive HD MaxSecure Wireless Microphone System. - Superior Audio Quality
- Wideband frequency response provides high definition audio delivering spoken word clarity
- Wireless Freedom
- Lets you sit anywhere within a conference room or walk around freely
- Support for Multiple Microphones
- Wearable, tabletop boundary and handheld
- No More Cell Phone Buzz
- RF Armor technology lets microphones operate even when in direct contact with other wireless electronic devices
- Secure
- MaxSecure: AES-256 FIPS 197 encrypted with automatic encryption key re-negotiation every 60 seconds
- Network Software
- Allows remote monitoring and control of systems
In the Box Revolabs 4-Channel Executive HD MaxSecure Wireless System (without Microphones) Base Station Charger Base Power Supply Limited 1-Year Warranty Note: The limited warranty includes 90 days of complimentary service, technical support, and advanced replacement on parts. Table of Contents
|
Upload User Manual
Have you got an user manual for the Revolabs 4-Channel Executive HD MaxSecure Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRevolabs 01HDEXEC4NMAES Specs | | | Channels | 4 channels per system
60 channels available | | Radio Frequency | 1920 to 1930 MHz | | Range | 300' (90 m) approximately, no obstruction
Features out-of-range alarm | | Bandwidth | 50 to 14,000 Hz | | | | Power | 100 to 240 V, 50 to 60 Hz, 20 W | | Connector / Interface | IEC universal power connector
Channel LED indicators
Pairing push buttons
8 x Configuration DIP switches
3.5 mm Mini Phoenix line level inputs and line/mic level outputs per channel
DB9 RS-232 serial
RJ45 LAN
3.5 Mini Phoenix serial bus | | Display | High resolution LCD display | | | | Power | 24 VDC, 1 A
100 to 240 V, 50 to 60 Hz | | Connector / Interface | 4 proprietary 4-pin microphone charge jacks
USB port for firmware update only |
