Product description The Executive Elite 4 Channel Wireless System with 3 Directional Microphones & 1 Wearable Microphone from Revolabs is comprised of a 1RU DSP base, an antenna receiver, 3 directional microphones, and a wearable microphone. A 3-Year revoCARE service plan is included. The system offers both local and remote "cloud-based" management of up to 4 wireless microphones per unit, and several systems can be linked together to support 44 microphones or more in Maximum Density mode. The Executive Elite features a remote antenna receiver unit which is separate from the Executive Elite base digital signal processing (DSP) unit. The remote antenna receiver and base DSP units are connected via a standard CAT5e or CAT6 cable which support Power over Ethernet (PoE) and enable simplified installations.
The included remote antenna receiver unit can be ceiling or wall mounted and can be placed in the room where the wireless microphones are located, regardless of the location of the receiver base DSP unit. The Revolabs Wireless Microphone System supports up to 4 microphones and employs Revolabs OTA technology which enables receivers in relative proximity to one another to synchronize automatically, thus allowing deployments of multiple Revolabs Executive Elite receivers to optimize usage of the available audio channels. The included directional tabletop and wearable microphones are designed for audio and video conferencing.
Executive Elite microphones include RF Armor technology, which enables operation even when in direct proximity to mobile phones, smartphones, or other wireless devices known to cause unwanted audio interference. In addition, Revolabs Wireless Microphone Systems communicate within the 1.9 GHz band, making the equipment resistant to interference from TV, radio, and RF traffic.
The tabletop microphones utilize standard AA nickel metal hydride (NiMH) rechargeable batteries. The wearable microphone uses a sealed lithium ion battery. The talk times for the different microphones are as follows: 20 hours for the tabletop microphone and 8 hours for the wearable microphone. Both microphones have a standby time of up to 72 hours. The average charge time for the microphones is approximately 6 hours.
Revolabs Executive Elite offers both local and remote "cloud-based" system management. The base DSP unit's display provides administrators with information on microphone status, audio and radio signal strength, and system performance. The local web-based interface also allows you to manage the system locally by connecting a laptop or tablet directly to the base DSP unit via a USB cable. The enhanced integration capabilities supporting third party room control systems enable management of the audio behavior in the room from a single console. - Boardroom-ready design fits into any enterprise environment
- Distributed architecture to simplify installations and allow separation of audio equipment from radio equipment
- Local and remote cloud-based management and monitoring options
- Utilizes the DECT protocol to protect your unit against radio frequency changes
- Out-of-range alarm warns you when you leave the 300' range
- AES-256 encryption with automatic key updates every few minutes for increased security
- Multiple wireless microphones can be active at the same time
- Large room or multi room installations can be configured and managed
- Can be mixed and combined with a variety of other Revolabs Elite microphones (sold separately)
- Open integration interfaces

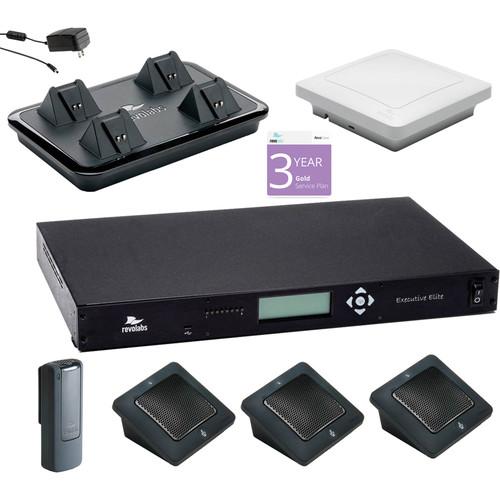

In the Box Revolabs Executive Elite 4 Channel Wireless System with 3 Directional Microphones & 1 Wearable Microphone (with 3-Year revoCARE Gold Warranty) 3 x Executive Elite Directional Tabletop Wireless Microphone Executive Elite Wearable Presenter Microphone Executive Elite Remote Antenna Receiver for the 4 Wireless Microphone System Power Supply Charging Tray Power Cable USB Cable Network Cable Euroblock Connectors Microphone Batteries Limited 3-Year revoCARE Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Revolabs Executive Elite 4 Channel Wireless System with 3 Directional Microphones & 1 Wearable Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRevolabs 01ELITEEXEC431GSA3Y Specs | | | Channel | 4 channels per system
HD Audio:
> 32 microphones, 60 channels available
Regular Audio:
> 44 microphones, 80 channels available | | Synchronization | Over-the-air (OTA) synchronization
Three Wire Synchronization bus
AVB synchronization | | Radio Frequency | 1920 - 1930 MHz | | Range | 300' (90 m) line of sight | | Encryption | 256-bit key (AES) | | Bandwidth | 20 Hz - 20 kHz | | | | Type | DSP | | Display | Monochrome graphic display, 216 x 64 pixels | | Display Size | 2.8 x 0.8" (7.1 x 2.1 cm) | | Antennas | External receiver, digital connectivity | | Connectors | 1 x RJ45, Remote antenna PoE input
1 x RJ45, AVB network input
1 x RJ45, LAN network
1 x 9-pin Sub-D, room control interface
1 x USB type B, interface
1 x 3-position synchronization bus
4 x 3-position analog audio input
4 x 3-position analog audio output
1 x IEC Power input | | Output Connectors | 4 x Selectable line/mic level output switch | | Power Requirements | 100 - 240 VAC, 50/60 Hz
15 W | | Dimensions | 17.3 x 8.0 x 1.75" (43.0 x 20.3 x 4.4 cm) | | Weight | 6.50 lb (2.95 kg) | | | | Frequency Response | Tabletop: 50 Hz - 10 kHz
Wearable: 100 Hz - 20 kHz | | Polar Pattern | Tabletop: Directional/Cardioid
Wearable: Omni-directional | | Signal to Noise Ratio | 70 dB @ 1 kHz, 94 dB SPL | | Charge Time | Tabletop: 6 hours
Wearable: 2 hours | | Talk Time | Tabletop: 20 hours
Wearable: 8 hours | | Standby Time | 72 hours | | Controls and Indicators | Tabletop: 1 x Mute touch area
1 x Battery charge status LED
2 x Status LED
Wearable: 1 x Mute LED
1 x Mute button | | Connectors | Tabletop: 1 x Charging connector
Wearable: 1 x 2.5 mm phone jack
1 x Charging connector | | Dimensions | Tabletop: 3.1 x 3.1 x 1.8" (7.9 x 7.9 x 4.4 cm)
Wearable: 3.0 x 1.3 x 0.8" (7.6 x 3.2 x 1.9 cm) | | Weight | Tabletop: 5 oz (141 g)
Wearable: 1.2 oz (35.0 g) | | | | Mounting | Wall or ceiling | | Connector | 1 x RJ-45 | | Power | PoE from receiver | | Dimensions | 6.8 x 6.8 x 2.0" (17.3 x 17.3 x 5.1 cm) | | Weight | 16 oz (0.45 kg) | | | | Power | 24 VDC, 1 A | | Power Supply | 110 - 240 VAC, 50/60 Hz | | Dimensions | 7.8 x 5.0 x 1.75" (19.8 x 12.7 x 4.4 cm) | | Weight | 13.7 oz (0.4 kg) |
