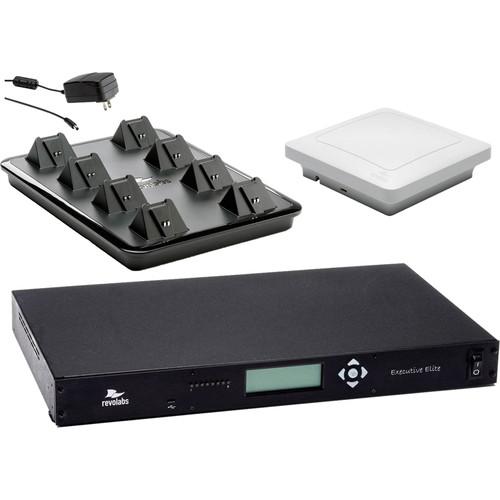

Product description The Executive Elite 8 Channel Wireless System from Revolabs is comprised of a 1RU DSP base, an antenna receiver, and a charging tray. The system offers both local and remote "cloud-based" management of up to 8 wireless microphones per unit. The Executive Elite features a remote antenna receiver unit which is separate from the Executive Elite base digital signal processing (DSP) unit. The remote antenna receiver and base DSP units are connected via a standard CAT5e or CAT6 cable which support Power over Ethernet (PoE) and enable simplified installations.
The included remote antenna receiver unit can be ceiling or wall mounted and can be placed in the room where the wireless microphones are located, regardless of the location of the receiver base DSP unit. The Revolabs Wireless Microphone System supports up to 8 microphones (not included) and employs Revolabs OTA technology which enables receivers in relative proximity to one another to synchronize automatically, thus allowing deployments of multiple Revolabs Executive Elite receivers to optimize usage of the available audio channels.
Revolabs Executive Elite offers both local and remote "cloud-based" system management. The base DSP unit's display provides administrators with information on microphone status, audio and radio signal strength, and system performance. The local web-based interface also allows you to manage the system locally by connecting a laptop or tablet directly to the base DSP unit via a USB cable. The enhanced integration capabilities supporting third party room control systems enable management of the audio behavior in the room from a single console.
This system includes and provides you with an additional 3-year warranty. RevoCARE includes 24-hour advance replacement on all parts, which allows you to have replacements before shipping back the faulty product. You are entitled to receive Tier 2 service and technical support over the phone as well as free battery replacement for any battery that doesn't last for at least 7 hours of talk time. - Boardroom-ready design fits into any enterprise environment
- Distributed architecture to simplify installations and allow separation of audio equipment from radio equipment
- Local and remote cloud-based management and monitoring options
- Utilizes the DECT protocol to protect your unit against radio frequency changes
- Out-of-range alarm warns you when you leave the 300' range
- AES-256 encryption with automatic key updates every few minutes for increased security
- Large room or multi room installations can be configured and managed
- Open integration interfaces
In the Box Revolabs Executive Elite 8 Channel Wireless System Executive Elite Remote Antenna Receiver for the 8 Wireless Microphone System Charging Tray Power Cable CAT5 Cable 3-Year Gold revoCARE Extended Service Plan for Executive HD 8 Channel System (with 8 HD Microphone Coverage) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Revolabs Executive Elite 8 Channel Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRevolabs 01ELITEEXEC83Y Specs | | | Channel | 8 channels per system | | Synchronization | Over-the-air (OTA) synchronization
Three Wire Synchronization bus
AVB synchronization | | Radio Frequency | 1920 - 1930 MHz | | Range | 300' (90 m) line of sight | | Encryption | 256-bit key (AES) | | Bandwidth | 20 Hz - 20 kHz | | | | Type | DSP | | Display | Monochrome graphic display, 216 x 64 pixels | | Display Size | 2.8 x 0.8" (7.1 x 2.1 cm) | | Antennas | External receiver, digital connectivity | | Connectors | 1 x RJ45, Remote antenna PoE input
1 x RJ45, AVB network input
1 x RJ45, LAN network
1 x 9-pin Sub-D, room control interface
1 x USB type B, interface
1 x 3-position synchronization bus
8 x 3-position analog audio input
8 x 3-position analog audio output
1 x IEC Power input | | Output Connectors | 8 x Selectable line/mic level output switch | | Power Requirements | 100 - 240 VAC, 50/60 Hz
15 W | | Dimensions | 17.3 x 8.0 x 1.75" (43.0 x 20.3 x 4.4 cm) | | Weight | 6.50 lb (2.95 kg) | | | | Mounting | Wall or ceiling | | Connector | 1 x RJ-45 | | Power | PoE from receiver | | Dimensions | 6.8 x 6.8 x 2.0" (17.3 x 17.3 x 5.1 cm) | | Weight | 16 oz (0.45 kg) | | | | Power | 24 VDC, 1 A | | Power Supply | 110 - 240 VAC, 50/60 Hz | | Dimensions | 10.0 x 7.8 x 1.75" (25.4 x 19.8 x 4.4 cm) | | Weight | 16.00 oz (0.45 kg) |
