Product description The Executive Elite 8-Channel Wireless System from Revolabs is designed to deliver high-quality audio for boardrooms and conference rooms. The system is comprised of a 1RU DSP base, an antenna receiver, and a charging tray. It offers both local and remote "cloud-based" management of up to 8 wireless microphones (sold separately). Several systems can be linked together to support up to 44 microphones, or more in Maximum Density mode. The Executive Elite features a remote antenna receiver unit which is separate from the Executive Elite base DSP (Digital Signal Processing) unit. The remote antenna receiver and base DSP units are connected via a standard CAT5e or CAT6 cable which support Power over Ethernet (PoE) and enable simplified installations.
The included remote antenna receiver unit can be ceiling or wall mounted and can be placed in the room where the wireless microphones are located regardless of the location of the receiver base DSP unit. The wireless system employs Revolabs OTA technology which enables receivers in relative proximity to one another to synchronize automatically, thus allowing deployments of multiple Revolabs Executive Elite receivers to optimize usage of the available audio channels.
Revolabs Executive Elite offers both local and remote "cloud-based" system management. The base DSP unit's display provides administrators with information on microphone status, audio and radio signal strength, and system performance. The local Web-based interface also allows you to manage the system locally by connecting a laptop or tablet directly to the base DSP unit via a USB cable. The enhanced integration capabilities supporting third party room control systems enables management of the audio behavior in the room from a single console.
All wireless communication between the microphones and the remote antenna receiver units are AES-256 encrypted, with encryption keys automatically updated every few minutes. Wired communication between the Executive Elite remote antenna receiver and base DSP unit is also AES-256 encrypted with automatic key updates. The Executive Elite receiver pairs with the full suite of Revolabs Executive Elite microphones and adapters (sold separately). Note: Microphones are not included with this system. - Boardroom-ready design fits into any enterprise environment
- Distributed architecture to simplify installations
- Local and remote cloud-based management and monitoring options
- Utilizes the DECT protocol to protect your unit against radio frequency changes
- Out-of-range alarm warns you when you leave the 300' range
- AES-256 encryption with automatic key updates every few minutes for increased security
- Multiple wireless microphones active at the same time
- Distributed architecture allows separation of audio equipment from radio equipment
- Large room or multi room installations can be configured and managed
- Can be mixed and matched with a variety of other Revolabs Elite microphones (sold separately)
- Open integration interfaces

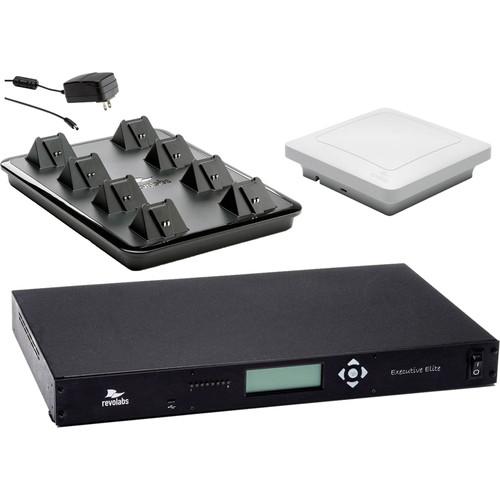

UPC: 040232209628 In the Box Revolabs Executive Elite 8-Channel Wireless System without Microphones Remote Antenna Receiver Power Supply Charging Tray Power Cable USB Cable Network Cable Euroblock Connectors Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Revolabs Executive Elite 8-Channel Wireless System without Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRevolabs 01ELITEEXEC8 Specs | Channel | 8 Channels per system
HD Audio:
> 32 Microphones, 60 channels available
Regular Audio:
> 44 Microphones, 80 channels available | | Synchronization | Over-the-Air (OTA) synchronization
3 Wire synchronization bus
AVB synchronization | | Radio Frequency | 1920 - 1930 MHz | | Range | 300' (90 m) line of sight | | Encryption | 256-bit key (AES) | | Bandwidth | 20 Hz - 20 kHz | | | | Type | DSP | | Display | Monochrome graphic display, 216 x 64 pixels | | Display Size | 2.8 x 0.8" (7.1 x 2.1 cm) | | Antennas | External receiver, digital connectivity | | Front Panel Connectors | 1 x USB, for future use | | Rear Panel Connectors | 1 x mini USB type B, local web user interface
1 x RJ45, Remote antenna PoE input
1 x RJ45, AVB network input
1 x RJ45, LAN network
1 x 9-pin Sub-D, RS-232 room control interface
1 x Euroblock, synchronization bus
8 x Euroblock, analog audio input
8 x Euroblock, analog audio output
1 x IEC Power input | | Front Panel Indicators | 8 x LED, microphone status | | Controls | 1 x 2-position switch, power on/off
5 x push button, menu control | | Power Requirements | 100 - 240 VAC, 50/60 Hz, 15 W | | Dimensions (W x H x D) | 17.3 x 8.0 x 1.75" (43.0 x 20.3 x 4.4 cm) | | Weight | 6.5 lb (2.95 kg) | | | | Mounting | Wall or ceiling | | Connector | 1 x RJ-45 | | Power | PoE from receiver | | Dimensions (W x H x D) | 6.8 x 6.8 x 2" (17.3 x 17.3 x 5.1 cm) | | Weight | 16 oz (0.5 kg) | | | | Power | 24 VDC, 1 A | | Power Supply | 110 - 240 VAC, 50/60 Hz | | Dimensions (W x H x D) | 7.8 x 10.0 x 1.75" (19.8 x 25.4 x 4.4 cm) | | Weight | 16 oz (0.5 kg) | | | | Package Weight | 13.7 lb | | Box Dimensions (LxWxH) | 22.7 x 13.4 x 6.0" |
