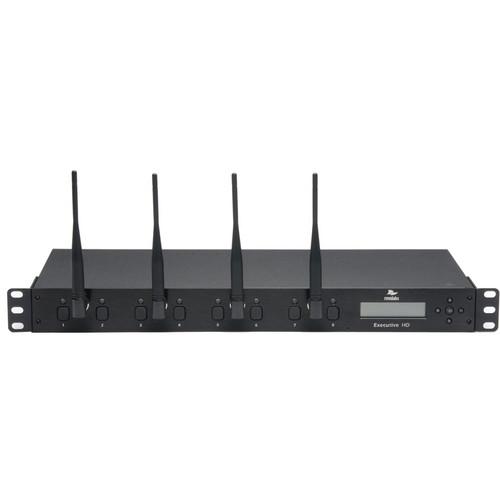

User Manual for Revolabs Executive HD 8-Channel Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the Revolabs Executive HD 8-Channel Wireless Microphone
- Product category: Audio Conferencing Revolabs
- Brand: Revolabs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Revolabs Audio Conferencing
|
User manual for the Revolabs Executive HD 8-Channel Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Revolabs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Revolabs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Revolabs product will considerably shorten its lifespan!
|
Product description The Executive HD 8-Channel Wireless Microphone System from Revolabs includes a rackmountable 8-channel wireless receiver, 6 omnidirectional mics and 2 wearable mics with rechargeable batteries, and a charger base. The system can be used for audio input for voice and video calls, as well as for sound reinforcement in board meetings or auditoriums. It has 128-bit encryption to help keep your signals secure.
The receiver unit can be rackmounted for installed applications and has a front-panel LCD display for on-site configuration. The system can also be controlled via its Ethernet port with downloadable management software. All 8 microphones have built-in rechargeable batteries that can provide up to 8 hours of talk time on a 2-hour charge in the included charger base. The system has a 300' range of operation, allowing for flexibility n placement and movement. All of the mics are RF shielded with Revolabs' RF Armor technology that reduces cell phone interference. Multiple systems can be linked together to support up to 32 mics or more. In the Box Revolabs Executive HD 8-Channel Wireless Microphone System Charger Base 6 x Omnidirectional Microphones 2 x Wearable Microphones Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Revolabs Executive HD 8-Channel Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRevolabs 01HDEXEC862G Specs | | | Channels | 8 | | Frequency Compatibility | North America, South America, Japan: 60 channels available
Africa, Asia, Australia, Europe: 120 channels available | | Radio Frequency | North & South America: 1920 to 1930 MHz
Africa, Asia, Australia, Europe: 1880 to 1900 MHz (DECT EU)
Mainland China: 1900 to 1920 MHz
Japan: 1893.5 to 1906.1 MHz | | Range of Operation | 300' (90 m), approximate, with no obstruction | | Bandwidth | 50 Hz to 14 kHz | | | | Power | 100-240 V, 50-60 Hz, 20 W | | Connection/Interface | IEC Universal Power Connector
Channel LED Indicators
Pairing Push Buttons
8x Configuration DIP Switches
8x 1/8" (3.5 mm) Mini-Phoenix Line Level Inputs
8x 1/8" (3.5 mm) Mini-Phoenix Line Level Outputs
DB9 RS-232 Serial
RJ45 LAN
1/8" (3.5 mm) Phoenix Serial Bus | | Display | High Resolution LCD | | | | Power | 24 V DC, 1 A
100-240 V, 50-60 Hz | | Connectors | 8x 4-pin microphone charge jacks
USB port for firmware updates only | | | | Type | 6x Omnidirectional
2x Wearable | | Encryption | 128-bit proprietary (per channel) | | Frequency | North America: 1.92 to 1.93 GHz (UPCS North America)
International: 1.88 to 1.90 GHz (DECT EU) | | Frequency Response | 50 Hz to 20 kHz | | Battery | Lithium Polymer | | Battery Life | Up to 8 hours of talk time
Charge Time: 2 hours | | Dimensions (HxDxL) | Wearable: 2.8 x 1.0 x 0.69" (7.2 x 2.5 x 1.75 cm)
Omnidirectional: 3.54 x 1.0 x 0.69" (9 x 2.5 x 1.75 cm) | | Weight | Wearable: 0.07 lb (0.03 kg)
Omnidirectional: 0.07 lb (0.03 kg) |
