User Manual for Revolabs Executive HD Dual Wearable Wireless Microphone System Kit Click to enlarge the picture
Contents of the user manual for the Revolabs Executive HD Dual Wearable Wireless
- Product category: Components & Accessories Revolabs
- Brand: Revolabs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Revolabs Components & Accessories
|
User manual for the Revolabs Executive HD Dual Wearable Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Revolabs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Revolabs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Revolabs product will considerably shorten its lifespan!
|

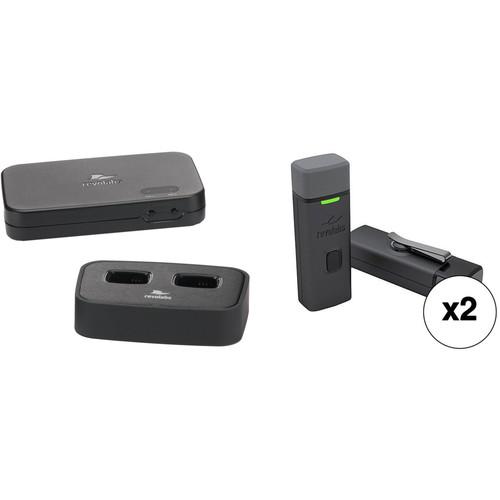

Product description This Kit includes two Revolabs Executive HD Wearable Wireless Microphones and the Revolabs 02-HDDUAL-NM, which features a two-channel base station, a dual-slot charger base, and a power adapter. With rechargeable microphone batteries that provide up to eight hours of operation, a maximum range of 150 feet, bidirectional audio, and resistance to interference from wireless devices, this kit is ideal for interviews, lectures, conferencing, and more. - Revolabs 02-HDDUAL-NM HD Dual-Channel Wireless Microphone System
- How To Obtain Revolabs Field Replaceable Batteries
The 02-HDDUAL-NM HD Dual-Channel Wireless Microphone System from Revolabs provides clear, reliable, untethered communications; ideal for recording, conferencing, VoIP, sound reinforcement, and more. The system includes a dual-channel base station, a dual-channel charger base, and a power adapter. The system uses 1.9GHz DECT technology to provide HD audio with a frequency response of 50Hz to 20kHz to capture the entire human voice spectrum.
The system uses MC/TDMA/TDD radio transmissions both to and from your microphone, allowing the system to co-exist with wireless 802.11 networks and GSM cellphones without interference. It also includes digital encryption technology for secure communications. The system has analog 3.5mm input and output connectors, which can be switched between mic and line level operation, and also have the ability for both inputs and outputs to be mixed to a single channel. Note: Microphone not included. System includes Base, Charger, and Power Adapter. A variety of compatible microphones are available separately. - Provides clear, reliable, untethered communications; ideal for recording, conferencing, VoIP, sound reinforcement, and more
- Includes a dual-channel base station, a dual-channel charger base, and a power adapter
- 1.9GHz DECT technology provides HD audio with a frequency response of 50Hz to 20kHz to capture the entire human voice spectrum
- System uses MC/TDMA/TDD radio transmissions both to and from your microphone, allowing the system to co-exist with wireless 802.11 networks and GSM cellphones without interference
- Digital encryption technology for secure communications
- Analog 3.5mm input and output connectors can be switched between mic and line level operation, and also have the ability for both inputs and outputs to be mixed to a single channel
- 2 x Revolabs Executive HD Wearable Wireless Microphone with Clip
- How To Obtain Revolabs Field Replaceable Batteries
The Revolabs Executive HD Wearable Microphone features a rotatable clip for mounting on clothing, shirt lapels, pockets, etc. The microphone reproduces speech with CD quality fidelity and is intended for use with the Revolabs Executive HD wireless microphone system. With its internal lithium rechargeable battery, there are no batteries to change. Eight hours of operation is achieved on a single 2 hour charge. - CD quality audio reproduction
- 8 Hours of operation on a single 2 hour charge
UPC: 501050188927 In the Box - 02-HDDUAL-NM HD Dual-Channel Wireless Microphone System
- Base Station
- Charger Base
- Power Adapter
- 1-Year Limited Warranty
- 2 x Executive HD Wearable Wireless Microphone with Clip
Table of Contents
|
Upload User Manual
Have you got an user manual for the Revolabs Executive HD Dual Wearable Wireless Microphone System Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Revolabs 02-HDDUAL-NM HD Dual-Channel Wireless Microphone System
| Operating Frequency | 1.9GHz | | Frequency Response | 50Hz - 20kHz | | Connectors | 2 x 3.5mm Analog Inputs
2 x 3.5mm Analog Outputs
1 x Mini USB Connector
1 x Power Input | | Controls and Indicators | 2 x Pairing Buttons
8 x Configuration DIP-Switches
2 x LED Indicators | | | | Box Dimensions (LxWxH) | 8.0 x 6.0 x 3.0" | - 2 x Revolabs Executive HD Wearable Wireless Microphone with Clip
| Battery | Lithium
8 Hours of Operation, full charge in 2 hours | | Frequency Response | 50Hz to 20kHz | | Encryption | 128-Bit | | Radio Frequency | 1.92 to 1.93GHz | | Dimensions | 2.8 x 1 x 0.69" (7.2 x 2.5 x 1.75cm) | | Weight | 0.07 lb (0.03 kg) | | | | Box Dimensions (LxWxH) | 5.0 x 2.0 x 2.0" |
