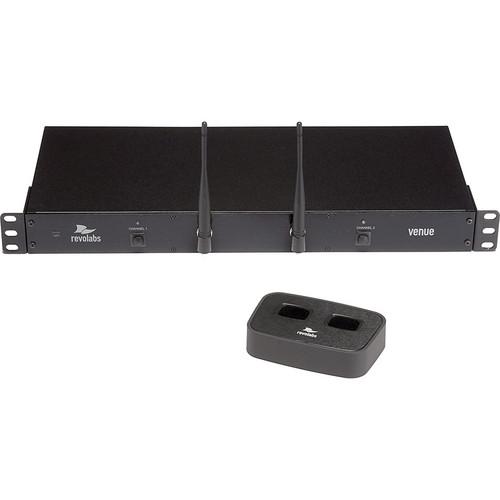

User Manual for Revolabs Executive HD Venue Dual Channel Rack-Mounted Microphone System without Microphones Click to enlarge the picture
Contents of the user manual for the Revolabs Executive HD Venue Dual Channel
- Product category: Audio Conferencing Revolabs
- Brand: Revolabs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Revolabs Audio Conferencing
|
User manual for the Revolabs Executive HD Venue Dual Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Revolabs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Revolabs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Revolabs product will considerably shorten its lifespan!
|
Product description The Revolabs Executive HD Venue Dual Channel Rack-Mounted Wireless Microphone System without Microphones is a versatile audio solution for video conferencing or voice reinforcement applications. Its rack-mounted design allows you to integrate the Venue easily into video conferencing products, or audio equipment.The Venue Dual Channel wireless system consists of a rack-mountable base station, and an HD wireless microphone charger base. The Venue supports up to 2 HD audio wireless microphones (sold separately). With frequency groups, the Venue allows for installation of 2 Venue systems with a maximum of 4 microphones in the same area.As with the other HD systems, the Venue system provides bi-directional audio, which allows audio to be sent back to the microphone so that users can listen using a headset. The Venue Dual Channel System takes advantage of the same technology available for boardrooms and large conference rooms in the Executive HD products. Utilizing Revolabs' Designed For Speech technology, the Venue provides wideband frequency to improve the intelligibility and presence of speech, allowing the system to pick up the entire human voice spectrum. This technology consists of proprietary audio processing algorithms, resulting in accurate reproduction of human speech.The Venue wireless microphone system is managed through a series of dip switches, allowing users to control the different audio options. The switches also enable selection of the level of the outputs, line level, or microphone level. In the Dual Channel system, users can select whether the microphone channels are mixed in the base unit to provide a mixed output, or whether the 2 channels are handled independent of each other, providing 2 separate outputs and inputs for the 2 channels.Additional settings let users control the transmission power mode used by the receiver, providing a higher density of HD systems in a given area where a lot of systems are required. The adjustable power reduces interferences between the systems. The Venue can be mixed and matched with a variety of HD wireless microphones which are sold separately. - Revolabs HD Venue 2-Channel Rack-Mount System without Microphones The Revolabs HD Venue 2-Channel Rack-Mount System comes without microphones. This allows you to mix and match which wearable, tabletop, omni and directional HD Wireless Microphones you need. The HD Venue 2-Channel System is ideal for audio conferencing, video conferencing, education, houses of worship, installed audio, professional audio and rental/staging applications. It features dual female 1/4" balanced output connectors and dual male XLR balanced output connectors, as well as dual female XLR and 1/4" balanced combo input connectors. There's also a USB port on both the base station and charger base, which is for firmware updates only.The HD Venue System is equipped with antennas, channel LED indicators, pairing push buttons and a rack-mount bracket. It has a wireless transmission range of up to 300 feet (91 m) and features full frequency response. It's also impervious to GSM noise from cell phones and other devices. The base station is housed in a full metal enclosure that is rack-mountable. The charger base features dual proprietary 4-pin microphone charge jacks that work with HD Wireless Mics. The system supports both North American and international radio frequencies. Plus, it even comes with a universal 100 - 240 V, 50/60 Hz power supply for worldwide use.
- Ideal for audio conferencing, video conferencing, broadcasting, education, houses of worship, installed audio, professional audio and rental/staging applications
- Rack-mountable with full metal enclosure
- Choice of XLR or 1/4" analog inputs and outputs
- Ability to mix both inputs and outputs into 1 line or mic level
- Impervious to GSM noise from cell phones and other devices
- Features full frequency response
- Mix and match HD wireless microphones (sold separately)
- Revolabs 3-Year Gold revoCARE Extended Service Plan for HD Venue System (with 2 HD Microphone Coverage) The 3-Year Gold revoCARE Extended Service Plan for HD Venue System from Revolabs provides you with an additional 3-year warranty for the HD Venue wireless microphone system. This service plan also provides coverage for up to 2 HD microphones. RevoCARE includes 24-hour advance replacement on all parts, which allows you to have replacements before shipping back the faulty product. You are entitled to receive Tier 2 service and technical support over the phone as well as free battery replacement for any battery that doesn't last for at least 7 hours of talk time.
- 24-Hour Advance Replacement
- Replacement parts will be shipped within 24 hours of your request via standard shipping methods
- Complimentary Battery Replacement
- Free battery replacement on any battery that provides less than 7 hours of talk time
- Complimentary Service and Support
- Receive service and technical support over the phone with support staff
In the Box - HD Venue 2-Channel Rack-Mount System without Microphones fbwrxxzb
- HD Venue Base Station
- HD Venue Charger Base
- Power Supply
- Rack-Mount Hardware Set
- 1-Year Limited Warranty
- 3-Year Gold revoCARE Extended Service Plan for HD Venue System (with 2 HD Microphone Coverage)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Revolabs Executive HD Venue Dual Channel Rack-Mounted Microphone System without Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Revolabs HD Venue 2-Channel Rack-Mount System without Microphones
| | | Audio Bandwidth | 50 - 20,000 Hz | | Channels | 2-channels (system) 4-channels (maximum in one area) | | Radio Frequency | North America: 1.92 to 1.93 GHz (UPCS North America) International: 1.88 to 1.90 GHz (DECT EU) | | Radio Protocol | Digital (automatic channel selection) | | Transmission Range | Approximately 300' (91 m) (Actual range depends on RF signal absorption, reflection & interference) | | LED Indicator | Yes (channel indicator) | | Diversity Antennae | Yes (SMA plug - 50 ohms) | | Buttons | Yes (pairing push buttons) | | Bracket | Yes (rack-mount bracket) | | Configuration Switch | Configuration switches (DIP) x 8 | | Power Connector | AC-IN (power input port) | | USB Port | Yes (mini-USB serial interface for firmware updates only) | | Input Connectors | Female XLR and 1/4" (6.35 mm) balanced combo jacks x 2 | | Output Connectors | Female 1/4" (6.35 mm) balanced jacks x 2 Male XLR balanced jacks x 2 | | | | USB Port | Yes (for firmware updates only) | | Power Connector | DC-IN (power input port) | | Charge Connector | Proprietary 4-pin microphone charge jacks x 2 | | | | Power Requirements | HD Venue Base Station: universal 100 - 240 V, 50/60 Hz inputs (5W) HD Charger Base Station: universal 100 - 240 V, 50/60 Hz inputs (5W) | | Operating Temperature | 40 to 100°F (5 to 40°C) | | Operating Humidity | 20 to 85% | | Dimensions (WxHxD) | HD Venue Base Station: 16.9 x 1.7 x 8.0" (43.0 x 4.4 x 20.3 cm) HD Charger Base Station: 4.6 x 1.0 x 3.1" (11.8 x 2.5 x 7.9 cm) | | Weight | HD Venue Base Station: 2.0 lb (907.2 g) HD Charger Base Station: 5.2 oz (147.4 g) | | | | Box Dimensions (LxWxH) | 21.0 x 12.0 x 4.0" |
