Product description - Revolabs FLX UC 500 USB Conference Phone

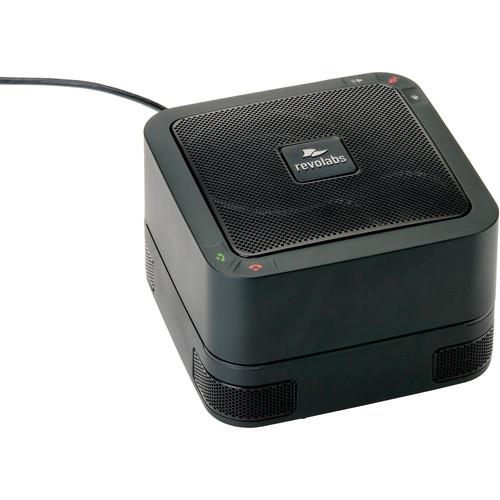

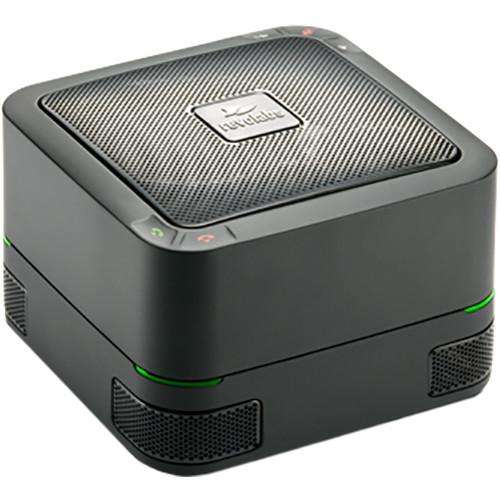

The black Revolabs FLX UC 500 USB Conference Phone is a combined microphone and speaker unit designed to provide two-way communication for collaborators and team members in meetings, conferencing, offices, and webinars. It features four built-in microphones to deliver 360° of sound pickup and a frequency response of 160 Hz to 16 kHz. The integrated tweeter and mid-woofer produce wideband audio from 160 Hz to 20 kHz and ensure audio will be heard clearly in rooms dimensioned for up to ten people. Full duplex support enables simultaneous capture and playback of audio.Echo cancellation technology minimizes ambient sound without the use of computer-based processing, providing enhanced intelligibility and clarity of your voice to clients. There are on-board buttons for volume, mute, and call start/end. For custom functionality with programs such as Skype, Microsoft Lync, Cisco Jabber, and WebEx, use the FLX UC 500 Device Manager to assign commands to the on-board buttons.The FLX UC 500 connects via USB and is powered by the supplied AC adapter. - Audio Device for All Environments
- Combines speakers, microphones, and audio processing to deliver optimum audio performance for conference rooms, small offices, and huddle rooms
- Extended Frequency Response
- Allows clear call intelligibility for all languages and users
- Four Built-In Microphones
- Provides full 360° coverage of audio capture
- Integrated Echo Cancellation
- Helps reduce ambient sounds
- Full Duplex Technology
- Uses integrated audio signal processing to remove echoes
- Duplex Technology
- Allows for audio playback and audio capture simultaneously
- Intuitive Controls
- Uses capacitive touch buttons on the top surface to provide control of mute, volume up, volume down, call answer, and call end
- Four Corner LED Bars
- Provides constant visual status of the unit
- Unified Communication Audio
- Connects to your computer for use in applications such as Skype, Microsoft Lync, Cisco Jabber, WebEx, and others
- FLX UC 500 Device Manager
- Supports customizable button functions using the FLX UC 500 Device Manager

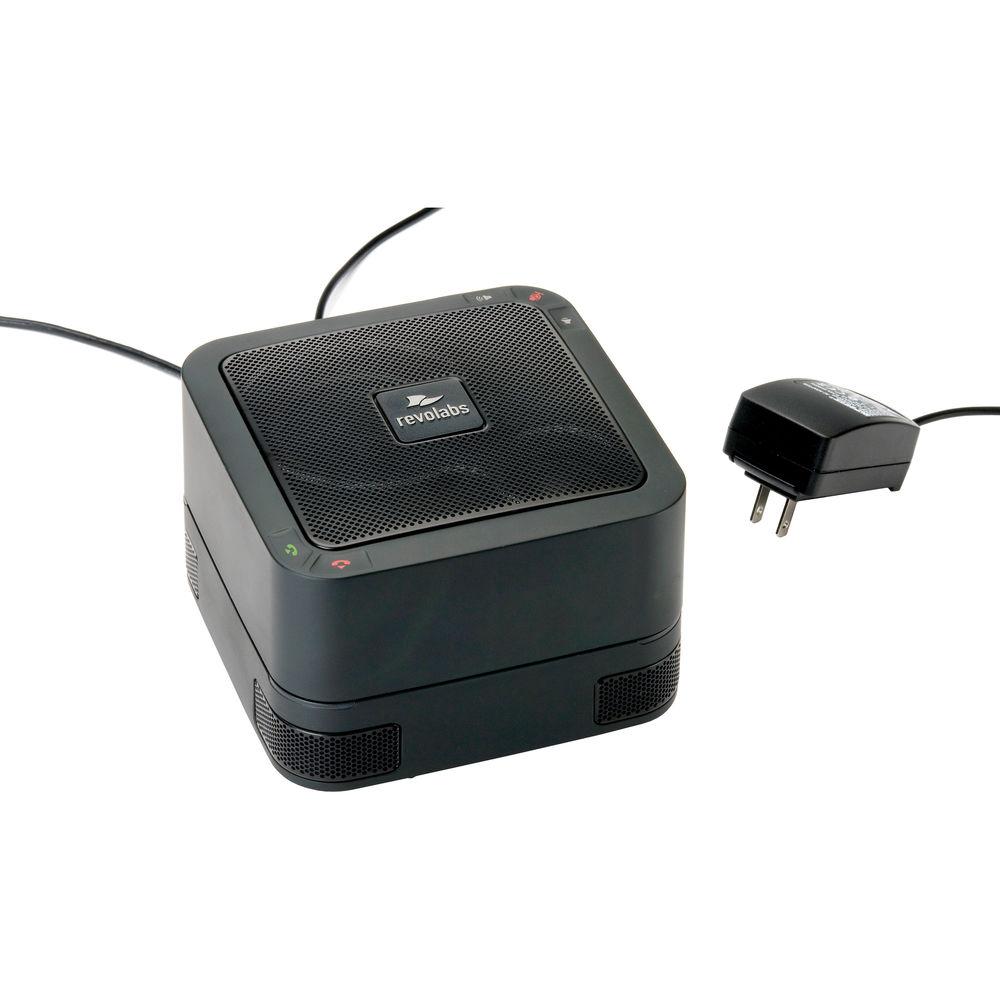

UPC: 094922381538 In the Box Revolabs FLX UC 500 USB Conference Phone (Black) 6.6' / 2m USB Cable Power Supply Plug Clips Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Revolabs FLX UC 500 USB Conference Phone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRevolabs FLX UC 500 Specs | | | Frequency Response | Speakers: 160 Hz to 20 kHz
Microphones: 160 Hz to 16 kHz | | Max SPL Level | 91 dB at 1 m | | Echo Cancellation | Yes | | Full Duplex Support | Yes | | Controls | Volume control with audible feedback
Comfort noise fill | | Filter | Noise | | Connection | Mini-USB 2.0 audio connection | | Safety | CE Mark: EN 60950
IEC60950
UL60950
CSA C22.2, No. 60950
AS/NZS 60950 | | EMC Compliance | FCC (47 CFR Part 15) Class B
ICES-003 Class B
EN55022 Class B
CISPR22 Class B
AS/NZS CISPR22 Class B
VCCI Class B
EN55024 | | Environmental | RoHS compliant | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Relative Humidity | 20 to 85% (non-condensing) | | Storage Temperature | -22 to 131°F / -30 to +55°C | | Power Requirements | Input: 15 V, 1 A external power supply | | Dimensions (H x W x L) | 4.8 x 5.9 x 5.9" / 123 x 150 x 150 mm | | Weight | 2.2 lb / 1 kg | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 7.5 x 7.4 x 7.3" |
