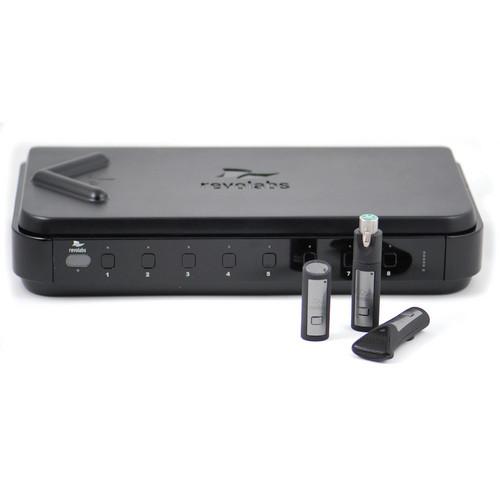

User Manual for Revolabs Fusion 4-Channel Telephony Hybrid with Wireless Microphone System with Gold revoCARE Click to enlarge the picture
Contents of the user manual for the Revolabs Fusion 4-Channel Telephony Hybrid with
- Product category: Audio Conferencing Revolabs
- Brand: Revolabs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Revolabs Audio Conferencing
|
User manual for the Revolabs Fusion 4-Channel Telephony Hybrid with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Revolabs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Revolabs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Revolabs product will considerably shorten its lifespan!
|
Product description The Fusion 4-Channel Telephony Hybrid with Wireless Microphone System from Revolabs includes a 4-channel wireless receiver, 3 omnidirectional tabletop mics and 1 lapel mic with rechargeable batteries, a charger base, 2 power cables, and a remote control. It is designed to capture audio for video conferences or conference calls thanks to its built-in hybrid telephone. The system has 128-bit encryption to keep your signals safe and is GSA compliant.
The base station receiver can act as an audio mixer by allowing you to adjust the levels of each of its 4 channels. Its built-in acoustic echo cancellation and noise reduction features are designed to provide clear audio for your calls. The 4 microphones have built-in rechargeable batteries that can provide up to 8 hours of talk time on a 2-hour charge in the charger base. They have an approximate 100' range of operation from the base station, allowing for flexibility in placement and movement during your conferences. All of the microphones are RF shielded with Revolabs' RF Armor technology that reduces cell phone interference. - revoCARE Extended Service Coverage
- revoCARE provides you with an added extension and enhancement to the 90 days of complimentary service and support included in the company's limited manufacturer's warranty. revoCARE includes 24-hour advanced replacement on all parts, allowing you to receive replacements before you have sent back the faulty product. revoCARE subscribers also receive Tier 2 service and technical support over the phone with Revolabs' support staff, in addition to free battery replacement on any battery that isn't lasting for at least 7 hours. A host of additional enterprise features are available for Executive HD users including being able to control and monitor your system via Ethernet.
In the Box Revolabs Fusion 4-Channel Telephony Hybrid with Wireless Microphone System with Gold revoCARE Remote Control 2 x Power Cords 3 x Omnidirectional Tabletop Microphones Lapel Microphone Charger Base Limited 3-Year Gold revoCARE Table of Contents
|
Upload User Manual
Have you got an user manual for the Revolabs Fusion 4-Channel Telephony Hybrid with Wireless Microphone System with Gold revoCARE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRevolabs 0104FUSION31G3Y Specs | | | Channels | 4 | | Radio Frequency | 1920 to 1930 MHz | | Range of Operation | 100' (30 m), Approximately, with No Obstructions
Out-of-Range Alarm | | Bandwidth | 100 Hz to 6.8 kHz | | | | Power | 24 V DC, 2.5 A Locking Power Connector
100-240 V, 50/60 Hz | | Connectors/Interfaces | IR Remote Serial DB9 Sensor
Audio Control RJ45 (Firmware Updates Only)
Telephone Line/Telephone Set-In RJ11
Network RJ45 (Firmware Updates Only)
Mic Level XLR Male Conference Out
Auxiliary In/Out Line Level RCA Plug
Record Out/Room Out Line Level RCA Plug
Conference In/Out Line Level RCA Plug | | | | Power | 5 V DC, 2 A
100-240 V, 50-60 Hz | | Connectors | 4 Proprietary 4-Pin Microphone Charge Jacks | | | | Battery | Lithium Polymer | | Talk Time | Up to 8 Hours | | Charge Time | 2 Hours | | Encryption | 128-Bit Proprietary (Per Mic Channel) | | RF Shield | Yes, RF Armor | | Mute | Mute Button for Muting and Pairing | | LED Indicator | Mute Status, Pairing, Battery Charge | | Charging | Proprietary 4-Pin |
