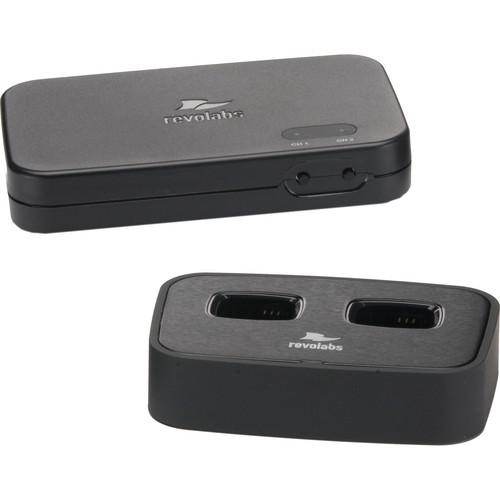

User Manual for Revolabs HD Dual-Channel Wireless Microphone System without Microphones Click to enlarge the picture
Contents of the user manual for the Revolabs HD Dual-Channel Wireless Microphone System
- Product category: Audio Conferencing Revolabs
- Brand: Revolabs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Revolabs Audio Conferencing
|
User manual for the Revolabs HD Dual-Channel Wireless Microphone System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Revolabs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Revolabs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Revolabs product will considerably shorten its lifespan!
|
Product description The Revolabs HD Dual-Channel Wireless Microphone System without Microphones is a versatile audio solution for video conferencing or voice reinforcement applications. Its small size allows for an easy and nonintrusive integration for audio solutions that require a limited number of wireless microphones. This system supports up to 2 HD audio wireless microphones.The HD Dual-Channel system utilizes Revolabs' Designed For Speech technology. This technology provides wideband frequency that improves the intelligibility and presence of speech, allowing the system to pick up the entire human voice spectrum. The technology consists of proprietary audio processing algorithms resulting in the accurate reproduction of human speech. It provides bi-directional audio, which allows audio to be sent back to the microphone so that you can listen using a headset.The HD Dual-Channel Wireless Microphone System is managed through a series of dip switches, allowing you to control the different audio options. The switches also allow you to select the level of the outputs, line level, or microphone level. You can select whether the microphone channels are mixed in the base unit to provide a mixed output, or whether the 2 channels are handled independent of each other, providing 2 separate outputs and inputs for the 2 channels. Additional settings let you control the transmission power mode used by the receiver, providing a higher density of HD systems in a given area where a lot of systems are required. The adjustable power reduces interferences between the systems. Finally, the dip switches allow you to activate filters and equalizers to further improve the audio transmitted by the microphones.The HD wireless system can be mixed and matched with a variety of HD wireless microphones (sold separately). This system consists of a base station and an HD wireless microphone charger base, allowing for support of 2 HD wireless microphones in High Definition mode. Additional benefits include a rechargeable battery providing up to 8 hours of talk time on a full charge. It takes approximately 2 hours to fully charge a battery. Enterprise users can move about their conference room and still be heard. - High-Quality Audio
- Wideband frequency response provides high-definition audio delivering spoken word clarity
- Wireless Freedom
- Lets users sit anywhere within a conference room or walk around freely
- Support for Multiple Microphones
- Wearable, tabletop boundary and handheld as well as Countryman Adapter for earset microphone (microphones are sold separately)
- No More Cell Phone Buzz
- RF Armor technology lets microphones operate even when in direct contact with other wireless electronic devices
- Secure
- 128-bit encryption means no one will be able to listen in on the signal sent between the microphone and base station
- Compact Design
- Suitable for mobile video carts, while also reducing the real estate required for audio equipment on tables
- Complete Control
- Control audio options such as level of the outputs, line level, and microphone level
- Rechargeable Battery
- Saves the expense of daily battery replacement and inconvenience of bulky battery packs
- Versatility
- Two units with four microphones can be installed in the same area to accommodate larger applications (microphones are sold separately)
In the Box Revolabs HD Dual-Channel Wireless Microphone System without Microphones HD Dual Charger Base HD Base Station 2 x 3.5mm to 3.5mm Cable 2 x 3.5mm to RCA Adapter 2 x Power Supply 3-Year Advance Hardware Replacement Warranty 3-Year Gold Service Plan Table of Contents
|
Upload User Manual
Have you got an user manual for the Revolabs HD Dual-Channel Wireless Microphone System without Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRevolabs 02HDDUALNM3Y Specs | | | Channels | 2 | | Radio Frequency | North and South America: 1,920 to 1,930 MHz
Africa, Asia, Australia, and Europe: 1,880 to 1,900 MHz (DECT EU)
Mainland China: 1,900 to 1,920 MHz
Japan: 1,893.5 to 1,906.1 MHz | | Range | 150' (45 m) approximate (no obstruction)
Out-of-range alarm | | Bandwidth | 50 to 14,000 Hz | | | | Power | 5 VDC, 1 A locking power connector
100 to 240 V, 50 to 60 Hz | | Connectors/Interfaces | Channel LED indicators
Pairing Push Buttons
USB port for firmware update only
8 x Configuration DIP Switches
Channel 1 Analog Output 3.5 mm balanced connector
Channel 2 Analog Output 3.5 mm balanced connector
Channel 1 Analog Input 3.5 mm balanced connector
Channel 2 Analog Input 3.5 mm balanced connector | | | | Power | 5 VDC, 1 A
100 to 240 V, 50 to 60 Hz | | Connectors | DC power input port
2 x proprietary 4-pin microphone charge jacks | | Dimensions (L x W x H) | Single/Dual Base Station: 5.19 x 3.25 x 1.00" (13.18 x 8.25 x 2.54 cm)
Single/Dual Charger Base: 4.60 x 3.12 x 1.00" (11.75 x 7.90 x 2.54 cm) | | Weight | Base Station: 0.32 lb (0.15 kg)
Charger Base: 0.32 lb (0.15 kg) |
