Product description - How To Obtain Revolabs Field Replaceable Batteries
The Revolabs HD Single-Channel Wireless Microphone System is an efficient audio solution for video conferencing or voice reinforcement applications. Its small size allows for an easy and non-intrusive integration for audio solutions that require a limited number of wireless microphones. This single-channel system supports 1 HD audio wireless microphone (sold separately).
The HD Single-Channel System utilizes Revolabs' Designed For Speech technology. This technology provides wideband frequency which improves the intelligibility and presence of speech, allowing the system to pick up the entire human voice spectrum. The technology consists of proprietary audio processing algorithms resulting in the accurate reproduction of human speech. As with the other HD systems, this single-channel system provides bi-directional audio, which allows audio to be sent back to the microphone so that you can listen using a headset.
The HD Single-Channel Wireless Microphone System is managed through a series of dip switches allowing you to control the different audio options. The switches also allow you to select the level of the outputs, line level, or microphone level. Additional settings let you control the transmission power mode used by the receiver, providing a high density of HD systems in a given area where a lot of systems are required. The adjustable power reduces interferences between the systems. Finally, the dip switches allow you to activate filters and equalizers to further improve the audio transmitted by the microphones.
This HD single-channel wireless system can be mixed and matched with a variety of HD wireless microphones (sold separately). Offered separately, the microphones are sleek in design and come in several styles: wearable, tabletop directional, tabletop omni-directional, XLR adapter for handheld microphones, and adapters for Countryman microphones. Revolabs microphones and adapters are easy to use. You can just remove the microphone from the charger base, un-mute, and talk.

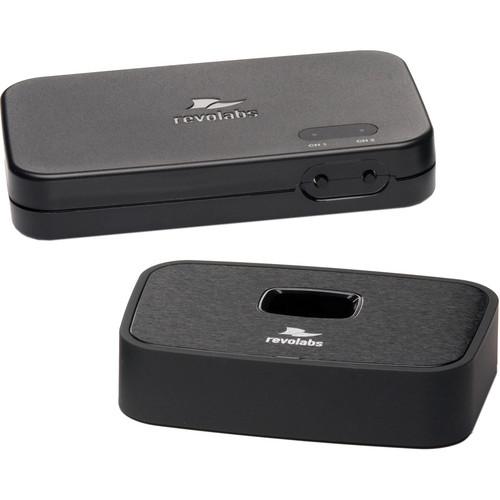

The HD Single-Channel Wireless System consists of a base station and an HD wireless microphone charger base. Additional benefits include a rechargeable battery providing up to 8 hours of talk time on a full charge. It takes approximately 2 hours to fully charge a battery. Also, as the system is wireless, enterprise users can move about their conference room and still be heard. - Audio Quality
- Wideband frequency response provides high-definition audio delivering spoken word clarity
- Wireless Freedom
- Lets you sit anywhere within a conference room or walk around freely
- Support for Multiple Microphones
- Wearable, tabletop boundary, and handheld, as well as Countryman adapter for earset mic
- No More Cell Phone Buzz
- RF Armor technology lets microphones, operate cleanly even when in direct contact with other wireless electronic devices
- Secure
- 128-bit encryption prevents anyone from listening in
In the Box Revolabs HD Single-Channel Wireless Microphone System Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Revolabs HD Single-Channel Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRevolabs 02-HDSGL-NM Specs | | | Channels | 1 or 2 channels per system | | Radio Frequency | 1,920 to 1,930 MHz | | Range | 150' (45 m) approximately (no obstruction)
Out-of-range alarm | | Bandwidth | 50 to 14,000 Hz | | | | Power | 5 VDC, 1 A power connector
100 to 240 V, 50 to 60 Hz | | Connector / Interface | Channel LED indicators
Pairing push buttons
USB port for firmware update only
Configuration DIP switches (8)
Channel 1 analog output 3.5 mm balanced connector
Channel 1 analog input 3.5 mm balanced connector
| | | | Power | 5 VDC, 1 A
100 to 240 V, 50 to 60 Hz | | Connectors | DC power input port
1 proprietary 4-pin microphone charge jack | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 8.9 x 6.6 x 3.6" |
