User Manual for Revolabs HD Venue 2-Channel Rack-Mount System without Microphones Click to enlarge the picture
Contents of the user manual for the Revolabs HD Venue 2-Channel Rack-Mount System
- Product category: Audio Conferencing Revolabs
- Brand: Revolabs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Revolabs Audio Conferencing
 |
User manual for the Revolabs HD Venue 2-Channel Rack-Mount System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Revolabs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Revolabs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Revolabs product will considerably shorten its lifespan!
|
Product description - Product Demo
- How To Obtain Revolabs Field Replaceable Batteries

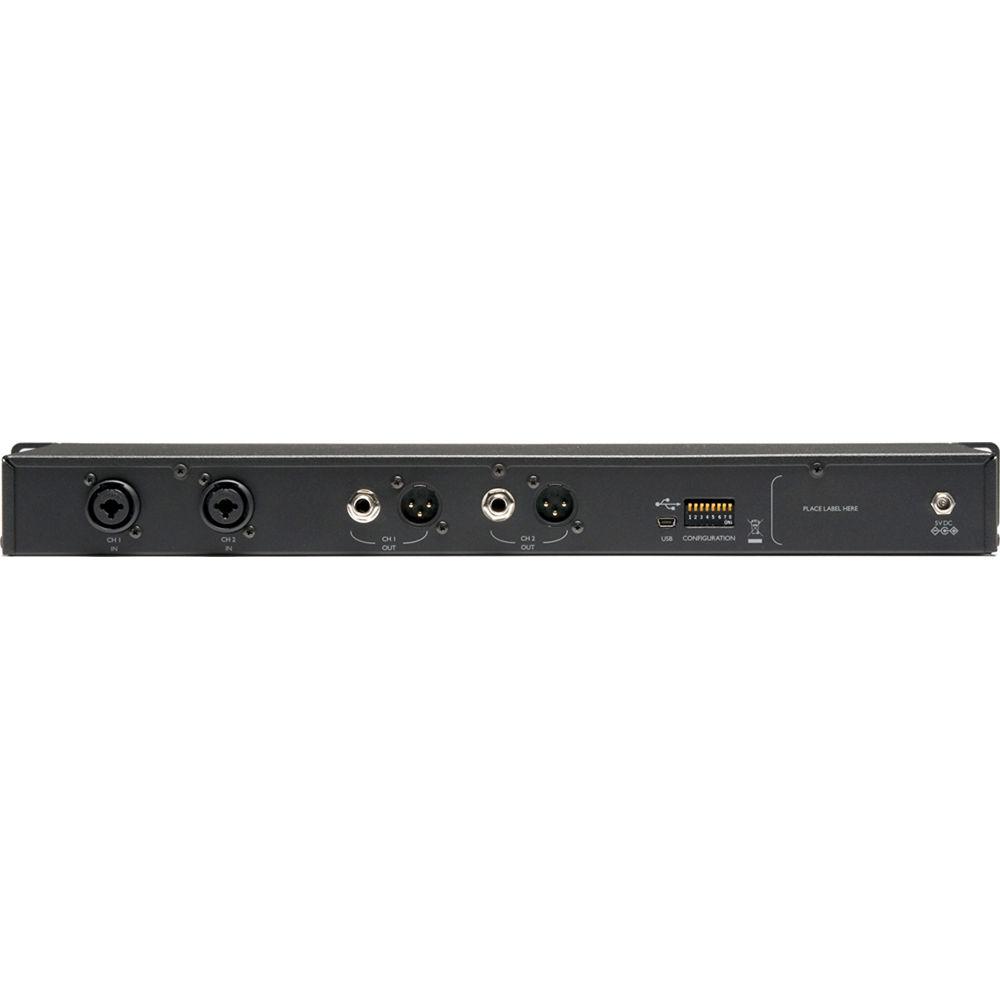

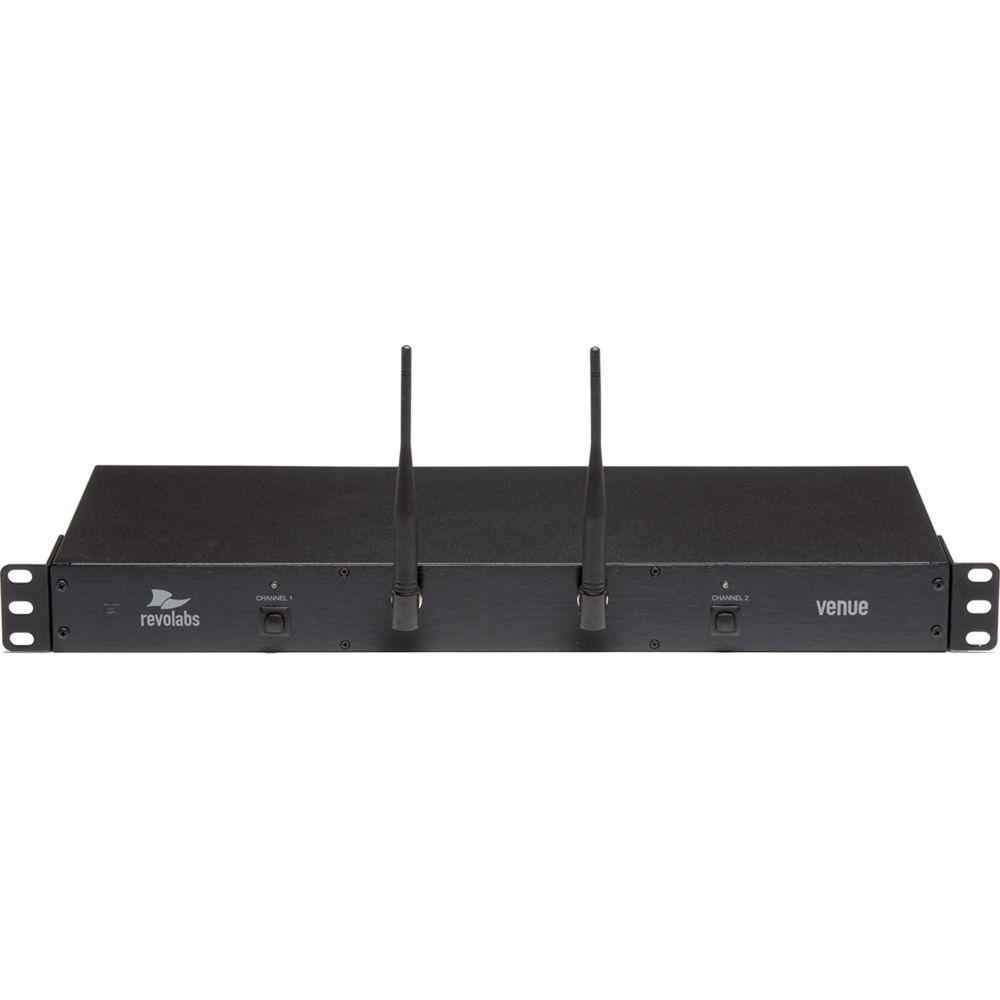

The Revolabs HD Venue 2-Channel Rack-Mount System comes without microphones. This allows you to mix and match which wearable, tabletop, omni and directional HD Wireless Microphones you need. The HD Venue 2-Channel System is ideal for audio conferencing, video conferencing, education, houses of worship, installed audio, professional audio and rental/staging applications. It features dual female 1/4" balanced output connectors and dual male XLR balanced output connectors, as well as dual female XLR and 1/4" balanced combo input connectors. There's also a USB port on both the base station and charger base, which is for firmware updates only.The HD Venue System is equipped with antennas, channel LED indicators, pairing push buttons and a rack-mount bracket. It has a wireless transmission range of up to 300 feet (91 m) and features full frequency response. It's also impervious to GSM noise from cell phones and other devices. The base station is housed in a full metal enclosure that is rack-mountable. The charger base features dual proprietary 4-pin microphone charge jacks that work with HD Wireless Mics. The system supports both North American and international radio frequencies. Plus, it even comes with a universal 100 - 240 V, 50/60 Hz power supply for worldwide use. - Ideal for audio conferencing, video conferencing, broadcasting, education, houses of worship, installed audio, professional audio and rental/staging applications
- Rack-mountable with full metal enclosure
- Choice of XLR or 1/4" analog inputs and outputs
- Ability to mix both inputs and outputs into 1 line or mic level
- Impervious to GSM noise from cell phones and other devices
- Features full frequency response
- Mix and match HD wireless microphones (sold separately)
In the Box Revolabs HD Venue 2-Channel Rack-Mount System without Microphones HD Venue Base Station HD Venue Charger Base Power Supply Rack-Mount Hardware Set 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Revolabs HD Venue 2-Channel Rack-Mount System without Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRevolabs 01-HDVENU-NM Specs | | | Audio Bandwidth | 50 - 20,000 Hz | | Channels | 2-channels (system) 4-channels (maximum in one area) | | Radio Frequency | North America: 1.92 to 1.93 GHz (UPCS North America) International: 1.88 to 1.90 GHz (DECT EU) | | Radio Protocol | Digital (automatic channel selection) | | Transmission Range | Approximately 300' (91 m) (Actual range depends on RF signal absorption, reflection & interference) | | LED Indicator | Yes (channel indicator) | | Diversity Antennae | Yes (SMA plug - 50 ohms) | | Buttons | Yes (pairing push buttons) | | Bracket | Yes (rack-mount bracket) | | Configuration Switch | Configuration switches (DIP) x 8 | | Power Connector | AC-IN (power input port) | | USB Port | Yes (mini-USB serial interface for firmware updates only) | | Input Connectors | Female XLR and 1/4" (6.35 mm) balanced combo jacks x 2 | | Output Connectors | Female 1/4" (6.35 mm) balanced jacks x 2 Male XLR balanced jacks x 2 | | | | USB Port | Yes (for firmware updates only) | | Power Connector | DC-IN (power input port) | | Charge Connector | Proprietary 4-pin microphone charge jacks x 2 | | | | Power Requirements | HD Venue Base Station: universal 100 - 240 V, 50/60 Hz inputs (5W) HD Charger Base Station: universal 100 - 240 V, 50/60 Hz inputs (5W) | | Operating Temperature | 40 to 100°F (5 to 40°C) | | Operating Humidity | 20 to 85% | | Dimensions (WxHxD) | HD Venue Base Station: 16.9 x 1.7 x 8.0" (43.0 x 4.4 x 20.3 cm) HD Charger Base Station: 4.6 x 1.0 x 3.1" (11.8 x 2.5 x 7.9 cm) | | Weight | HD Venue Base Station: 2.0 lb (907.2 g) HD Charger Base Station: 5.2 oz (147.4 g) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 21.0 x 12.0 x 4.0" |
