Product description

• Revolabs HD Single-Channel Wireless Microphone System
  • How To Obtain Revolabs Field Replaceable Batteries

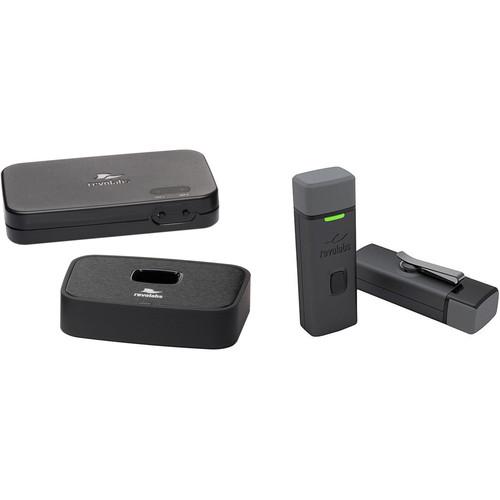

  The Revolabs HD Single-Channel Wireless Microphone System is an efficient audio solution for video conferencing or voice reinforcement applications. Its small size allows for an easy and non-intrusive integration for audio solutions that require a limited number of wireless microphones. This single-channel system supports 1 HD audio wireless microphone (sold separately).

  The HD Single-Channel System utilizes Revolabs' Designed For Speech technology. This technology provides wideband frequency which improves the intelligibility and presence of speech, allowing the system to pick up the entire human voice spectrum. The technology consists of proprietary audio processing algorithms resulting in the accurate reproduction of human speech. As with the other HD systems, this single-channel system provides bi-directional audio, which allows audio to be sent back to the microphone so that you can listen using a headset.

  The HD Single-Channel Wireless Microphone System is managed through a series of dip switches allowing you to control the different audio options. The switches also allow you to select the level of the outputs, line level, or microphone level. Additional settings let you control the transmission power mode used by the receiver, providing a high density of HD systems in a given area where a lot of systems are required. The adjustable power reduces interferences between the systems. Finally, the dip switches allow you to activate filters and equalizers to further improve the audio transmitted by the microphones.

  This HD single-channel wireless system can be mixed and matched with a variety of HD wireless microphones (sold separately). Offered separately, the microphones are sleek in design and come in several styles: wearable, tabletop directional, tabletop omni-directional, XLR adapter for handheld microphones, and adapters for Countryman microphones. Revolabs microphones and adapters are easy to use. You can just remove the microphone from the charger base, un-mute, and talk.

  The HD Single-Channel Wireless System consists of a base station and an HD wireless microphone charger base. Additional benefits include a rechargeable battery providing up to 8 hours of talk time on a full charge. It takes approximately 2 hours to fully charge a battery. Also, as the system is wireless, enterprise users can move about their conference room and still be heard.
  Audio Quality
  • Wideband frequency response provides high-definition audio delivering spoken word clarity
  Wireless Freedom
  • Lets you sit anywhere within a conference room or walk around freely
  Support for Multiple Microphones
  • Wearable, tabletop boundary, and handheld, as well as Countryman adapter for earset mic
  No More Cell Phone Buzz
  • RF Armor technology lets microphones, operate cleanly even when in direct contact with other wireless electronic devices
  Secure
  • 128-bit encryption prevents anyone from listening in
• Revolabs Executive HD Wearable Wireless Microphone with Clip
  • How To Obtain Revolabs Field Replaceable Batteries
  The Revolabs Executive HD Wearable Microphone features a rotatable clip for mounting on clothing, shirt lapels, pockets, etc. The microphone reproduces speech with CD quality fidelity and is intended for use with the Revolabs Executive HD wireless microphone system. With its internal lithium rechargeable battery, there are no batteries to change. Eight hours of operation is achieved on a single 2 hour charge.
  • CD quality audio reproduction
  • 8 Hours of operation on a single 2 hour charge
  • Rotating clothing Clip
  • Mute switch and LED
  UPC: 501050188927

• HD Single-Channel Wireless Microphone System wfyfxbzwua
• Power Supply
• Limited 1-Year Warranty

• Executive HD Wearable Wireless Microphone with Clip

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Revolabs HD Single-Channel Wireless Microphone System

  Channels	1 or 2 channels per system
  Radio Frequency	1,920 to 1,930 MHz
  Range	150' (45 m) approximately (no obstruction) Out-of-range alarm
  Bandwidth	50 to 14,000 Hz

  Power	5 VDC, 1 A power connector 100 to 240 V, 50 to 60 Hz
  Connector / Interface	Channel LED indicators Pairing push buttons USB port for firmware update only Configuration DIP switches (8) Channel 1 analog output 3.5 mm balanced connector Channel 1 analog input 3.5 mm balanced connector

  Power	5 VDC, 1 A 100 to 240 V, 50 to 60 Hz
  Connectors	DC power input port 1 proprietary 4-pin microphone charge jack

  Box Dimensions (LxWxH)	8.9 x 6.6 x 3.6"

• Revolabs Executive HD Wearable Wireless Microphone with Clip

  Battery	Lithium 8 Hours of Operation, full charge in 2 hours
  Frequency Response	50Hz to 20kHz
  Encryption	128-Bit
  Radio Frequency	1.92 to 1.93GHz
  Dimensions	2.8 x 1 x 0.69" (7.2 x 2.5 x 1.75cm)
  Weight	0.07 lb (0.03 kg)

  Box Dimensions (LxWxH)	5.0 x 2.0 x 2.0"
