Product description The 58microLite HD 5.8 GHz Mini Transmission Kit from RF Central is a portable, broadcast-grade HD/SD-SDI MPEG-4 COFDM wireless transmission system that supports resolutions up to 1080p at 30 fps. The kit is comprised of a transmitter, receiver, and the necessary antennas and power cables. Based on COFDM modulation and operating on the 5.8GHz band, the system is capable of delivieriny non-line-of-sight transmission, with a line-of-sight transmission range up to 10,500' using optional extended range receiver antennas.

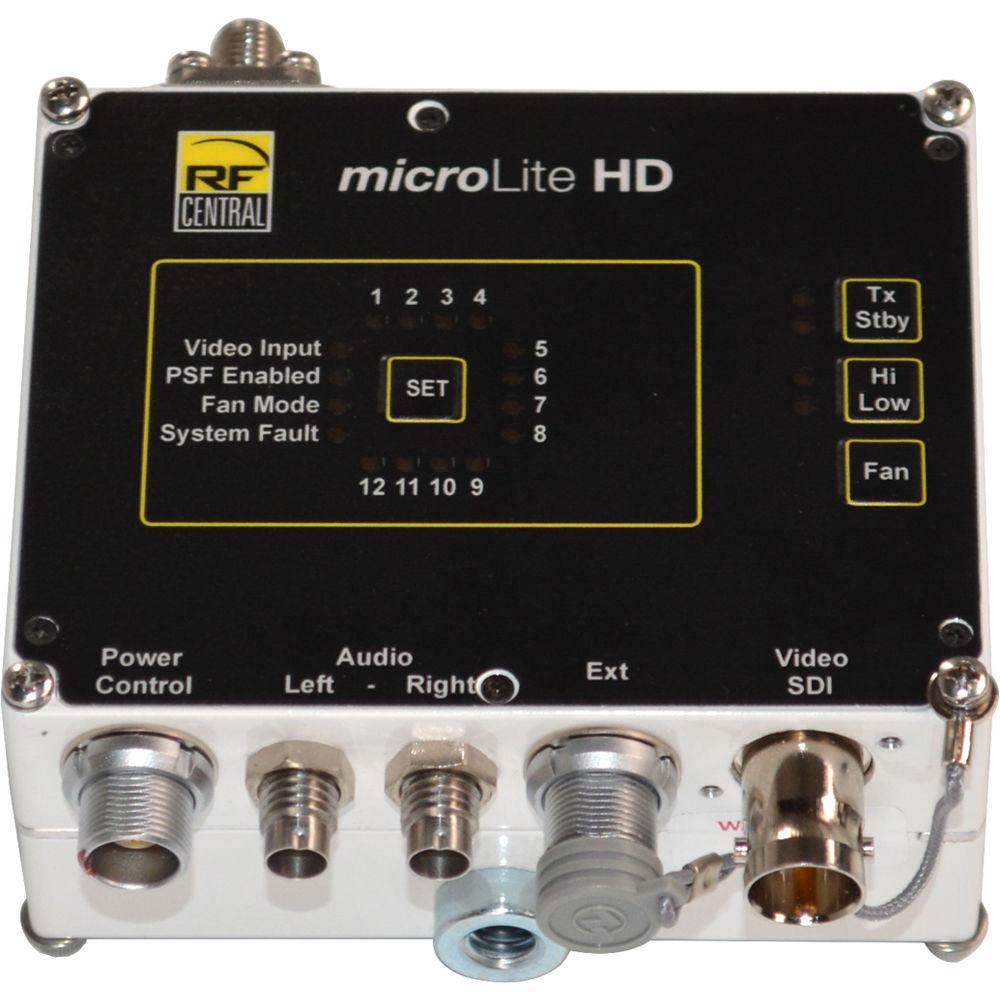

At the heart of the system is the microLite HD Transmitter, which is compact and lightweight at only 8 oz, making it ideal for UAV applications as well as live news-gathering, reality TV, EFP/OB, and other live event coverage. It can be mounted directly to your camera's shoe mount and offers twelve selectable presets to quickly change channels and operating parameters. Settings can be configured through the Windows-based graphical user interface.

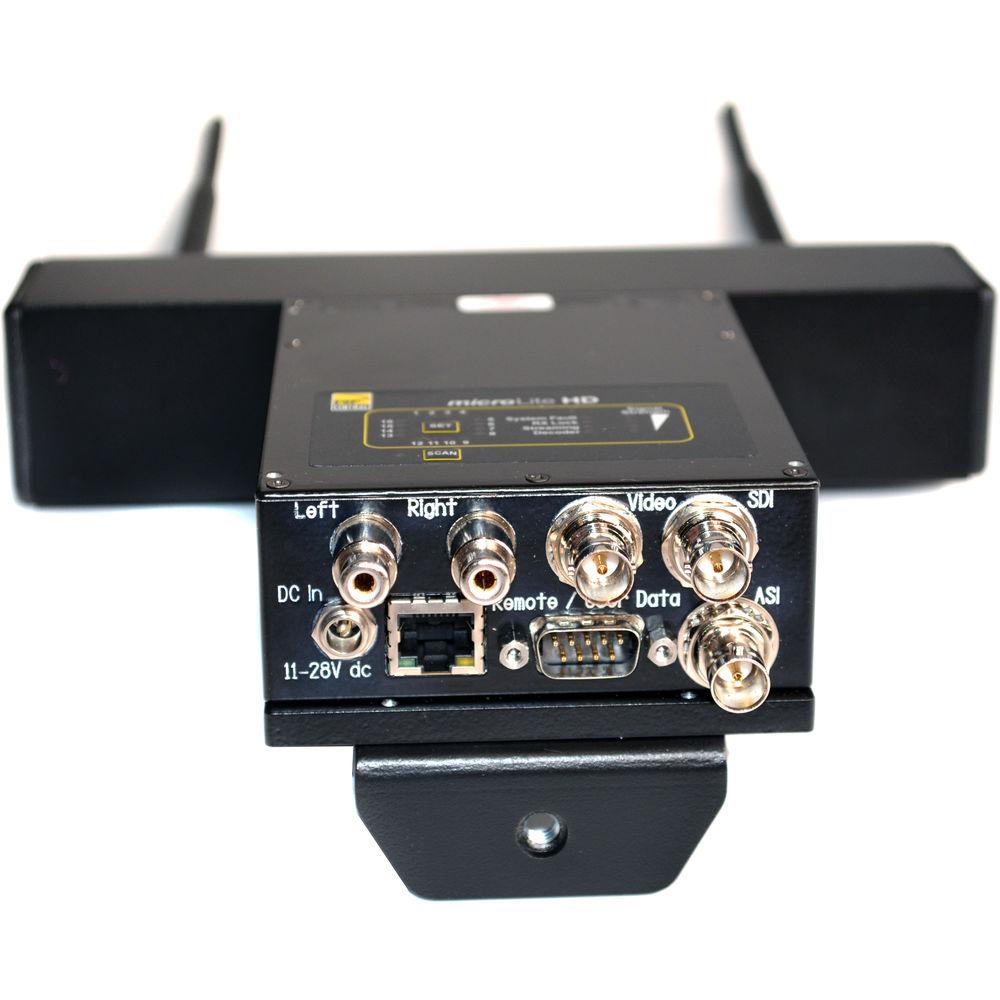

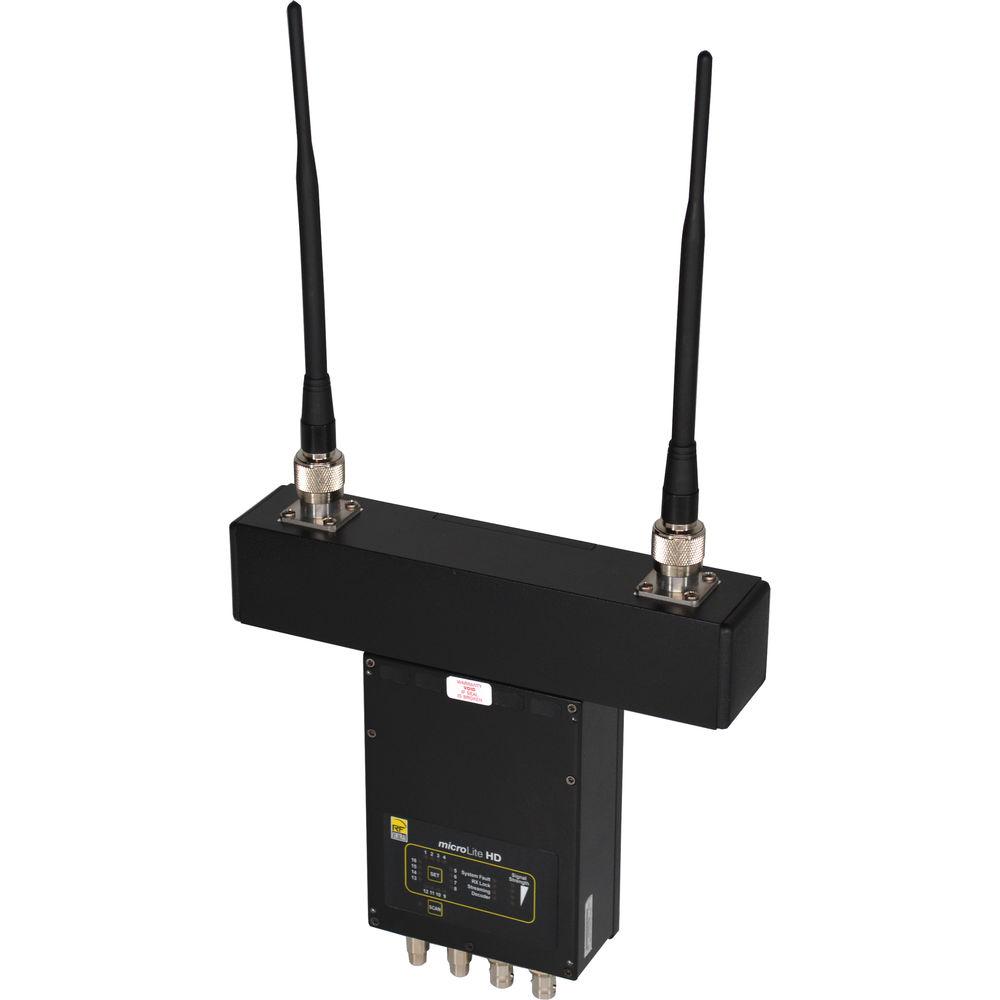

The microLite Receiver is a dual-diversity COFDM receiver that uses maximal-ratio combining technology to enable line-of-sight as well as non-line-of-sight applications. The Receiver features MPEG-4/MPEG-2 auto-detect video and embedded audio decoding and comes in a compact, self-contained package for portability. With no block down converter or complicated interconnects, the receiver is quick to setup and easy to use. - Key Feautres
-
- 5.8 GHz band
- Capable of non-line-of-sight transmission
- Line-of-sight transmission distance of 10,500' (using separately available extended receiver antennas)
- HD/SD-SDI with embedded audio
- COFDM, maximal-ratio combining diversity receiver
- MPEG4 H.264 part 10 encoding
- Compact, lightweight transmitter with hot shoe mounting (8 oz)
- Transmitter shot mount
- IP streaming receiver
- Ethernet stream grab and record
- Receiver 1/4"-20 tripod mount
- Twelve systems can operate simultaneously
- Twelve configurable presets
- Low-power usage
- 110 to 240V AC power adapter
- Cables: SDI, Power to P-Tap, programming adapter, configuration, and AC power

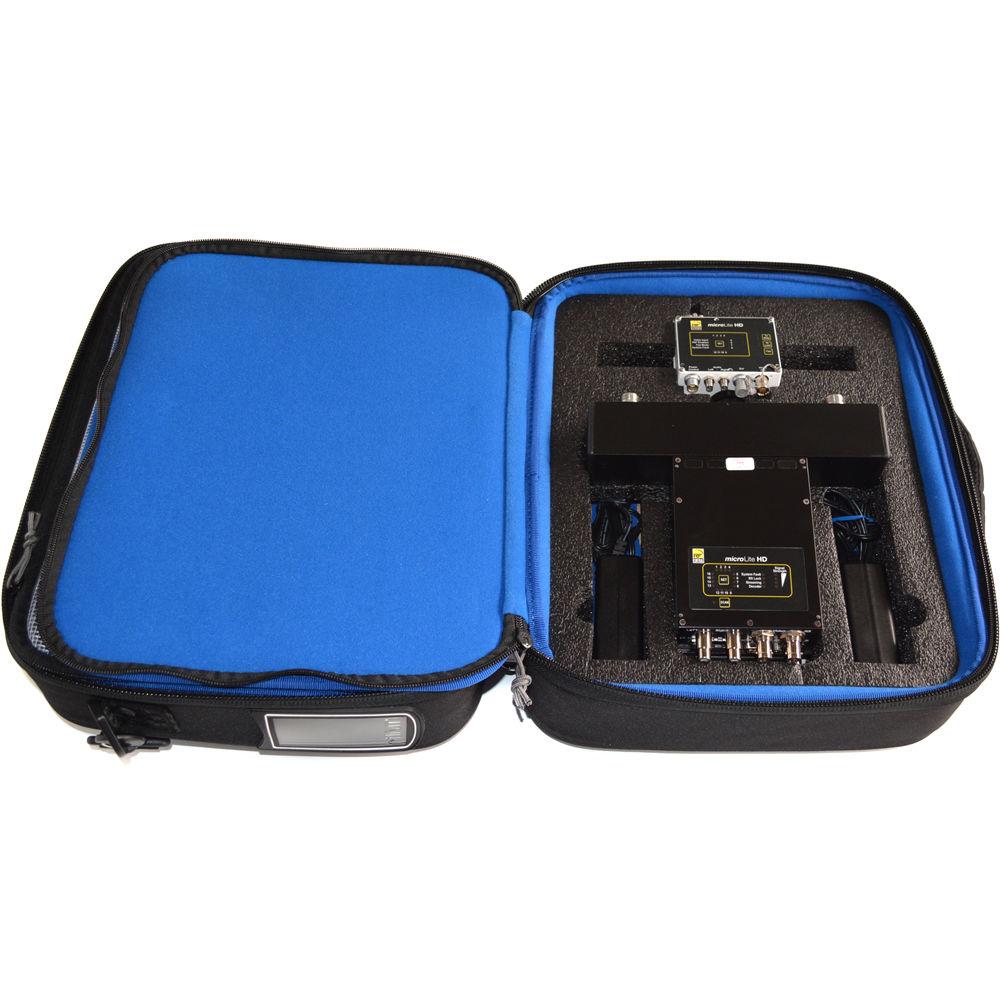

In the Box RF CENTRAL 58microLite HD 5.8 GHz Mini Transmission Kit Transmitter Receiver Omnidirectional Transmit Antenna 2 x Receive Antennas 12" SDI Cable 12" Power to D-Tap Cable Programming Adapter Cable Configuration Cable ¼"-20 Tripod Mount 110 to 240 VAC Power Adapter AC Power Cable Soft Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF CENTRAL 58microLite HD 5.8 GHz Mini Transmission Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF CENTRAL MICROLITE LITE Specs | | | Bands | 5.8 GHz ISM band | | Modulation | Modulation Formats: COFDM (DVB-T 2K)
Bandwidth: 6, 7, and 8 MHz
Non-Standard Bandwidth: 1.25, 2.5, and 5 MHz (optional) | | Supported Video Formats | High Definition:
SMPTE 292M BT.1120
SMPTE 296M 720p: 23.98 / 24 / 50 / 59.94 / 60
SMPTE 274M 1080i: 50 / 59.94
1080p 23.98 / 24 / 25 / 30 / 29.97
1080psf 23.98 / 24 / 25 / 29.97
Standard Definition:
SMPTE 259M BI.656
NTSC: 720 x 480i SMPTE244
PAL: 720 x 576i IEC61179-5 | | Audio I/O | Analog Audio Channels: One stereo or two mono standard
Analog Audio Level: One Vpp single-ended into 10 kΩ | | Channels | Two embedded channels
SDI (SD SMPTE 272M, HD SMPTE 299M)
48kHz 16-bit Stereo linear PCM | | Operating Environment | Ambient: 14 to 122°F (-10 to +50°C)
Storage: -40 to 1760°F (-40 to +80°C)
Humidity: 0 to 95% Non-condensing | | System | Low Latency Mode: < 4 Frames for i and p formats, < 5 Frames for PSF formats
User Data: RS232 300-115k Baud
Remote Control: RS232 (Rx,Tx) or Ethernet (Rx)
Local Control: Push button / LED
Preset: 12 User-configurable presets through Windows GUI | | Power Requirements | Input Range: DC +9 to +28
Power Consumption: 12 W (Rx), 9 W (Tx) | | | | Connectors | BNC: HD/SD-SDI with embedded audio, composite video
7-pin LEMO power
USB
Serial control / User data
5-pin LEMO special function
4-pin Analog audio mic/line
SMA-RP RF output | | Mounting | 1/4"-20 Two places | | Dimensions (H x W x L) | 1.6 x 3.1 x 2.4" (4.0 x 7.8 x 6.1 cm) | | Weight | 8 oz (226.8 g) | | | | Connectors | BNC: HD/SD-SDI with embedded audio, composite video
BNC: ASI (MPEG-TS)
9-pin D serial control user data
3.1 mm Barrel DC power
Two RCA line audio
RJ45 Web server, RTSP server
Type N-F
Two RF input | | Mounting | 1/4"-20 | | Dimensions (H x W x L) | 1.5 x 8.3 x 6.8" (3.8 x 21.2 x 17.1 cm) | | Weight | 13 oz (368 g) | | | | Package Weight | 11.7 lb | | Box Dimensions (LxWxH) | 16.6 x 14.3 x 10.7" |
