Product description The Mini MobilCMDR Handheld COFDM HD/SD Receiver/Monitor from IMT provides wireless HD video transmission with MPEG-2/MPEG-4 decoding and IP streaming via Ethernet. This durable, weather-resistant receiver/monitor features rubber handgrips, 1 1/4"-20 threaded mount, and an internal battery with a two-hour run time. An NPF-570 type battery will extend operating time to four hours. Two NPF-570 type batteries and a dual charger are included with the Mini Mobil CMDR. Designed for public security monitoring or covert surveillance, the Mini Mobil CMDR features AES Bcrypt decryption for secure HD video transmission. The integrated touchscreen LCD monitor features a 16:9 aspect ratio, and an HDMI output for viewing on an external monitor (not included). This wireless receiver/monitor displays HD video at rates up to 1080p/29.97. Use the included software to configure up to 32 presets, and for advanced functions like changing frequency plans, configuring AES decryption keys, and naming units. Additional features include an RF spectrum viewer, a scan function, a web GUI, a tabletop kickstand, and a headphone jack. Key Features - Receiver
- Dual input COFDM (Coded Orthogonal Frequency Division Multiplexing) diversity receiver with maximal-ratio-combining for increased signal strength
- MPEG Decoder
- Auto-detected SD/HD MPEG-4 (H.264) and MPEG-2 decoding, broadcast-quality output
- Configurable Presets
- 32 user-configurable value presets for reliable, repeatable use
- Spectrum Viewer
- RF spectrum viewer function
- Monitor Features
- Weather-resistant design, integrated kickstand for tabletop use, 1/4"-20 threaded mount, rubberized handgrips
- Battery
- Built-in battery with two-hour run time, external battery extends operating time to four hours
- IP Streaming
- MPEG-TS IP streaming via Ethernet enables remote viewing
- Output
- Video, audio, data and telemetry output; HDMI output for viewing on a larger, external monitor (not included)
- Encryption
- Designed with AES Bcrypt decryption, the Mini Mobil CMDR is suitable for public security monitoring or covert surveillance
- Administration Software
- Use the included software to configure AES decryption keys and up to 32 lockable presets, change frequency plans, and name units
- Additional Features
- Scan function, narrow band reception, web GUI

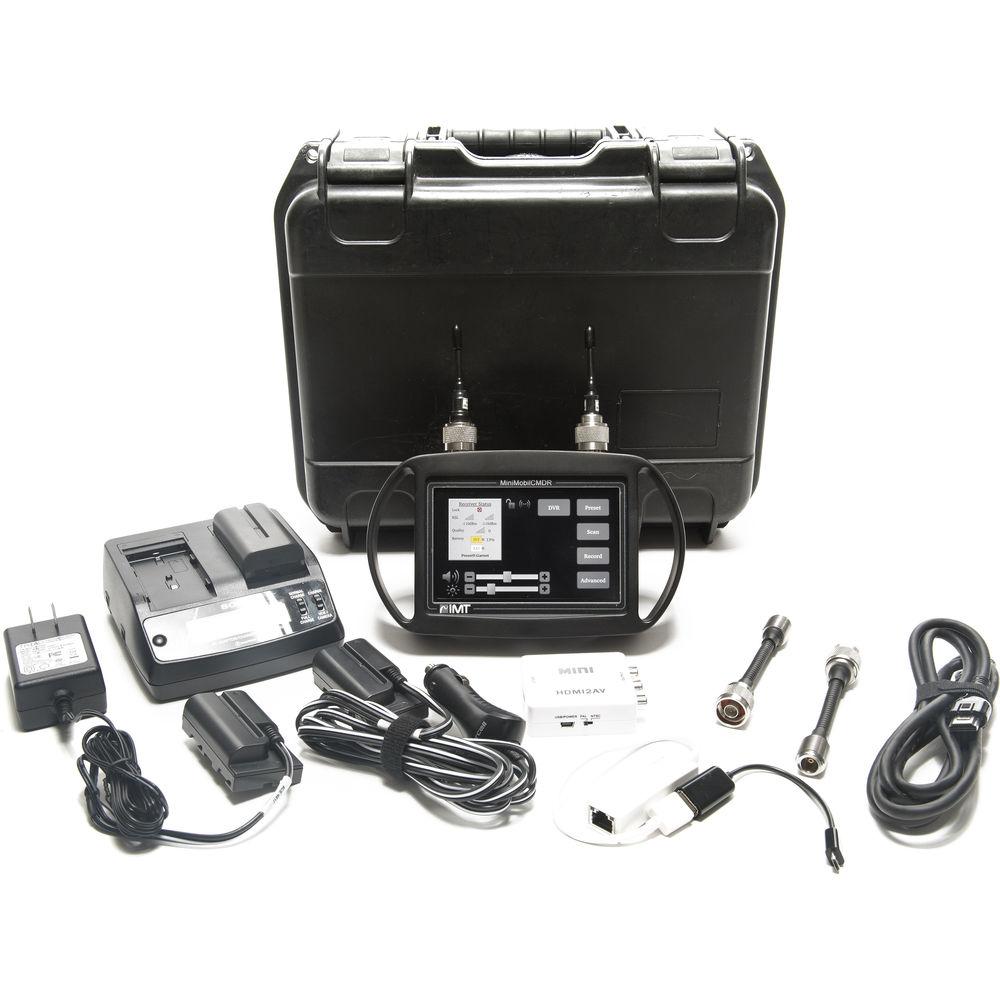

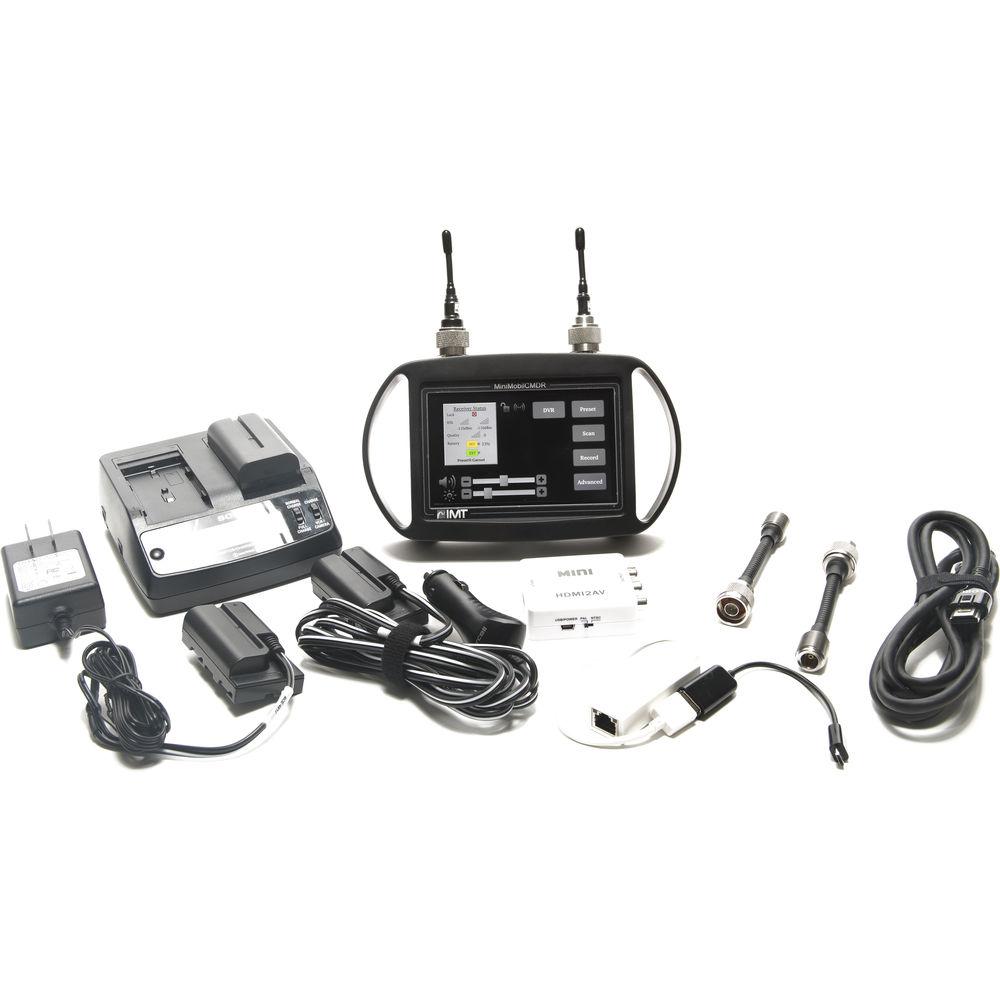

In the Box RF CENTRAL Mini MobilCMDR Handheld COFDM HD/SD Receiver/Monitor 2 x Omni Antennas (2 dBi) 2 x NPF-570 Type Batteries Dual Battery Charger Vehicle Power Adapter Micro-USB to Ethernet Adapter AC Power Supply DC Power Supply USB Cable eConn Configuration Software Hard-Shell Carrying Case Table of Contents
|
Upload User Manual
Have you got an user manual for the RF CENTRAL Mini MobilCMDR Handheld COFDM HD SD Receiver Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF CENTRAL MINIMOBILE COMMANDER Specs | | | Display Screen Type | Touchscreen LCD | | Aspect Ratio | 16:9 | | | | RF Performance Monitoring | Base Part Number:
18MMCR: 1.700 to 2.350 GHz, <10 w
23MMCR: 2.200 to 2.400 GHz, <10 w
47MMCR: 4.400 to 5.000 GHz, <10 w
65MMCR: 6.425 to 6.525 GHz, <10 W | | Tuning | Step Size: 250 kHz standard | | Frequency Stability | ±2.5 ppm | | Demodulation Modes | Modes are auto-detected within modulation format and bandwidth | | Modulation Formats | Modulation 1:
Modulation Formats: COFDM (DVB-T)
DVB-T: Supports all GI, CR, and modulation
Carriers: 2K
Bandwidth: 6/7/8 MHz
Modulation Formats: COFDM
Carriers: 2K
Constellation: QPSK
Code Rate: 1/2, 3/4
Guard Interval: 1/32
Bandwidth: 2.5 MHz, 1.25 MHz (SR Scaled DVB-T) | | Diversity | Channels: 2 x channels maximum ratio combining | | | | Video | Method: Auto-detects MPEG-2, MPEG-4 Part 10/H.264
Video Decoding Support: MPEG-4 Part 10/H.264/AVC, MPEG-2
Profile: High, main | | HD Formats | All (4:2:0)
1080p: 29.97/25/24/23.98
1080i: 29.97/25
720p: 59.94/50/24/23.98 | | SD Format Support | NTSC: 720 x 480
PAL: 720 x 576 | | | | Audio Coding | ISO/IEC 11172-3 (layer I/II) | | Audio Output | 1 x 3.5 mm headphone jack | | | | Decryption (optional) | AES 128/256-bit BCRYPT 1/2
(FIPS PUB 197) | | Ethernet | Stream TSoIP UDP/RTP
RTSP
Unicast and multicast
WEB control | | Control | Touchscreen | | User Data Output | Serial over Ethernet (UDP) | | Recording | 32/64 GB | | | | Input Range | 9-28 VDC | | Power Consumption | <10 W | | | | Temperature & Humidity | Full Specification: -4 to 140°F (-20 to 60°C)
Storage: -40 to 176°F (-40 to 80°C)
Humidity: 0 to 95% non-condensing | | Dimensions (WxHxD) | Case: 5.5 x 11.0 x 13.5" (14.0 x 27.9 x 34.3 cm)
Unit: 7.66 x 4.44 x 1.34" (19.46 x 11.28 x 3.4 cm) | | Ingress Protection Rating | Case: IP66 | | Connectors | Video Output: 1 x HDMI
Programming: 1 x micro-USB
Headphone: 1 x 3.5 mm jack
DC Power: 1 x 2.5 mm barrel | | Weight | <3 lb (<1.4 kg) |
