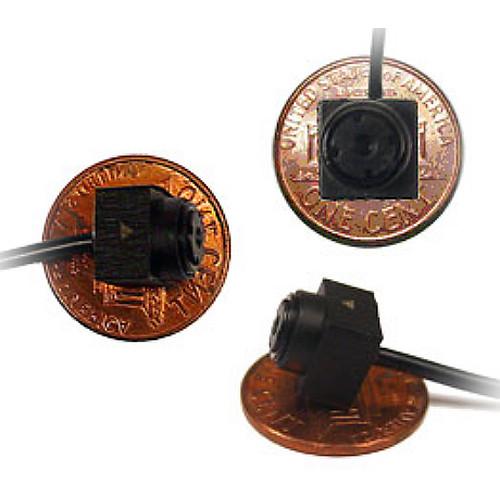

User Manual for RF-Links 240 TVL B&W Mini Video Camera with 3.5mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the RF-Links 240 TVL B&W Mini Video
- Product category: Wired Analog & HD Cameras RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wired Analog & HD Cameras
|
User manual for the RF-Links 240 TVL B&W Mini Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The RF Video 240 TVL B&W Mini Video Camera features a 1/4" sensor and 3.5mm fixed lens for capturing videos at a maximum resolution of 240 TVL. With a minimum illumination requirement of 0.5 lux, it can capture footage in low-light conditions. Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links 240 TVL B&W Mini Video Camera with 3.5mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links CMX-408 Specs | Image Sensor | 1/4" | | Video System | CCIR / EIA | | Number of Effective Pixels | 510 x 492 (EIA)
500 x 582 (CCIR) | | Scanning System | 2:1 interlace | | Resolution | 240 TVL | | S/N Ratio | More than 46 dB | | Minimum Illumination | 0.5 lux at f/1.4 | | Electronic Shutter | 1/50 to 1/6,000 sec | | Sync Frequency | Horizontal: 15.734 kHz (EIA) / 15.625 kHz (CCIR)
Vertical: 60 Hz (EIA) / 50 kHz (CCIR) | | Gamma Consumption | 0.45 | | Video Output | V p-p. 75 Ohms composite | | Audio Output | 20 to 16000 Hz, S/N more than 58 dB (Optional) | | Lens | 3.5mm/f/2.6 | | Power Supply | 12 VDC | | Power Current | 20 mA maximum | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Working Temperature | 14 to 113°F (-10 to 45°C) | | Dimensions | 0.33 x 0.33 x 0.33" (8.5 x 8.5 x 8.5 mm) | | Weight | 0.35 oz (10 g) |
