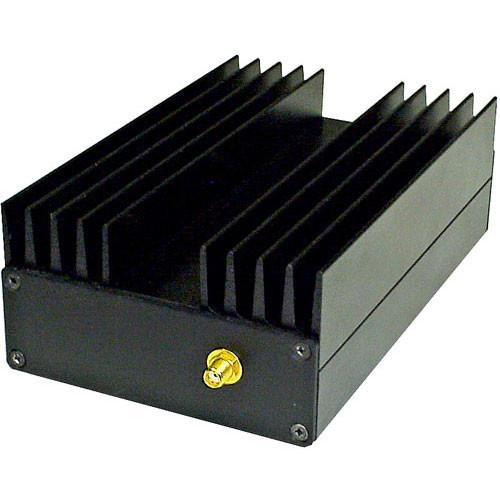

User Manual for RF-Links AMP-960XL 4 Watt High Power 960 MHz UHF Amplifier Click to enlarge the picture
Contents of the user manual for the RF-Links AMP-960XL 4 Watt High Power
- Product category: Wireless Transmission RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission
|
User manual for the RF-Links AMP-960XL 4 Watt High Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The RF-Video AMP-960XL is a high power amplifier that can be used to boost the wireless signals of any data or radio transmitter operating in the 890-960 MHz frequency range. Amplified wireless signals translate into improved video and audio quality transmissions over greater wireless distances. Its durable design along with its ability to tolerate high and low temperature extremes make it particularly well suited for use in military and ATV monitoring applications. Note: Antenna sold separately (BNC-type) - Improved video and audio quality over greater wireless distances
- Thermal protected design ideal for ATV and military applications
- 50mW minimum power input, 4 Watt maximum power output
- Accepts standard BNC type antennas
- Built-in band-pass filter
- Operates on optional battery power (12V)
In the Box RF-Links AMP-960XL 4 Watt High Power 960 MHz UHF Amplifier 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links AMP-960XL 4 Watt High Power 960 MHz UHF Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links AMP-960XL Specs | Frequency | 890-960 MHz | | Operating Class | Linear AB | | RF Power Output | 4W | | Gain | 26dB | | Input Power | 50mW | | Antenna | BNC-Type (sold separately) | | Impedance | 50 ohms | | Power Requirements | 12 VDC | | Power Consumption | 1.6A | | Operating Temperature | -13 x 167°F (-25 ~ +75°C) | | Dimensions (WxHxD) | 2.6 x 1.6 x 4.7" (66 x 41 x 119mm) | | Weight | 8.8 oz (250 g) |
