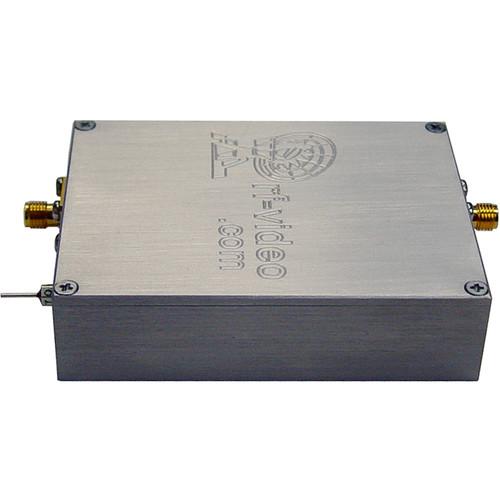

Product description The AMP10-100 Wideband Linear Amplifier from RF Video covers the entire VHF-UHF band and operates from 10 MHz to 1 GHz. It requires 12-24 VDC / 1.2A supply and a minimum driving input of 10mW. This amplifier can be used for applications like lab testing, digital and analog RF and TV broadcasting. In the Box RF-Links AMP10-100 Wideband Linear Amplifier Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links AMP10-100 Wideband Linear Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links AMP-10-100BX Specs | Operating Frequency | 10 to 1 GHz | | Gain | 28 dBi (depends on frequency; maximum 31.5 dB) | | Impedance | Input/Output: 50 ohms | | Input Power | Maximum 30 mW (28 dB) | | Output Power | @1 dB:
From 50 to 500 MHz: Minimum 6 W (37.8 dBm) (CW)
From 500 to 900 MHz: Minimum 4 W (36 dBm) (CW)
@3 dB:
From 50 to 500 MHz: Minimum 8 W (39 dBm) (CW)
From 500 to 900 MHz: Minimum 6 W (37.8 dBm) (CW)
COFDM: Minimum 1 W (30 dBm) | | Gain | 31.5 dB
Flatness: Typical ±2.5 dB | | Harmonics | Rejections: Minimum 20 dB @ 37 dBm | | Modulation | IM3: Typical 30 dBc, minimum 22 dBc @ 37 dBm PEP | | Efficiency | Minimum 20% @ 37 dBm (CW) | | VSWR | Maximum 1.8:1 | | Input Return Loss | Minimum 13 dB | | Current | Quiescent: Typical 700 mA | | Current Consumption | Maximum 1.2 A | | Compliance | RoHS | | Operating Temperature | -40 to 185°F (-40 to 85°C) | | Dimensions | 3.25 x 2.5 x 0.80" (8.26 x 6.35 x 2.03 cm) | | Weight | 2.1 oz (60.0 g) |
