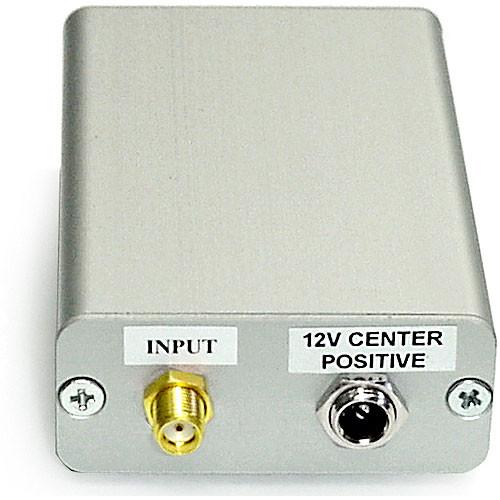

User Manual for RF-Links AMP10-24 5BX 2.4 GHz RF Linear Amplifier, 1 Watt Click to enlarge the picture
Contents of the user manual for the RF-Links AMP10-24 5BX 2.4 GHz RF
- Product category: Wireless Transmission RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission
|
User manual for the RF-Links AMP10-24 5BX 2.4 GHz RF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The RF-Video AMP10-24/5BX is a military grade linear amplifier that can be used to boost the wireless signal of any data or radio transmitter operating in the 2.4 GHz frequency range. Amplified wireless signals translate into improved video and audio quality transmissions over greater wireless distances.
This amplifier ships in a durable aluminum enclosure, and unlike the bare board version, is ready to use out of the box.
Disclaimer: RF amplifiers for 2.4 GHz and other frequencies marked as "unidirectional amplifiers" can be used for one-way amplification only. They are not valid for digital microphone systems (such as Zaxcom and similar wireless microphone systems) because such systems employ two-way communication from the base station to the handheld unit. Connecting a unidirectional amplifier to a wireless microphone's base station will cause attenuation of the receiving signal. This is due to the fact that the base station and handheld unit employ two-way communication, and the signal cannot be received due to the amplifier's simplex operation. A duplex operational amplifier or bidirectional amplifier is required for digital microphone systems. - Laboratory certified for experimental and scientific applications
- Improved video and audio quality over greater wireless distances
- Operates in extreme high and low temperatures
- Accepts standard SMA type antennas (in/out)
- Operates on optional battery power
In the Box RF-Links AMP10-24/5BX 2.4 GHz RF Linear Amplifier, 1 Watt (5mW Input Power) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links AMP10-24 5BX 2.4 GHz RF Linear Amplifier, 1 Watt in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links AMP10-24/5BX Specs | Frequency | 2300-2500 MHz | | Operating Class | Linear AB | | RF Power Output | 1.25 Watt | | Gain | 16dB | | Input Power | 40mW | | Antenna | SMA-Type (sold separately) | | Impedance | Not Specified by Manufacturer | | Power Requirements | 6.5-14 VDC | | Power Consumption | 450mA | | Operating Temperature | -40 ~ 185°F (-40 ~ +85°C) | | Dimensions (WxHxD) | 1.5 x 0.2 x 1" (38.1 x 5.1 x 25.4mm) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 7.0 x 4.8 x 2.3" |
