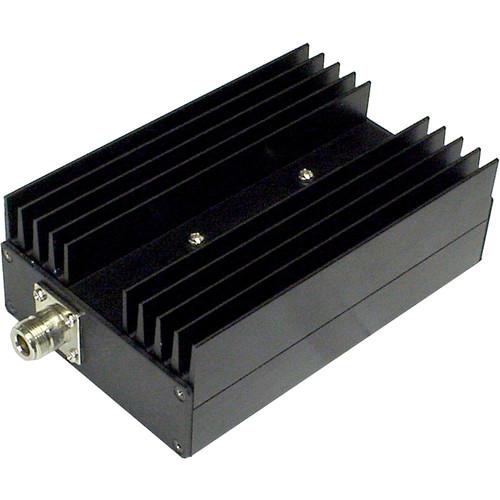

User Manual for RF-Links AMP45-990 5 Wideband Linear Amplifier Click to enlarge the picture
Contents of the user manual for the RF-Links AMP45-990 5 Wideband Linear Amplifier
- Product category: Wireless Transmission Accessories RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission Accessories
|
User manual for the RF-Links AMP45-990 5 Wideband Linear Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The AMP45-990/5 Wideband Linear Amplifier from RF Video works in wideband frequency range from 45 MHz to 1000 MHz. It requires 12 VDC / 1.2A supply and a minimum driving input of 25mW. The amplifier comes with BNC input/output connectors and can be used for applications like lab testing, digital and analog RF and TV broadcasting, or special military wideband applications. In the Box RF-Links AMP45-990/5 Wideband Linear Amplifier Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links AMP45-990 5 Wideband Linear Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links AMP-45-990/5 Specs | Frequency | 45 MHz to 1 GHz | | Gain | 26.8 dBi | | DC Power Requirements | 9 to 12 V | | Current Consumption | 1.2 A maximum | | Impedance | 50 ohms | | Maximum Input Power | 50 mW | | VSWR | <1.5:1 average | | Connector | SMA (N-type available separately) | | Power Input/Output | Input 1:
0 dBm @ all frequencies
Output 1:
1.65 W @ 45 MHz, 1.85 W @ 60, 70, and 500 MHz, 1.90 W @ 80 MHz, 1.95 W @ 90 MHz, 2 W @ 100 MHz, 1.35 W @ 145 MHz, 1.25 W @ 200 MHz and 400 MHz, 1.12 W @ 250 MHz, 1.85 W @ 300 MHz, 1.5 W @ 600 MHz, 1.6 W @ 700 MHz, 1 W @ 800 MHz, 1.9 W @ 860 MHz, 1.8 W @ 900 MHz, and 1.6 W @ 1 GHz
Input 2:
15 dBm @ all frequencies
Output 2:
2.65 W @ 45 MHz, 2.85 W @ 60 MHz, 3.20 W @ 70 MHz, 3.45 W @ 80 MHz, 3.46 W @ 90 MHz, 3.44 W @ 100 MHz, 4.50 W @ 145 MHz, 4.88 W @ 200 MHz, 5.15 W @ 250 MHz, 5.29 W @ 300 MHz, 5 W @ 400 MHz, 5.89 W @ 500 MHz, 5.45 W @ 600 MHz, 5.35 W @ 700 MHz, 5.25 W @ 800 MHz, 5.22 W @ 860 MHz, 4.6 W @ 900 MHz, and 4.6 W @ 1 GHz | | Operating Temperature | -40 to 185°F (-40 to 85°C) | | Compliance | RoHS | | Dimensions | 6 x 4 x 2" (15 x 10 x 5 cm) | | Weight | 17.6 oz (500 g) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 8.7 x 4.4 x 2.3" |
