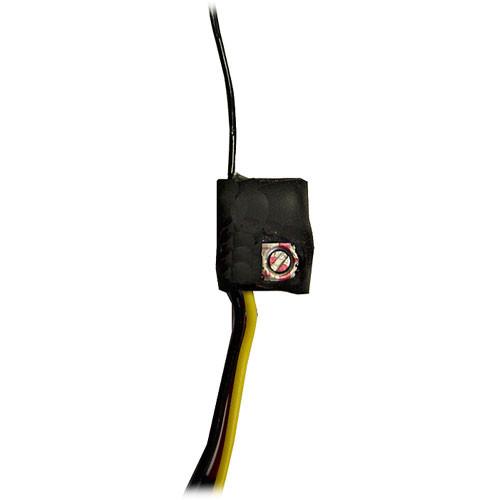

User Manual for RF-Links DX-17 Ultra Compact 1700-1800 MHz Video Transmitter Click to enlarge the picture
Contents of the user manual for the RF-Links DX-17 Ultra Compact 1700-1800 MHz
- Product category: Wireless Transmission Systems RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission Systems
|
User manual for the RF-Links DX-17 Ultra Compact 1700-1800 MHz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The RF-Video DX-17 is an ultra compact transmitter capable of sending outstanding quality video images wirelessly in the 1700-1800 MHz frequency range. Its absolutely small size makes it a particularly good choice for use in ultra small flying model aircraft. It is also a viable option for portable or hidden surveillance, exploratory, scientific and similar specialized monitoring applications. - Ultra compact video transmitter ideal for small model aircraft applications
- Includes hardwired antenna
- Operates on optional battery power
In the Box RF-Links DX-17 Ultra Compact 1700-1800 MHz Video Transmitter 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links DX-17 Ultra Compact 1700-1800 MHz Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links DX-17 Specs | Signal System | NTSC/PAL | | Operating Frequency | 1700-1800 MHz | | Channels | Single-channel | | RF Power Output | 1mW | | Modulation | WFM | | Antenna | Wired | | Impedance | N/A | | Wireless Range | 1000 ft (305m) in open air | | Video Input | Open wire | | Audio Input | No | | Power Requirements | 4-8 VDC (8 VDC for battery) | | Power Consumption | 10mA | | Operating Temperature | 32 - 122°F (0 - 50°C) | | Dimensions (WxHxD) | 0.3 x 0.2 x 0.3" (7.6 x 5.1 x 7.6mm) | | Weight | 0.03 oz (1 g) |
