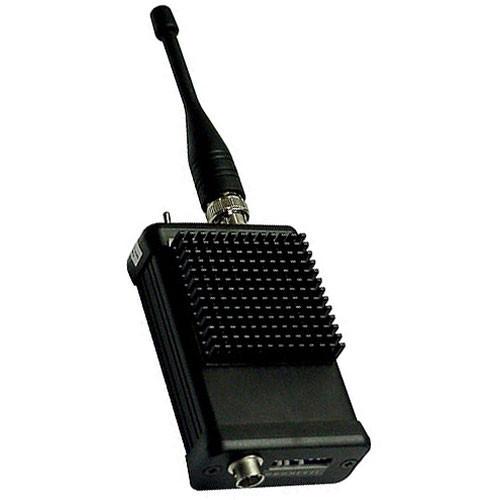

User Manual for RF-Links GX-68 Low Power Video Sender for All UHF TV Channels Click to enlarge the picture
Contents of the user manual for the RF-Links GX-68 Low Power Video Sender
- Product category: Wireless Transmission Systems RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission Systems
|
User manual for the RF-Links GX-68 Low Power Video Sender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The RF-Video GX-68 is a low power transmitter, perfect for sending video wirelessly over relatively short distances within an on-site location. Transmitted video can be received by any TV tuned to channels 21 to 69 and even some cable channels, eliminating the need to purchase a separate receiver. With a wireless range of up to 600 feet, this compact and durable unit is a very useful tool for Steadicam users as well as for general TV and film production applications. - Video sender for all UHF TV channels 21-69 and even some cable channels
- Ultra compact and durable design with metal casing
- Includes 2 matching antennas, covering all UHF TV bands
- Wireless range up to 600 feet line of sight
- Perfect for Steadicam users
- Integrated video filters for improved wireless transmission
- Operates in extremely high and low temperatures
In the Box RF-Links GX-68 Low Power Video Sender for All UHF TV Channels (600 ft) 2 Matching antennas 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links GX-68 Low Power Video Sender for All UHF TV Channels in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links GX-68 Specs | Signal System | NTSC | | Operating Frequency | 470-806 MHz | | Modulation | Negative AM | | Channels | TV channels 14-69 UHF AIR + cable UHF channels | | RF Power Output | 250 mW | | Antenna | BNC Connector (includes 2 rubber ducky antennas) | | Impedance | 50 ohms | | Wireless Range | Up to 600 feet (152m) line of sight | | Video Input | Hirose professional connector | | Audio Input | No | | Power Requirements | 12-32 VDC (12 VDC for battery) | | Power Consumption | 310 mA | | Operating Temperature | 5 - 149°F (-15 ~ +65°C) | | Dimensions (WxHxD) | 2 x 0.9 x 3.2" (50.8 x 22.9 x 81.3mm) | | Weight | 3.5 oz (100 g) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 7.5 x 5.0 x 2.5" |
