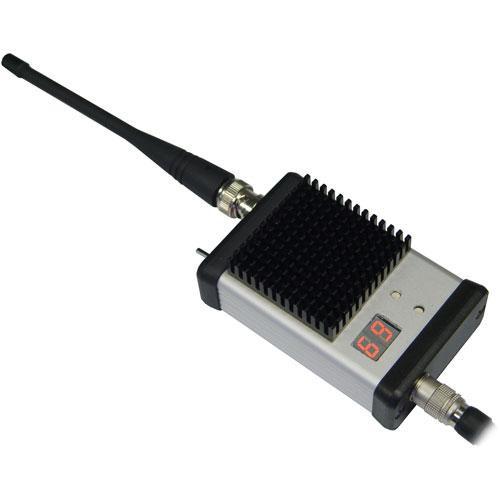

User Manual for RF-Links GX-68D Steadicam Video Audio Sender with Digital Display Click to enlarge the picture
Contents of the user manual for the RF-Links GX-68D Steadicam Video Audio Sender
- Product category: Wireless Transmission Systems RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission Systems
|
User manual for the RF-Links GX-68D Steadicam Video Audio Sender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description If you like your Steadicam, you'll love the wireless GX-68D Steadicam Video/Audio Sender with Digital Display from RF-Video. The whole idea behind the Steadicam is fluidity of movement, and by going wireless you are further enhancing that maneuverability. And with over 50 UHF channels to choose from, you are sure to find one that hosts the best picture and sound quality. - Digital Display
- A front panel digital readout will let you see at a glance what channel you're currently on.
- Video Filter
- You'll be amazed by the quality and stability of the picture delivered by this unit, all thanks to a built-in video filter system.
- Easy Channel Selection
- Simply by pressing the up and down buttons, you can quickly jump to the next channel.
In the Box RF-Links GX-68D Steadicam Video/Audio Sender with Digital Display Matching Antenna Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links GX-68D Steadicam Video Audio Sender with Digital Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links GX-68D Specs | Signal System | NTSC | | Operating Frequency | 470 to 806 MHz | | Modulation | Negative AM | | Channels | TV channels 14 to 69 UHF air plus cable UHF channels | | Recommended Receiver | M-806 | | RF Power Output | 150 MW | | Antenna | BNC connector (includes rubber ducky antenna) | | Impedance | 50 Ohms | | Wireless Range | Up to 600' (152 m) line of sight | | Video Input | Hirose connector (includes RCA adapter cable) | | Audio Input | Hirose connector (includes RCA adapter cable) | | Power Requirements | 12 to 38 VDC (max 50 VDC) | | Power Consumption | 310 mA | | Operating Temperature | 5 to 149°F (-15 to 65°C) | | Dimensions (WxHxD) | 2.0 x 0.9 x 3.2" (50.8 x 22.9 x 81.3 mm) | | Weight | 3.5 oz (99.2 g) |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
