User Manual for RF-Links HD-1000 1 Digital UHF Video Transmitter Click to enlarge the picture
Contents of the user manual for the RF-Links HD-1000 1 Digital UHF Video
- Product category: Wireless Transmission Systems RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission Systems
|
User manual for the RF-Links HD-1000 1 Digital UHF Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|

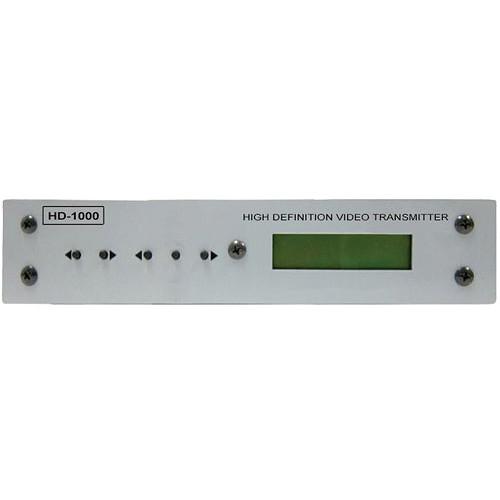

Product description The RF-Video HD-1000/1 is a fully synthesized audio/video transmitter for UHF frequencies from 25MHz-1000MHz. It outputs 1W RF power and offers a 1-2 mile transmission range in resolutions up to 1080i. Video inputs consist of VGA, HDMI, Component, and Composite. Uncompressed signals are encoded in MPEG2.
RF-Video recommends an Omni Dipole antenna, not included. In the Box RF-Links HD-1000/1 Digital UHF Video Transmitter Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links HD-1000 1 Digital UHF Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links HD-1000/1 Specs | Operating Frequencies | 25-1000 MHz | | Video Inputs | VGA, HDMI, Composite BNC (75 ohms), Component RCA | | DC Voltage | 12 VDC | | RF Power | 1 W | | Input Resolution | 480i, 480p, 720p, 1080i | | Battery Power | 12.6 V | | Transmission Range | 1-2 miles (1.6-3.2 km) | | Video Format | PAL, NTSC | | Current Consumption | 2500 mA / 12 V | | Antenna Connector | BNC, 50 ohm impedance | | Video Level | 1 V | | Audio Input | 300 mV | | Modulation | WFM | | Output Level Adjustment Range | 15 dB | | Phase Noise | -95 dBc @ 10 kHz offset | | Broadband Noise | -75 dBc @ > ±12 MHz | | MER | > 40 dB equalized | | Frequency Response | < 1 dB | | Carrier Suppression | > 40 dB | | I/Q in Balance | < 1° | | Output Level Accuracy | ±1 dB | | Operating Temperature | -40 to 167°F (-40 to 75°C) | | Dimensions | 2.5 x 1.5 x 0.75" (6.4 x 3.8 x 1.9 cm) | | Weight | 2.75 lb (1.25 kg) |
