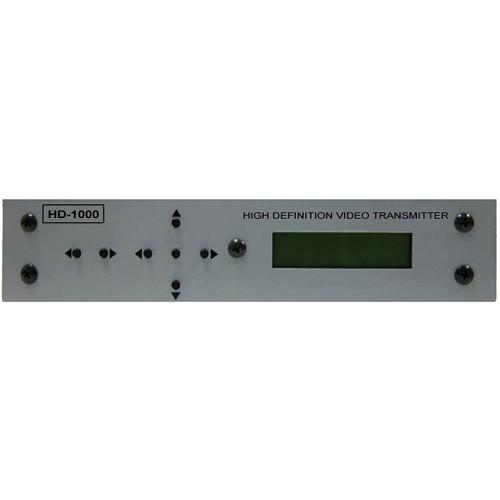

Product description The RF-Video High-Definition Audio/Video Transmitter is designed to send HD MPEG2 videos to a distance of up to 500’ (152.4 m). Fully synchronized for the UHF band, this commercial grade transmitter covers a wide range of frequencies from 25 MHz to 1 GHz.
When connected to a video source via HDMI, Component Video, or a VGA output, the High Definition Audio/Video encodes the videos to HD quality. It supports 480i, 480p, 720p and 1080i resolutions, and allows transmission of high-quality videos with a gain of 100 mW. - Transmits HD MPEG2 videos to a distance of up to 500' (152.4m)
- Fully synchronized for the UHF band frequencies from 25 MHz to 1 GHz
- Supports high-definition video quality up to 1080i
- Upscales video from HDMI, Component video or VGA sources to HD quality
- Transmission gain of 100 mW
In the Box RF-Links High-Definition Audio/Video Transmitter 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links High-Definition Audio Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links HD-1000C Specs | Operating Frequencies | 25 to 1000 MHz | | Video Inputs | VGA, HDMI, Component video in, Composite video in | | DC Voltage | 12 VDC | | RF Power | 100 mW | | Input Resolutions | 480i, 480p, 720p, 1080i video | | Battery Power | 12.6 V | | Video Distortion | NA | | Maximum Range | 1 to 2 mi (1.6 to 3.2 Km) with dir. antenna | | Video Format | PAL, NTSC | | Current Consumption | 1500 mA / 12 V | | Antenna | Omni Dipole recommended | | Antenna Connector | BNC | | Impedance | 50 ohms | | Video Connector | BNC connector | | Video Impedance | Composite: 75 ohms | | Video Level | 1 V | | Audio Input | 300 mV | | Temperature Range | -40 to 167°F (-40 to 75°C) | | Output Level Accuracy | Equal to ± 1 dB | | Modulation | QAM | | Output Level Adjustment Range | 15 dB | | Noise | Phase: Equal to -95 dBc @ 10 KHz offset
Broadband: Equal to -75 dBc @ greater than ± 12 MHz | | MER | Equal to/greater than 40 dB equalized | | Frequency Response | Channel: = Equal to/less than 1 dB | | Carrier Suppression | Greater than 40 dB | | I/Q in Balance | Less than 1 degree |
