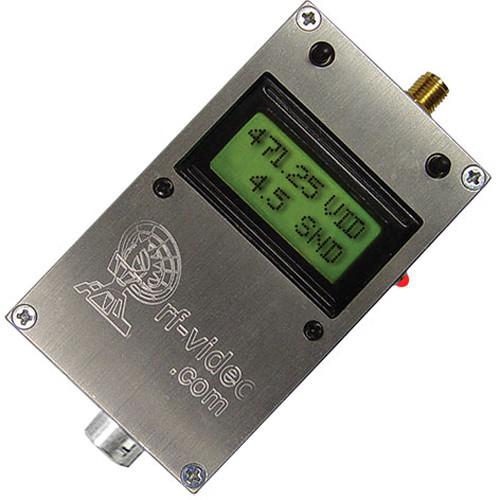

Product description The RF-Video IGX-1000 is designed for professionals in the film and TV production industries but is suitable for all relevant industries. It operates within the 40 to 928 MHz frequencies and offers a transmission range of up to 300 ft.
An LCD displays the UHF and carrier frequencies particular to the TV system/country of choice (PAL, NTSC, and SECAM supported). The RF section allows you to cover all channels without any re-tuning. Channels are selectable by simple push buttons.
RF-Video recommends using their M-806 receiver. A matching antenna that covers the entire UHF TV band is included. Recommended DC voltage is 12V. -
- Uses 12-24 VDC power
- 50-100 mW RF power
- Built-in audio portion (audio adjustable on back panel)
- Built-in video filters
- 230 mA current consumption
In the Box RF-Links IGX-1000 Video Sender for All UHF Frequencies Rubber Ducky Antenna Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links IGX-1000 Video Sender for All UHF Frequencies in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links IGX-1000 Specs | Operating Frequencies | 40 - 928 MHz continuous operation, no gaps, step 250 kHz | | Channel | All TV channels 14-69 UHF AIR, cable UHF channels, 900 MHz band | | DC Voltage | 12-24 VDC | | Transmission Range | 300 ft (91 m) (line-of-sight) | | RF Power | 50 - 100 mW | | Minimum Required Voltage | 12.6 V | | Battery Power | 12.6-32 V | | Frequency Stability | +/-20 ppm | | Video Distortion | 2% | | Video Format | PAL, NTSC, SECAM | | Current Consumption | 230 mA | | Antenna Connector | BNC / SMA | | Impedance | 50 ohms | | Video Connector | Hirose | | Video Impedance | 75 ohms | | Audio | 4.5/5/5.5/6 MHz (adjustable on back panel) | | Video Level | 1 V | | Modulation | Negative AM | | Temperature Range | 5 to 149°F (-15 to 65°C) | | Dimensions | 2.8 x 1.5 x 0.75" (7.1 x 3.8 x 1.9 cm) | | Weight | Approx. 3.2 oz (90 g) |
