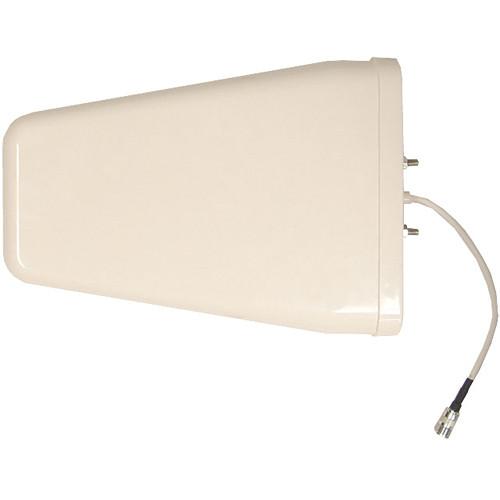

Product description The RF-Video LOG1214 Directional Antenna (1200 to 1450 MHz) is a narrow band directional antenna designed for short and long distance transmissions. With a gain of 9 dBi, this antenna supports radio frequencies from 1200 to 1450 MHz, making it suitable for use in FM radios and TV microwave links.
Based on your application, you can mount the antenna for either vertical or horizontal polarization with the help of standard mounting brackets. Its non-corrosive aluminum alloy construction and PVC seal ensure that the electronics inside the antenna remain protected against the ingress of water and moisture. - Designed for short and long distance transmissions with a gain of 9 dBi
- Narrow band transmissions from 1200 to 1450 MHz for use in FM radios and TV microwave links
- Standard mounting brackets allow for positioning the antenna for either vertical or horizontal polarization
- Durable non-corrosive aluminum alloy construction
- Sealed using PVC to protect the antenna from the ingress of water or moisture
- Easy and quick installation even on light poles
- Lightning resistance is guaranteed by the DC ground potential of the entire antenna
In the Box RF-Links LOG1214 Directional Antenna (1200 to 1450 MHz) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links LOG1214 Directional Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links LOG-1214 Specs | Frequency | 1200 to 1450 MHz | | Gain | 9 dBi | | Front to Back Ratio | Greater than 20 | | Impedance | 50 Ohm | | Maximum Input Power | 75 W | | Lightning Protection | DC Short | | VSWR | Less than 1.5 avg. | | Polarization | Vertical and horizontal | | Cover Material | PVC | | Element | 9 | | Connector | N type | | Operating Temperature | -40 to 185°F (-40 to to 85°C) | | Dimensions | 18 x 3.6 x 1.2" (45.7 x 9.1 x 3.04 cm) |
