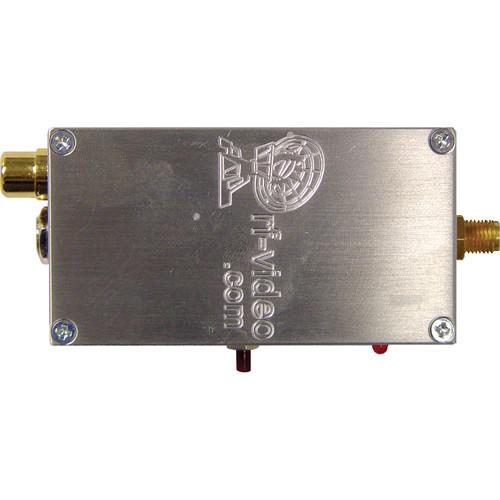

Product description With a maximum range of just under 5 miles and weight under two ounces, the RF-Video LUV-1000MX 2.4GHz Video Transmitter with 8 Channels is suitable for use in covert applications. It transmits in the 2.4GHz band and is suitable for transmitting NTSC or PAL video from model airplanes or other flying video platforms. It draws only 360 mW at 5 volts.
It features eight selectable channels, to match the transmitter with your video receiver. The transmitter accepts an audio input, allowing you to transmit not only video, but also audio local to your flying platform. RF-Video recommends a power source of 7.5 to 12 volts DC, and warns against connecting the transmitter to a power source over 14 Volts DC. - Suitable for covert applications from aerial platforms up to 4.97 miles (8 km) away.
- Eight selectable channels.
- Weighs less than 2 ounces, so it won't significantly add to the weight of your flying platform of choice.
Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links LUV-1000MX 2.4GHz Video Transmitter with 8 Channels in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links LUV-1000MX Specs | Signal System | NTSC
PAL | | Operating Frequencies | 2300 to 2500 MHz | | Number of Channels | 8 | | Maximum Range | 4.97 miles / 8 km | | Modulation | WFM | | Video Distortion | 2% | | Video Level | 1 V | | Audio Input | 300 mV | | Video Impedance | 75 Ohms | | Antenna Impedance | 50 Ohms | | Antenna Connector | SMA | | Power | Voltage: 7.5 to 12 V
Current: 360 mA / 5 V | | RF Power | 1000 mW | | Temperature | -40 to 167°F / -40 to 75°C | | Dimensions | 2.5 x 1.5 x 0.75" / 63.5 x 38.1 x 19.1 cm | | Weight | 1.8 Oz / 50 g |
