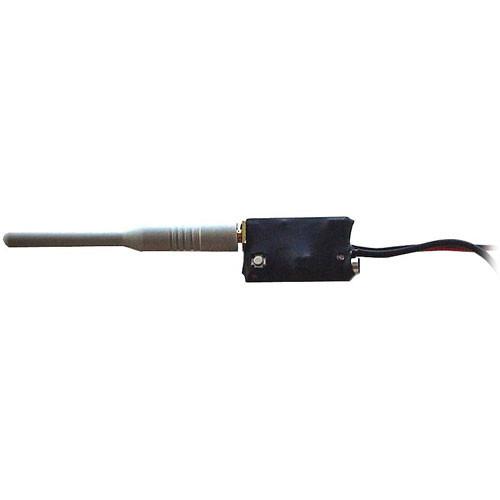

User Manual for RF-Links LUV-200M Ultra Compact 2.4 GHz Video Transmitter Click to enlarge the picture
Contents of the user manual for the RF-Links LUV-200M Ultra Compact 2.4 GHz
- Product category: Wireless Transmission RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission
|
User manual for the RF-Links LUV-200M Ultra Compact 2.4 GHz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The RF-Video LUV-200M is an ultra compact military grade transmitter capable of sending broadcast quality video wirelessly in the 2.4 GHz frequency range. The wireless range for this transmitter is approximately 4 miles in open air. This range can be further extended by using special high gain antennas. Its incredible small size coupled with its tolerance for extremely high and low temperature ranges make it well suited for a variety of security and non-security related monitoring applications. - Ultra compact design, suitable for many specialized applications
- Airplane tested to transmit up to 4 miles in open air
- Capable of withstanding extreme high and low temperature changes
- Superior image quality with built-in pre-emphasis filter
- Adjustable video level via on-board potentiometer
- Fully synthesized with single channel PLL control
- Includes 3dB gain antenna
In the Box RF-Links LUV-200M Ultra Compact 2.4 GHz Video Transmitter (200mW RF Power) Antenna 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links LUV-200M Ultra Compact 2.4 GHz Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links LUV-200M Specs | Signal System | NTSC/PAL/SECAM | | Operating Frequency | 2.4 GHz | | Channels | N/A | | RF Power Output | 200mW | | Modulation | WFM | | Antenna | Includes SMA antenna with 3db gain | | Impedance | 50 ohms | | Wireless Range | Up to 4 miles (6.5 km) line of sight | | Video Input | RCA x1 | | Audio Input | No | | Power Requirements | 7.5-12 VDC | | Power Consumption | 150mA | | Operating Temperature | -4 ~ 140°F (-20 ~ +60°C) | | Dimensions (WxHxD) | 0.8 x 0.22 x 1.5" (20.3 x 5.6 x 38.1mm) | | Weight | 0.21 oz (6 g) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 6.0 x 4.0 x 0.3" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
