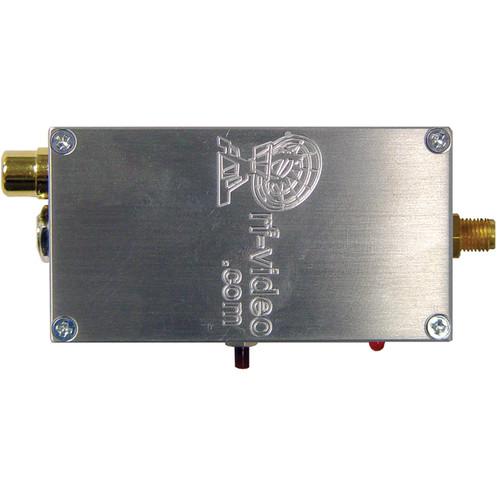

Product description Designed primarily for surveillance applications, the RF-Video LUV-4900L is a highly compact, fully synthesized audio/video transmitter for the 4.9 GHz licensed band. It outputs 50mW of RF power and offers a 1.2 mile transmission range within four on-board selectable channels.
This transmitter is 12V battery operated. Using batteries with over 14V of power can cause damage. Batteries are sold separately. - Key Features
-
- Highly compact 50mW A/V transmitter
- Measures only 2.5" x 1.5"; designed primarily for surveillance video
- Operates on the 4.9 GHz licensed frequency band
- 1.2 mile line-of-sight transmission range
- Four on-board selectable channels
- RCA or open wire video connector
- Operates on 12V DC power
- 2% video distortion
- 300 mV audio input
- WFM modulation
- PAL and NTSC compatible
In the Box RF-Links LUV-4900L Video Transmitter 4.9 GHz Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links LUV-4900L Video Transmitter 4.9 GHz in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links LUV-4900L Specs | Operating Frequency | 4.9 GHz | | Channels | 4 channels | | DC Voltage | 7.5-12 VDC | | RF Power | 50 mW | | Battery Power | 12 V | | Video Distortion | 2% | | Transmission Range | 1.2 miles (2 km) line-of-sight | | Video Format | PAL, NTSC | | Current Consumption | 160 mA, 12 V | | Antenna | Optional Omni Dipole antenna recommended | | Antenna Connector | SMA | | Impedance | 50 ohms | | Video Connector | RCA F or open wire | | Video Impedance | 75 ohms | | Video Level | 1 V | | Audio Input | 300 mV | | Modulation | WFM | | Temperature Range | -40 to 167°F (-40 to 75°C) | | Dimensions | 2.5 x 1.5 x 0.75" (6.4 x 3.8 x 1.9 cm) | | Weight | 1.8 oz (50 g) |
