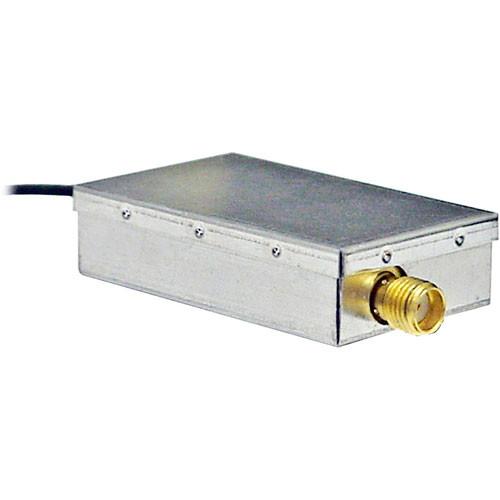

Product description The RF-Video LUV-80 is an ultra compact yet durably designed video and audio transmitter. It accepts a single NTSC or PAL camera for transmitting its signal in high resolution wirelessly up to two miles away in the air. Its small size and its ability to operate on optional battery power allow it to be placed easily virtually anywhere or carried around in a pocket, making it an excellent choice for hidden surveillance applications. Note: Receiver and antenna sold separately - Ultra compact design ideal for covert surveillance applications
- Tested to transmit wirelessly up to 2 miles in free air using radio controlled model airplanes
- Durable design with metal enclosure
- Compatible with NTSC and PAL video systems
- Accepts a variety of BNC type antennas
- Low power consumption (80mA)
In the Box RF-Links LUV-80 Ultra Compact 2.4GHz 4 Channel Video and Audio Transmitter (80 mW) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links LUV-80 Ultra Compact 2.4GHz 4 Channel Video and Audio Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links LUV-80 Specs | Signal System | NTSC/PAL | | Operating Frequency | 2300-2500 MHz | | Modulation | WFM | | Channels | Selectable from 1-4 (4-8) internally | | RF Power Output | 80 mW | | Antenna | Not included, accepts SMA (BNC) type antenna (omni dipole recommended) | | Impedance | 50 ohms | | Wireless Range | Up to 2 miles (3 km) line of sight | | Video Input | Open wire | | Audio Input | Open wire | | Power Requirements | 7.5-14.4 VDC (12 VDC required with battery) | | Power Consumption | 80mA | | Operating Temperature | -40 ~ 167°F (-40 ~ +75°C) | | Dimensions (WxHxD) | 1 x 0.3 x 1.7" (25.4 x 7.62 x 43.18mm) | | Weight | 0.5 oz (16 g) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 5.5 x 3.9 x 1.2" |
