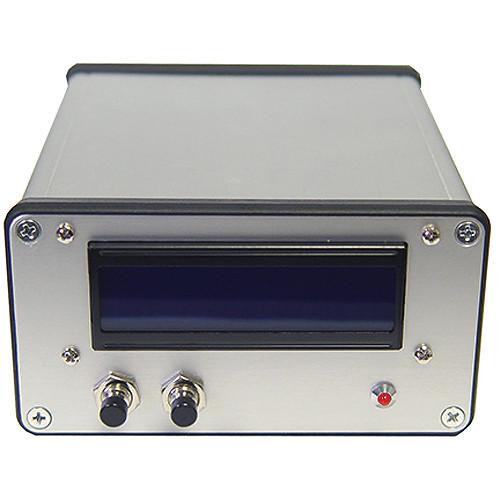

Product description Designed especially for UAV military surveillance applications, the RF-Video LX-1020/5 supports frequencies from 1000MHz-2000MHz and is capable of operating in extreme low and high temperatures. It outputs 5W of RF power and offers a 3.7 mile transmission range. Channels are selectable via two front panel push buttons and displayed on an LCD along with other info. - Key Features
-
- Designed for UAV military surveillance applications
- Supports frequencies from 1000MHz-2000MHz
- Suitable for extreme temperatures
- 5W RF power
- 3.7 mile transmission range line-of-sight
- Front panel LCD and channel selection push buttons
- 12V battery operated
- 1600mA / 12V current consumption
- RCA video and audio connectors
- PAL, NTSC compatible
In the Box RF-Links LX-1020/5 Video Transmitter 1000 MHz - 2000 MHz Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links LX-1020 5 Video Transmitter 1000 MHz - 2000 MHz in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links LX-1020/5 Specs | Operating Frequencies | 1000 - 2000 MHz (digitally selected) | | DC Voltage | 12 - 14 V | | RF Power | 5 W | | Frequency Step | 250 kHz | | Battery Power | 12 V (not included) | | Video Distortion | 3% | | Transmission Range | 3.7 miles (6 km) line-of-sight | | Video Format | PAL, NTSC | | Current Consumption | 1600 mA / 12 V | | Frequency Stability | +/-1 ppm (TCXO) | | Antenna Connector | SMA | | Impedance | 50 ohms | | Audio Input | 300 mV | | Video/Audio Connectors | RCA F | | Video Impedance | 75 ohms | | Video Level | 1 V | | Temperature Range | -40 to 172°F (-40 to 78°C) | | Modulation | WFM | | Dimensions | 6 x 3 x 1" (15.2 x 7.6 x 2.5 cm) | | Weight | 0.77 lb (350 g) |
