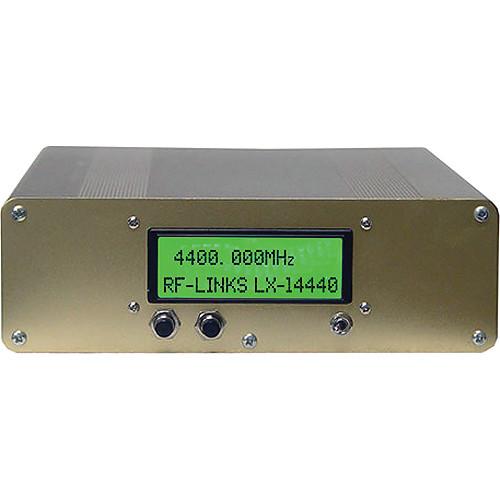

Product description Designed exclusively for military, aeronautic, and space applications, the RF-Video LX-14440 LX-14440 Video Transmitter can access any frequency from 140 MHz to 4400 MHz, and is capable of operating in extreme low and high temperatures. It's offered here in its 50MW version and is available for government orders only. - Key Features
-
- Maximum transmission of 300 ft
- Push-button frequency selection
- 50 kHz Frequency step
- 1500mAh / 12V Current consumption
- +/-1 ppm (TCXO) Frequency stability
- SMA antenna connector
- 300MV Audio input
- RCA video/audio connectors
- WFM modulation
- PAL and NTSC compatible
- Scrambler option available upon request
In the Box RF-Links LX-14440 Video Transmitter 140-4400 MHz Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links LX-14440 Video Transmitter 140-4400 MHz in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links LX-14440 Specs | Operating Frequencies | 140 - 4400 MHz (digitally controlled) | | DC Voltage | 12 - 14 V | | RF Power | 50 MW | | Frequency Step | 50 kHz | | Transmission Range | Up to 300 ft (91 m) | | Battery Power | 12 V (not included) | | Video Distortion | 3% | | Video Format | PAL, NTSC | | Current Consumption | 1500 mAh / 12 V | | Frequency Stability | +/-1 ppm (TCXO) | | Antenna Connector | SMA | | Impedance | 50 Ohms | | Audio Input | 300 MV | | Video/Audio Connectors | RCA, female | | Video Impedance | 75 Ohms | | Video Level | 1 V | | Modulation | WFM | | Temperature Range | -40 to 172°F (-40 to 78°C) | | Dimensions | 8.9 x 6.7 x 2.1" (22.6 x 17.0 x 5.3 cm) | | Weight | 2 lb (0.9 kg) |
