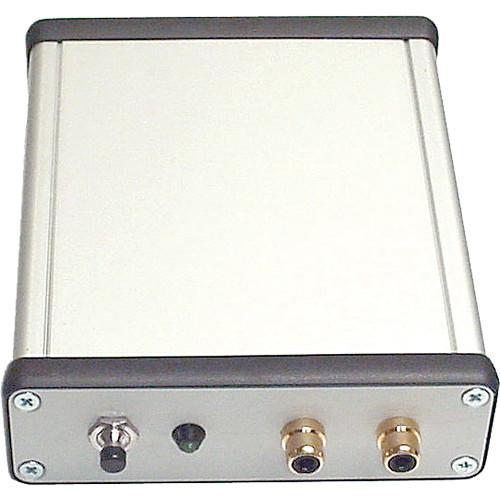

User Manual for RF-Links LX-1700 3 3W Audio Video Transmitter Click to enlarge the picture
Contents of the user manual for the RF-Links LX-1700 3 3W Audio Video
- Product category: Wireless Transmission Systems RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission Systems
|
User manual for the RF-Links LX-1700 3 3W Audio Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The LX-1700/3 from RF-Video is a 1.7GHz audio and video transmitter designed for military applications in extremely low or high temperatures. It features 8 selectable agile channels and offers 3W of RF power allowing a 5 mile range over the air. - Key Features
-
- -40°F to 172°F temperature range
- 1730MHz - 1850MHz operating frequencies
- Operates between 12V and 16V
- SMA antenna connector
- RCA F video connector
- WFM modulation
- 3% video distortion
- Matching Receivers
-
- VRX-1700
- VRX-1700T
- VRX-17LD with LCD display (supports 1700MHz - 2100MHz)
- RMX-2000 with LCD display (supports 900MHz - 2000MHz)
- RX-2000LCD TV Receiver (supports 1700MHz - 2000MHz)
In the Box RF-Links LX-1700/3 3W Audio / Video Transmitter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links LX-1700 3 3W Audio Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links LX-1700/3 Specs | Operating Frequencies | 1730 - 1850 MHz | | DC Voltage | 12 - 14 V | | RF Power | 3 W | | Minimum Required Voltage | 10 V | | Battery Power | 12 V | | Video Distortion | 3% | | Maximum Range | 5 miles (8 km) over the air | | Video Format | PAL, NTSC | | Current Consumption | 550 mA / 12 V | | Antenna | N/A | | Antenna Connector | SMA | | Impedance | 50 ohms | | Video Connector | RCA F | | Video Impedance | 75 ohms | | Video Level | 1 V | | Audio Level | 300 mV | | Modulation | WFM | | Temperature Range | -40 to 172°F (-40 to 78°C) | | Dimensions | 4.7 x 3 x 1.1" (12 x 7.6 x 2.8 cm) | | Weight | 0.55 lb (250 g) |
