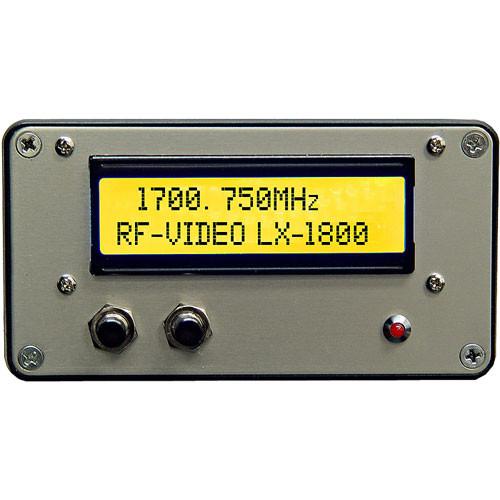

User Manual for RF-Links LX-1800 1600-1800 MHz Video and Audio Transmitter with Digital Display Click to enlarge the picture
Contents of the user manual for the RF-Links LX-1800 1600-1800 MHz Video and
- Product category: Wireless Transmission RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission
|
User manual for the RF-Links LX-1800 1600-1800 MHz Video and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The RF-Video LX-1800 presents a comprehensive solution for transmitting audio and video signals in high resolution wirelessly over long distances. Built into the unit is a backlit digital display, providing a user with input settings at a glance. In the event that the unit is powered off accidentally, the last dialed channel will appear on the display once power is restored.
The ability to communicate wirelessly eliminates the need to run physical A/V cables, allowing cameras to be easily installed outdoors, in hallways, near ceilings and numerous other areas where the use of A/V cables is impractical, impossible or simply unsightly. Needless to say, mobile video applications stand to benefit the most from wireless A/V transmission capabilities. - Long distance video and audio wireless transmission
- Memorizes last dialed channel in case of power loss
- 1-8 Easily selectable channels
- Operates in extremely low and high temperatures
- Accepts battery power (12 VDC)
- Compatible with NTSC and PAL video systems
In the Box RF-Links LX-1800 1600-1800 MHz Video and Audio Transmitter with Digital Display 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links LX-1800 1600-1800 MHz Video and Audio Transmitter with Digital Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links LX-1800 Specs | Signal System | NTSC/PAL | | Operating Frequency | 1600-1800 MHz | | Channels | 1-8 (frequency digitally controlled) | | RF Power Output | 1.5W | | Modulation | WFM | | Antenna | Not included (requires SMA type antenna) | | Impedance | 50 ohms | | Wireless Range | Up to 16 miles (25 km) line of sight | | Video Input | RCA x1 | | Audio Input | RCA x1 | | Power Requirements | 12-14 VDC (12 VDC when using a battery) | | Power Consumption | 800mA | | Operating Temperature | -40 ~ 172°F (-40 ~ +78°C) | | Dimensions (WxHxD) | 3 x 1 x 6" (76 x 25 x 152mm) | | Weight | 8.8 oz (250 g) |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 90 owners. Add your rating and experience with the product.
