User Manual for RF-Links LX-2500 2 Video Audio Transmitter 2.4 GHz For VRX Receiver Click to enlarge the picture
Contents of the user manual for the RF-Links LX-2500 2 Video Audio Transmitter
- Product category: Wireless Transmission Systems RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission Systems
|
User manual for the RF-Links LX-2500 2 Video Audio Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|

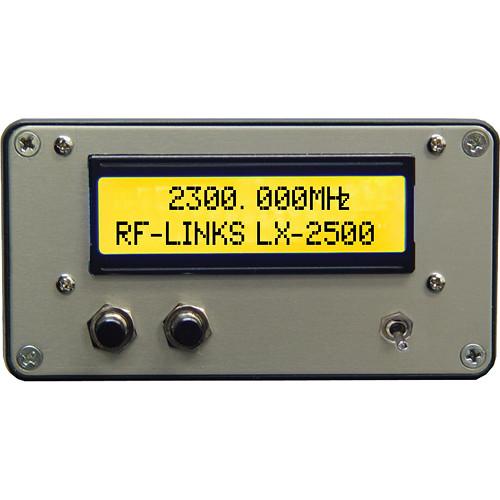

Product description Able to withstand extremes of cold and heat that would harm a person, the RF-Video LX-2500/2 Video/Audio Transmitter 2.4 GHz is a lightweight wireless video/audio transmitter that weighs under a pound and supports NTSC / PAL video, making it suitable for use as a transmitter for flying platforms. It features over 9.9 miles of line of sight transmission of the analog video signals. Frequency selection is digitally controlled in 250 kHz steps within the 2.4 GHz range. A digital LCD display confirms your Frequency selection. Please note this transmitter is for sale to government agencies only, and not for commercial use in the United States. -
- Frequency is selectable in the 2.3 to 2.5GHz range in 250 kHz steps
- Push button control, up and down for frequency selection
- The transmitter can work at extreme temperature ranges from -40 to over 170°F
- Video/audio is input via an F connector
- Low power consumption of 1600 mA at 12 Volts DC
- The transmitter accepts from 9 to 16 Volts DC (12 Volt recommended)
In the Box RF-Links LX-2500/2 Video/Audio Transmitter 2.4 GHz (NTSC, PAL) For VRX Receiver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links LX-2500 2 Video Audio Transmitter 2.4 GHz For VRX Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links LX-2500/2 Specs | Operating Frequencies | 2.4 GHz | | Video Format | NTSC
PAL | | Video/Audio Inputs | 1 x RCA F | | Video Impedance | 75 Ω | | Video Level | 1V | | Frequency Stability | +-1 ppm (TCXO) | | Frequency Step | 250 KHz | | Video Distortion | 3% | | Antenna Connector | SMA | | Modulation | WFM | | Maximum Range | LOS: > 9.9 miles / 16 km | | Power | DC Voltage: 9 to 16 V
RF Power: 2 W
Current Consumption: 1600 mA / 12 V | | Temperature Range | -40 to 172.4°F /-40 to 78°C | | Dimensions | 6.5 x 4 x 2" / 16.5 x 10.2 x 5.1 cm | | Weight | 15.9 Oz / 450 g |
