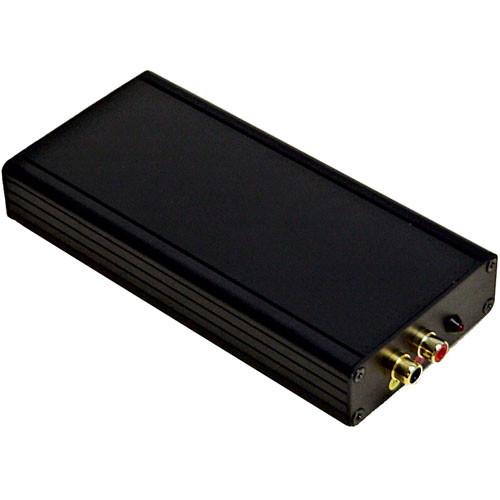

User Manual for RF-Links LX-3000 5 2.4GHz 8-Channel Video and Audio Transmitter, Up to 16 Miles in Air Click to enlarge the picture
Contents of the user manual for the RF-Links LX-3000 5 2.4GHz 8-Channel Video
- Product category: Wireless Transmission Systems RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission Systems
|
User manual for the RF-Links LX-3000 5 2.4GHz 8-Channel Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The RF-Video LX-3000/5 presents a comprehensive solution for transmitting audio and video signals in high resolution wirelessly over long distances. Its ability to withstand extremes of high and low temperatures makes it a particularly good choice for portable field use by military and law enforcement personnel working in extreme outdoor environments.
Going wireless eliminates the need to run physical A/V cables, allowing cameras to be easily installed outdoors, in hallways, near ceilings and numerous other areas where the use of A/V cables is impractical, impossible or simply unsightly. Needless to say, mobile video applications stand to benefit the most from wireless A/V transmission capabilities. Note: Receiver and antenna sold separately - Long distance wireless video and audio transmission
- 1-8 Easily selectable channels
- Operates in extremely low and high temperatures
- Accepts battery power (12 VDC)
- Compatible with NTSC and PAL video systems
In the Box RF-Links LX-3000/5 2.4GHz 8-Channel Video and Audio Transmitter, Up to 16 Miles in Air (5 Watts) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links LX-3000 5 2.4GHz 8-Channel Video and Audio Transmitter, Up to 16 Miles in Air in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links LX3000/5 Specs | Signal System | NTSC/PAL | | Operating Frequency | 2300-2500 MHz | | Modulation | WFM | | Channels | 1-8 | | RF Power Output | 5W | | Antenna | Not included (requires SMA type) | | Impedance | 50 ohms | | Wireless Range | Up to 16 miles (25 km) line of sight | | Video Input | RCA x1 | | Audio Input | RCA x1 | | Power Requirements | 9-16 VDC (12 VDC when using a battery) | | Power Consumption | 1.8A | | Operating Temperature | -40 ~ 172°F (-40 ~ +78°C) | | Dimensions (WxHxD) | 3 x 1 x 6" (76.2 x 25.4 x 152.4mm) | | Weight | 12.3 oz (350 g) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 10.5 x 8.3 x 2.9" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
