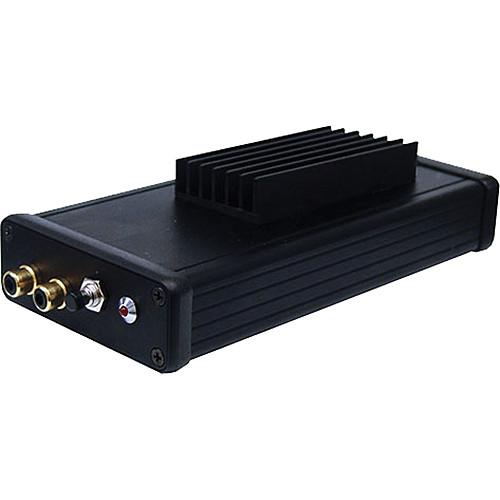

Product description Able to withstand extremes of cold and heat that would harm a person, the RF-Video LX-2500/2 Video/Audio Transmitter 2.4 GHz is a lightweight wireless video/audio transmitter that weighs under a pound and supports NTSC / PAL video, making it suitable for use as a transmitter for flying platforms. It features over 9.9 miles of line of sight transmission of the analog video signals. Frequency selection is digitally controlled in 250 kHz steps within the 2.4 GHz range. A digital LCD display confirms your Frequency selection. -
- Frequency is selectable in the 2.3 to 2.5GHz range in 250 kHz steps
- Push button control, up and down for frequency selection
- The transmitter can work at extreme temperature ranges from -40 to over 170°F
- Video and audio inputs are RCA jacks
- Low power consumption of 1600 mA at 12 Volts DC
- The transmitter accepts from 9 to 16 Volts DC (12 Volt recommended)
- The LED indicates which channel you have seleted
In the Box RF-Links LX-3000/5MIL-2 Audio / Video 6W Transmitter for 2.4GHz with 8 Channels Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links LX-3000 5MIL-2 Audio Video 6W Transmitter for 2.4GHz with 8 Channels in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links LX-3000/5MIL-2 Specs | Operating Frequencies | 2.3 to 2.5 GHz | | Video Format | NTSC
PAL | | Inputs | Video: 1 x RCA jack
Audio: 1 x RCA jack | | Video Impedance | 75 ohms | | Video Level | 1V | | Video Distortion | 3% | | Antenna Connector | SMA | | Impedance | 50 ohms | | Modulation | WFM | | Maximum Range | LOS: > 11.2 miles / 18 km | | Power | DC Voltage: 9 to 16 V
RF Power: 6 W
Current Consumption: 1.8 A / 12 V | | Temperature Range | -40 to 172.4°F /-40 to 78°C | | Dimensions | 6 x 3 x 1" / 15.2 x 7.6 x 2.5 cm | | Weight | 19.4 oz / 550 g |
