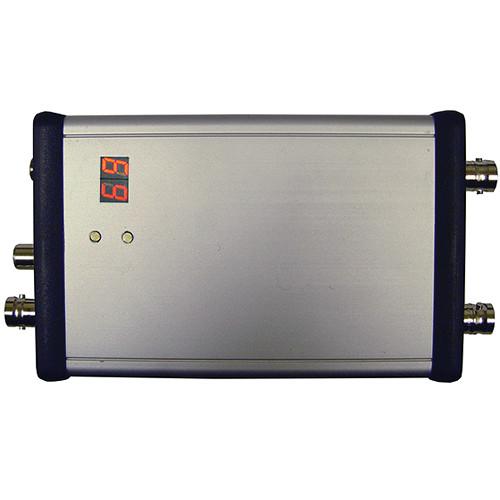

Product description The RF-Video M-1000LED is a digitally controlled diversity audio/video receiver compatible with any UHF TV transmitter. It can pick-up any TV channel in UHF AIR BAND from CH2 to CH69 as well as cable channels. It operates within the 420 - 918 MHz frequency bands over long range distances.
A 9 - 12 VDC power supply (sold separately) is required. This receiver has a special diversity circuit to boost signal reception and offers two separate antenna inputs. In the Box RF-Links M-1000LED Special Diversity Audio/Video Receiver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links M-1000LED Special Diversity Audio Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links M-1000LED Specs | Input Frequency | 420 - 918 MHz, off air channels 2-69 | | Sensitivity | -86 dBm | | Noise Figure | VHF: 7 dB
UHF: 10 dB | | Image Rejection | VHF: 63 dB
UHF: 50 dB | | Input Impedance | 75 ohms | | Video | Output Level: 1.0 Vp-p, NTSC
Output Mode: Standard negative sync
Panel Control: ± 10 dB
Output Impedance: 75 ohms
Differential Gain: Less than 5%
Differential Phase: Less than 5°
L/C Delay: ±50 nSec max | | Audio | Output Level: 300 mV rms nominal
Panel Control: ± 10 dB
Output Impedance: < 500 ohms
Frequency Response: 25 Hz - 16 kHz | | Power Input | 12 VDC @ 120 mA, 5 VDC @ 100 mA | | Temperature | 32 to 122°F (0 to 50°C) | | Dimensions | 4.1 x 4.9 x 1.1" (10.4 x 12.4 x 2.8 cm) | | Weight | 12 oz (340 g) |
