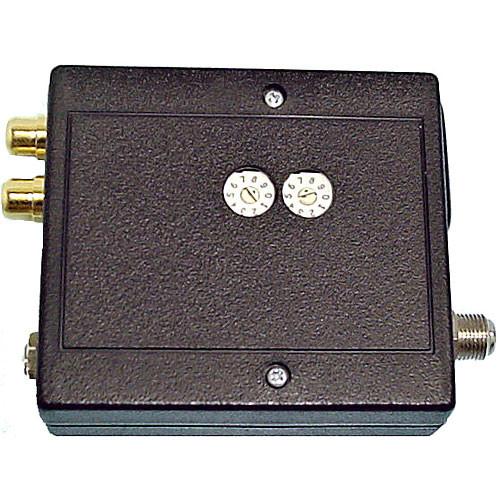

User Manual for RF-Links M-806 Ultra Compact UHF CH 14-69 Video and Audio Receiver Click to enlarge the picture
Contents of the user manual for the RF-Links M-806 Ultra Compact UHF CH
- Product category: Wireless Transmission RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission
|
User manual for the RF-Links M-806 Ultra Compact UHF CH contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The RF-Video M-806 is an ultra compact video and audio receiver, capable of picking up signals transmitted in UHF channels 14 thru 69. It can also be used to receive Cable channels including the popular channel 59. Its compact size makes it a perfect companion for use with RF-Video's line of compact transmitters in Steadicam and hidden monitoring applications. As with a transmitter, this receiver unit operates on optional battery power and accepts standard type antennas. - Ultra compact design ideal for use in Steadicam and covert monitoring applications
- Receives UHF channels 14 to 69 and Cable channels 54 to 65
- Operates on optional battery power
- Low power consumption (150mA)
- Accepts high gain antenna for longer range
In the Box RF-Links M-806 Ultra Compact UHF CH 14-69 Video and Audio Receiver (NTSC) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links M-806 Ultra Compact UHF CH 14-69 Video and Audio Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links M-806 Specs | Signal System | NTSC | | Frequency | 430-801 MHz | | Modulation | Not Specified by Manufacturer | | Channels | UHF Off air TV channels 14-69
Cable channels 54-65 (403-469 MHz) | | Tuning | Not Specified by Manufacturer | | Antenna | Not included, accepts F-type antennas | | Video Output | RCA x1 | | Audio Output | RCA x1 | | Power Requirements | 9-12 VDC | | Power Consumption | 150mA | | Operating Temperature | 32 - 122°F (0 - 50°C) | | Dimensions (WxHxD) | 2.7 x 0.95 x 2.9" (68.58 x 24.13 x 73.66mm) | | Weight | 2.1 oz (60 g) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 6.8 x 5.3 x 2.5" |
