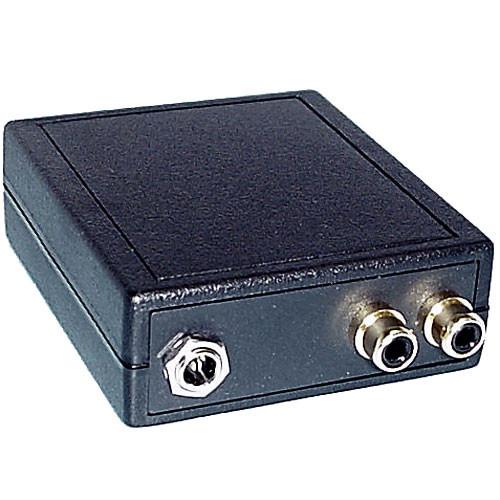

User Manual for RF-Links M-808 Compact Video & Audio Receiver for 900 MHz AM Click to enlarge the picture
Contents of the user manual for the RF-Links M-808 Compact Video & Audio
- Product category: Wireless Transmission RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission
|
User manual for the RF-Links M-808 Compact Video & Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description The RF-Video M-808 is a compact industrial grade receiver capable of accessing wireless video and audio signals transmitted in the 403-918 MHz frequency range. Two rotary dials located on the bottom of the box allow a user to quickly dial in to any of the 12 available channels. Supported channels include any channel broadcast in the UHF range and even some UHF Cable TV channels. Its compact and durable design along with its ability to operate on optional battery power makes it an excellent choice for portable and hidden surveillance applications. With these attributes, it is also a viable option for experimental, scientific, military and similar specialized wireless applications. - Superior picture and sound quality
- Standard RCA video and audio outputs
- 12 Selectable channels with two rotary dial control
- Operates on optional 9V battery pack for up to 1 hour
- Low power consumption (180mA)
- Compatible with NTSC and PAL video systems
In the Box RF-Links M-808 Compact Video & Audio Receiver for 900 MHz AM 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links M-808 Compact Video & Audio Receiver for 900 MHz AM in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links M-808 Specs | Signal System | NTSC/PAL | | Frequency | 403-918 MHz | | Modulation | Negative Amplitude | | Channels | 12 Selectable channels
UHF Channels 14-69
Cable channels 54-65 (including popular CATV channel 59) | | Tuning | Two rotary dials | | Antenna | SMA Connector | | Video Output | RCA x1 | | Audio Output | RCA x1 | | Power Requirements | 9-12 VDC (12 VDC for battery) | | Power Consumption | 180mA | | Operating Temperature | 32 - 122°F (0 - 50°C) | | Dimensions (WxHxD) | 2.7 x 1 x 3" (68.6 x 25.4 x 76.2mm) | | Weight | 2.1 oz (60 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 3.0 x 3.0 x 1.0" |
