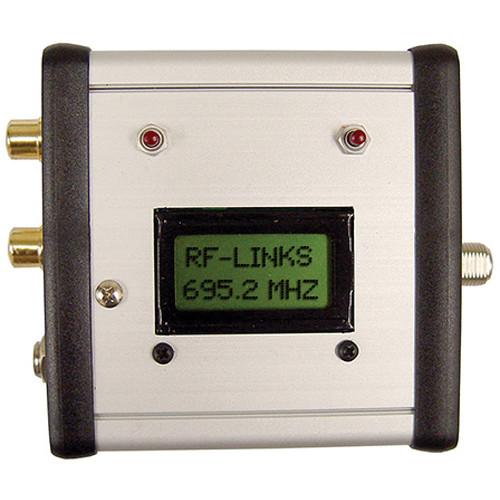

Product description The RF-Video ML-1000LCD is a digitally controlled diversity audio/video receiver compatible with any UHF TV transmitter. It can pick-up any TV channel in UHF AIR BAND from CH2 to CH69 as well as cable channels. It operates within the 42 - 1000 MHz frequency bands over long range distances.
A 9 - 12 VDC power supply (sold separately) is required. This receiver has a special diversity circuit to boost signal reception and offers two separate antenna inputs. In the Box RF-Links ML-1000LCD Special Diversity Audio/Video Receiver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links ML-1000LCD Special Diversity Audio Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links ML-1000LCD Specs | Input Frequency | 42 - 1000 MHz, off air channels 2-69 | | Sensitivity | -86 dBm | | Noise Figure | VHF: 7 dB
UHF: 10 dB | | Image Rejection | VHF: 63 dB
UHF: 50 dB | | Input Impedance | 75 ohms | | Video | Output Level: 1.0 Vp-p, NTSC/PAL
Output Mode: Standard negative sync
Panel Control: Not specified by manufacturer
Output Impedance: 75 ohms
Differential Gain: Less than 5%
Differential Phase: Less than 5°
L/C Delay: ±50 nSec max | | Audio | Output Level: 300 mV rms nominal
Panel Control: ± 10 dB
Output Impedance: < 500 ohms
Frequency Response: 25 Hz - 16 kHz | | Power Input | 12 VDC @ 280 mA, 7.5 VDC @ 300 mA | | Temperature | 32 to 122°F (0 to 50°C) | | Dimensions | 2.8 x 2.4 x 0.75" ( 7.1 x 6.1 x 1.9 cm) | | Weight | 12 oz (340 g) |
