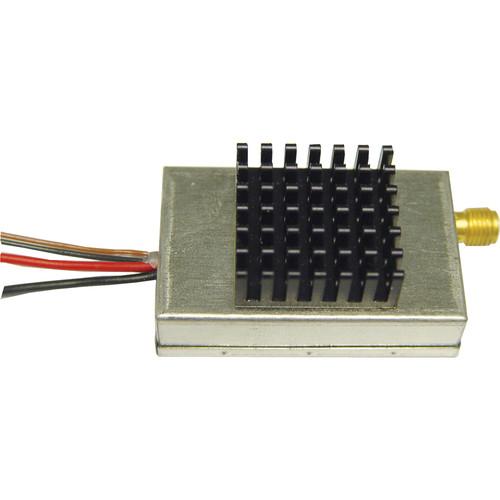

User Manual for RF-Links MX-1700D 12 12V Audio Video Transmitter Click to enlarge the picture
Contents of the user manual for the RF-Links MX-1700D 12 12V Audio Video
- Product category: Wireless Transmission Systems RF-Links
- Brand: RF-Links
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RF-Links Wireless Transmission Systems
|
User manual for the RF-Links MX-1700D 12 12V Audio Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RF-Links product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RF-Links user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RF-Links product will considerably shorten its lifespan!
|
Product description This 12V version of the MX-1700D/12 from RF-Video is a 1.7GHz audio and video transmitter designed for military applications in extremely low or high temperatures. It features 8 on board selectable channels and offers 500mW of RF power allowing a 3 mile range over the air. Up to 8 systems can be used in the same area simultaneously. - Key Features
-
- -40°F to 167°F temperature range
- 1700MHz - 1850MHz operating frequencies
- Works on 12V DC power
- SMS antenna connector
- RCA F video connector
- WFM modulation
- 2% video distortion
- Matching Receivers
-
- VRX-1700
- VRX-1700T
- VRX-17LD with LCD display (supports 1700MHz - 2100MHz)
- RMX-2000 with LCD display (supports 900MHz - 2000MHz)
- RX-2000LCD TV Receiver (supports 1700MHz - 2000MHz)
In the Box RF-Links MX-1700D/12 12V Audio / Video Transmitter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links MX-1700D 12 12V Audio Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links MX-1700D/12 Specs | Operating Frequencies | 1700 - 1850 MHz | | Transmission Type | FM, Crystal referenced, synthesized phase locked loop. Frequency controlled by microprocessor. | | Frequency Stability | ± 0.003% | | DC Voltage | 12 V DC | | RF Power | 500 mW | | Spurious & Harmonic Response | < 50 dBc | | Minimum Required Voltage | 5 V | | Battery Power | 6 V | | Video Distortion | 2% | | Maximum Range | 3 miles (5 km) over the air | | Video Format | PAL, NTSC | | Current Consumption | 450 mA / 6 V | | Antenna | N/A | | Antenna Connector | SMA | | Audio Modulation Type | FM
Maximum Deviation: ± 75 kHz
System Signal to Noise Ratio at 50 kHz Deviation: 65 dBA
Pre & De-emphasis: 75µ Second | | Impedance | 50 ohms | | Video Connector | RCA F | | Video Impedance | 75 ohms | | Video Level | 1 V | | Video Deviation | ± 6 MHz (adjustable from ±1 to ±5 MHz) | | Audio Level | 2 mV | | Microphone Input Level | Full gain to minimum gain: -37 dB to -6 dB for ± 50 kHz deviation (5 mV) | | Microphone Input Impedance | 2 k Ohms | | Power for Electret Microphones (Switchable) | +9 VDC @ 1 mA max. | | Line Input | Full gain to minimum gain: -4 dB to +22 dB for ± 75 kHz deviation | | Line Input Impedance | 10 k Ohms | | Frequency Response | At 20 dB below full deviation: 40 Hz to 15 kHz +1, -3 dB, 60 Hz to 10 kHz ± 1 dB (Option: may be extended to -3 @ 30 kHz) | | Total Harmonic Distortion | Before limiting: 0.5% at 400 Hz (0.25% typical) | | Audio Carrier Offset from Video | 6.0 MHz | | Temperature Range | -40 to 167°F (-40 to 75°C) | | Dimensions | 1.7 X 1 X 0.3" (4.3 x 2.5 x 0.8 cm) | | Weight | 0.88 oz (25 g) |
