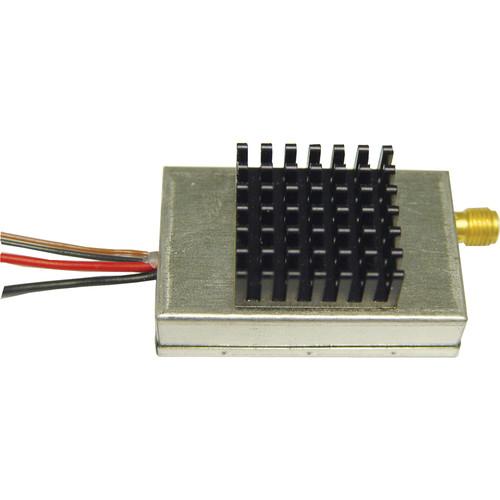

Product description This 6V version of the MX-1700D/6 from RF-Video is a 1.7GHz audio and video transmitter designed for military applications in extremely low or high temperatures. It features 8 on board selectable channels and offers 500mW of RF power allowing a 3 mile range over the air. Up to 8 systems can be used in the same area simultaneously. - Key Features
-
- -40°F to 167°F temperature range
- 1700MHz - 1850MHz operating frequencies
- Works on 6V DC power
- SMS antenna connector
- RCA F video connector
- WFM modulation
- 2% video distortion
- Matching Receivers
-
- VRX-1700
- VRX-1700T
- VRX-17LD with LCD display (supports 1700MHz - 2100MHz)
- RMX-2000 with LCD display (supports 900MHz - 2000MHz)
- RX-2000LCD TV Receiver (supports 1700MHz - 2000MHz)
In the Box RF-Links MX-1700D/6 6V Audio / Video Transmitter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RF-Links MX-1700D 6 6V Audio Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRF-Links MX-1700D/6 Specs | Operating Frequencies | 1700 - 1850 MHz | | Transmission Type | FM, Crystal referenced, synthesized phase locked loop. Frequency controlled by microprocessor. | | Frequency Stability | ± 0.003% | | DC Voltage | 6 V DC | | RF Power | 500 mW | | Spurious & Harmonic Response | < 50 dBc | | Minimum Required Voltage | 5 V | | Battery Power | 6 V | | Video Distortion | 2% | | Maximum Range | 3 miles (5 km) over the air | | Video Format | PAL, NTSC | | Current Consumption | 450 mA / 6 V | | Antenna | N/A | | Antenna Connector | SMA | | Audio Modulation Type | FM
Maximum Deviation: ± 75 kHz
System Signal to Noise Ratio at 50 kHz Deviation: 65 dBA
Pre & De-emphasis: 75µ Second | | Impedance | 50 ohms | | Video Connector | RCA F | | Video Impedance | 75 ohms | | Video Level | 1 V | | Video Deviation | ± 6 MHz (adjustable from ±1 to ±5 MHz) | | Audio Level | 2 mV | | Microphone Input Level | Full gain to minimum gain: -37 dB to -6 dB for ± 50 kHz deviation (5 mV) | | Microphone Input Impedance | 2 k Ohms | | Power for Electret Microphones (Switchable) | +9 VDC @ 1 mA max. | | Line Input | Full gain to minimum gain: -4 dB to +22 dB for ± 75 kHz deviation | | Line Input Impedance | 10 k Ohms | | Frequency Response | At 20 dB below full deviation: 40 Hz to 15 kHz +1, -3 dB, 60 Hz to 10 kHz ± 1 dB (Option: may be extended to -3 @ 30 kHz) | | Total Harmonic Distortion | Before limiting: 0.5% at 400 Hz (0.25% typical) | | Audio Carrier Offset from Video | 6.0 MHz | | Temperature Range | -40 to 167°F (-40 to 75°C) | | Dimensions | 1.7 X 1 X 0.3" (4.3 x 2.5 x 0.8 cm) | | Weight | 0.88 oz (25 g) |
